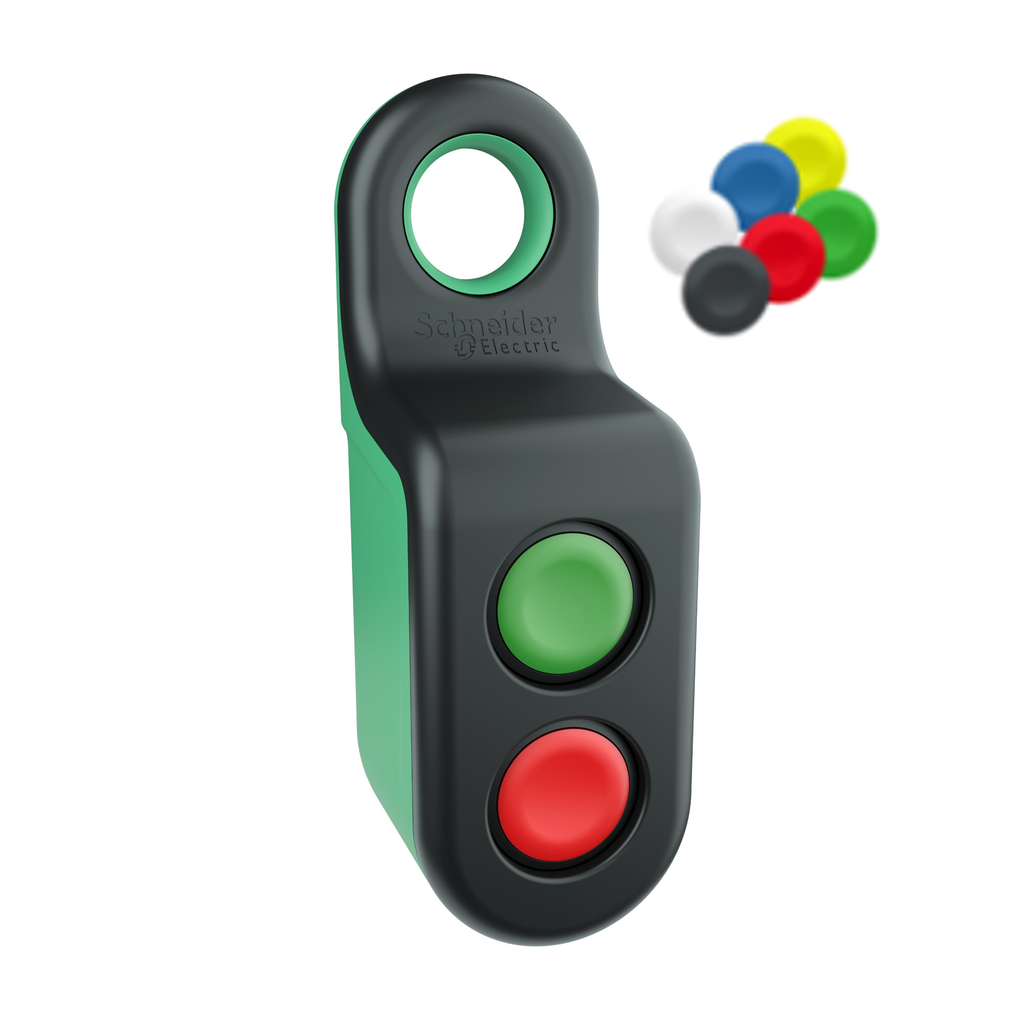

wireless and battery less handy box, 1 simple action and 1 double action buttons

• Range Of Product: Harmony XB5R
• Bezel Material: plastic
• Contact Operation: 1 simple and double action UP/DOWN push-buttons
• Mounting Diameter: 22 mm
• Product Or Component Type: wireless and batteryless transmitter
• Device Short Name: XB5R
• Fixing Collar Material: plastic

Complementary

• Mechanical Robustness: free fall resistance 1000 mm EN/IEC 60068-2-32
• Operator Additional Information: set of caps
• Operating Force: 25 N C/O changing electrical state
• Maximum Sensing Distance: 100 m in free field || 25 m transmitter in the handy box and receiver in a metal enclosure || 300 m transmitter in the handy box, receiver in metal enclosure and use relay-antenna
• Operating Travel: 4.3 mm total travel)
• Mechanical Durability: 400000 cycles
• Type Of Operator: spring return push-button with transmitter
• Acquisition Time: 2 ms
• Communication Port Protocol: Zigbee green power 2.4 GHz
• Operator Profile: flush
• Kit Composition: 1 transmitter || 1 set of caps || 1 handy box || 2 push-button head 22 mm || 2 fixing collars
• Shock Resistance: 25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Shape Of Signaling Unit Head: round
• Response Time: < 2 ms
• Emission Power: 3 mW
• Net Weight: 0.2 kg

Offer Sustainability

• China Rohs Regulation: X
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Product Certifications: UL || EAC || CSA || BT 2006/95/EC || CCC || C-tick
• Ik Degree Of Protection: IK03 IEC 50102
• Ambient Air Temperature For Operation: -25-55 °C
• Directives: 1999/5/EC - R&TTE directive || 2004/108/EC - electromagnetic compatibility
• Ambient Air Temperature For Storage: -40-70 °C
• Relative Humidity: 95-95 % 70-70 °C without condensation
• Standards: EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-1 || CSA C22.2 No 14
• Electromagnetic Compatibility: electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electrostatic discharge immunity test 4 kV on contact (on metal parts)) IEC 61000-4-2 || susceptibility to electromagnetic fields 20 V/m 80...3000 MHz) IEC 61000-4-3 || susceptibility to electromagnetic fields 6 V/m 3000...6000 MHz, distance = 20 m) IEC 61000-4-3
• Radio Agreement: RSS UL 508 || ARIB T66 CSA C22.2 No 14 || ICASA || ANATEL || FCC
• Vibration Resistance: 5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
• Ip Degree Of Protection: IP65 IEC 60529 front face) || IP65 UL Type 12 front face)
