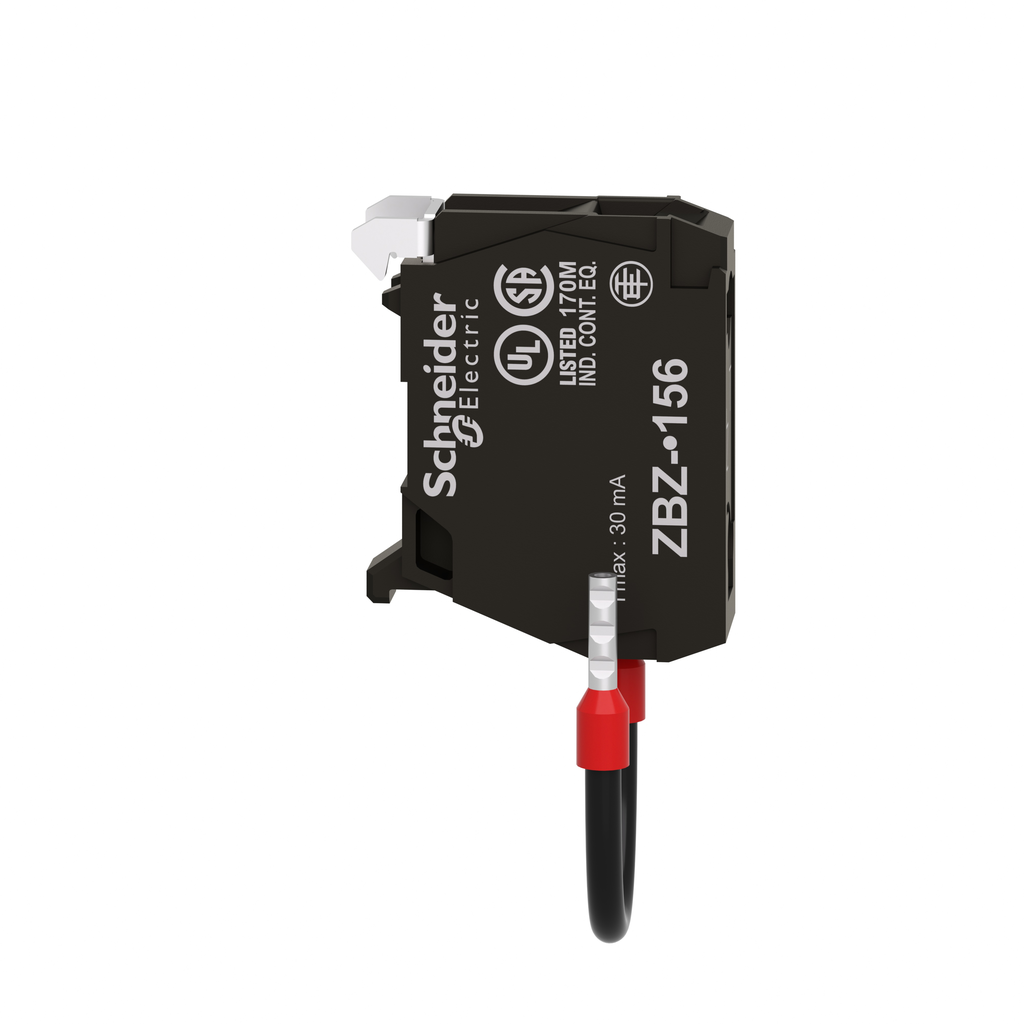

Single block for test light function, Harmony XB4, 12 and 24V AC DC, 24…120V AC DC

• Range Of Product: Harmony XB4 || Harmony XB5
• Light Block Type: single block for test light function
• Electrical Connection: 1 wire
• Product Or Component Type: block for test light
• Product Compatibility: integral LED || BA 9s
• [Us] Rated Supply Voltage: 12 V AC/DC || 24 V AC/DC || 24...120 V AC/DC

Contractual warranty

• Warranty: 18 months

Complementary

• Electrical Shock Protection Class: class I Harmony XB4 IEC 60536 || class II Harmony XB5 IEC 60536
• Material: plastic
• Net Weight: 0.01 kg

Offer Sustainability

• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1808008EN
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1808008EN
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environment

• Product Certifications: LROS (Lloyds register of shipping) || UL Listed || DNV || BV || CSA || GL
• Ambient Air Temperature For Operation: -25-70 °C
• Ambient Air Temperature For Storage: -40-70 °C
• Standards: UL 508 || EN 60947-5-5 || EN 60947-1 || EN 60947-5-4 || IEC 60947-5-1 || IEC 60947-5-5 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-1 || EN 60947-5-1 || JIS C 4520
• Shock Resistance: 30 gn 18 ms IEC 60068-2-27 || 50 gn 11 ms IEC 60068-2-27
• Vibration Resistance: 5 gn 2-500 Hz)IEC 60068-2-6
