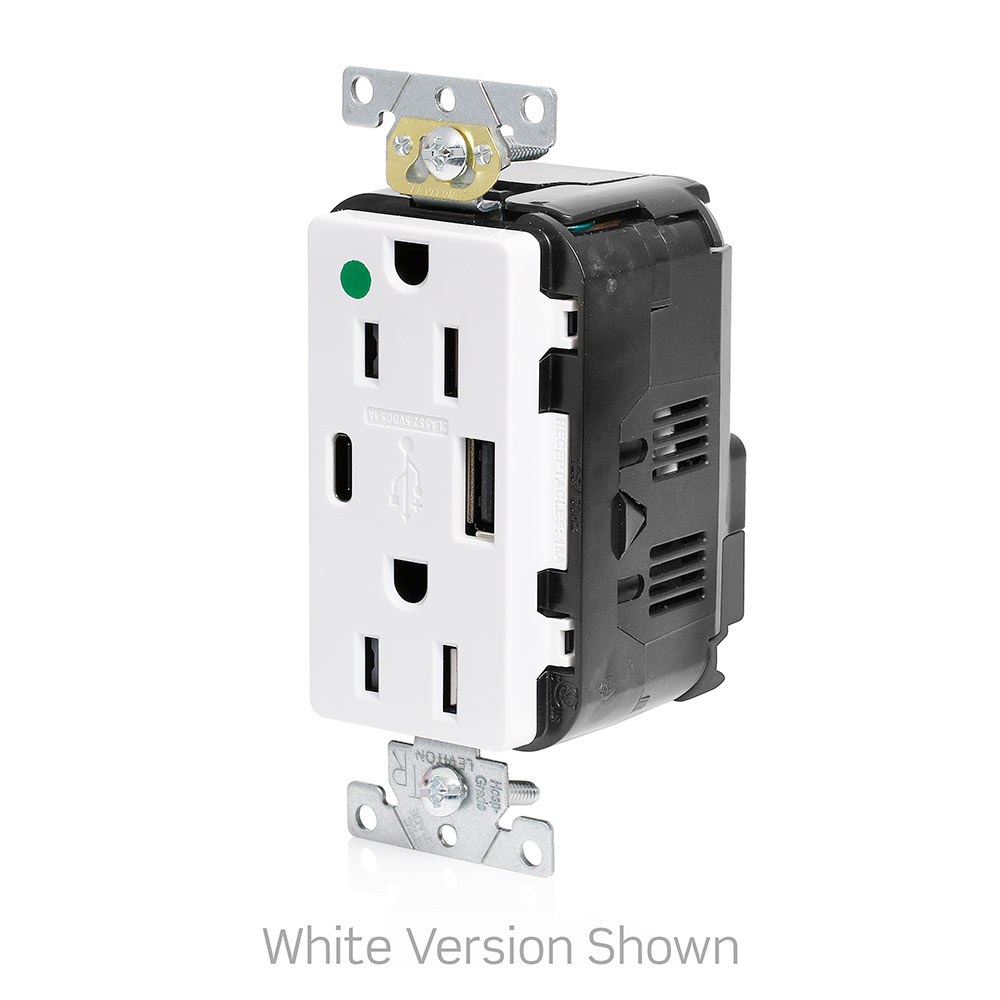

Tamper-Resistant USB Receptacle, Type A/C, 15 Amp 125 Volt, Hospital Grade, White - Lev-Lok

• Lev-Lok employs a simple twist and lock wiring module to provide a safe and secure connection. These devices are pre-wired for 3x faster installations and 5x faster swap outs than traditional wiring. The speed and ease of Lev-Lok allows for optimal time, labor, and cost savings. The M56AC:
• One Type A and one Type C USB port with a combined total of 5.1A of charging power, the fastest in the industry
• Type A USBs are the most recognized and commonly used USB port, used in most desktops, laptops, and tablets, while Type C USBs are emerging as the latest standard for charging and transferring data
• Common applications: health care facilities, lobbies & waiting rooms, airports, hospitality, and educational institutions
• For use with MSTWL Lev-Lok wiring modules only, modules sold separately

NEMA

• WD-1 and WD-6

Patents

• CA2621644
• CA2624409
• CA2655707
• CA2667092
• CA2677283
• CN200880004760.2
• MX338817
• US7355117
• US7357652
• US7666010
• US7820909
• US7868719
• US8096818
• US8242362
• US9368982
• US9496726

Color Variations

• Black
• Brown
• Gray
• Ivory
• Light Almond
• Red
• White

• Country of Origin: China

Electrical Specifications

• Amperage: 15 A
• Current Interrupting: Certified for full-rated current and voltage
• Dielectric Voltage: 2000 VAC
• Grounding: Self-Grounding
• Horsepower Rating: 1/2 hp
• Pole: 2
• Temperature Rise: Max 30°C
• Voltage: 125 VAC
• Wire: 3

Environmental Specifications

• Flammability: Rated V-0 per UL 94
• Operating Temperature: Maximum Continuous 40°C, Minimum -10°C (w/o impact)

Material Specifications

• Body Material: PBT
• Face Material: Thermoplastic
• Ground Clips: Brass
• Ground Contacts: Brass
• Locking Pins: Solid Brass
• Mounting Screws: #6 Plated Steel
• Mounting Strap: Galvanized Steel
• Shutter Material: Thermoplastic
• Shutter Mechanism: Acetal

Mechanical Specifications

• Product ID: Ratings are marked on device
• Strap Construction: Through-Strap
• Termination: Modular

Product Features

• Brand: Lev-Lok
• Color: White
• Device Type: Combination Device
• Feature: USB Type A and USB Type C|Tamper-Resistant
• Grade: Heavy-Duty Hospital Grade

Standards & Certifications

• NEMA: WD-1 and WD-6
• Applicable Standards: UL 498, CSA C22.2, No. 42, UL 1310, UL 94, NOM, FCC Class B

USB Specifications

• Single Port Charging Power: 15W
• Total Charging Power: 25W
• USB Cable Compatible: Type A and Type C
• USB Charger: 5.1A

Warranty

• Warranty: 5-Year Limited
