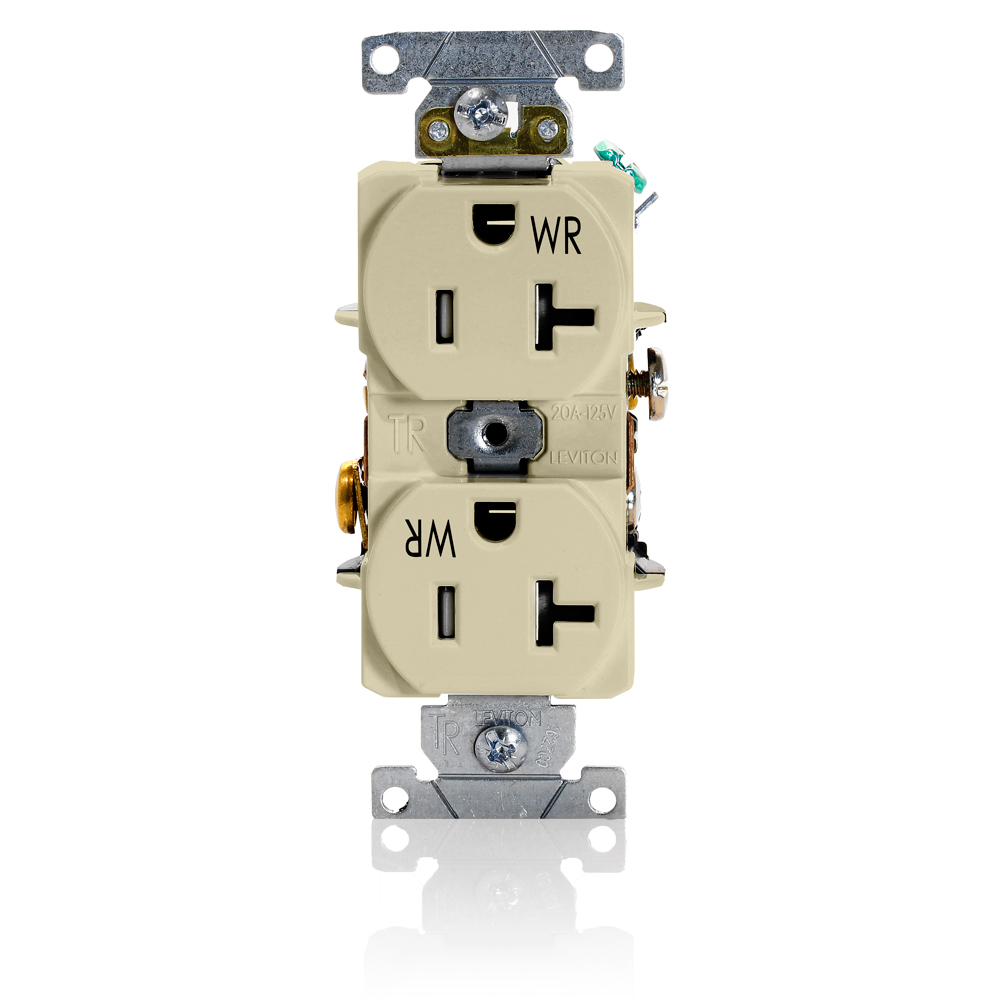

Weather- and Tamper-Resistant Duplex Receptacle, 20 Amp, 125 Volt

NEMA

• WD-1 WD-6

Patents

• CA2483480
• CA2621644
• CA2624409
• CA2677283
• CN200880004760.2
• MX257790
• MX321216
• US6743029
• US7355117
• US7820909
• US7868719
• US8242362
• US8684771

Color Variations

• Gray
• Ivory
• White
• Yellow

• Country of Origin: Mexico

AC Horsepower Ratings

• At Rated Voltage: 1 HP

Electrical Specifications

• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Self-Grounding
• Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current

Material Specifications

• Body Material: Nylon
• Clamp Nuts: Zinc-Plated Steel
• Face Material: Nylon
• Ground Clips: Nickel-Plated Brass
• Grounding Screw: Nickel-Plated Brass
• Line Contacts: Nickel-Plated Brass Triple-Wipe .040 Thick
• Mounting Screws: Stainless Steel
• Shutter Mechanism: Delrin® Acetal
• Strap Material: Nickel Plated Brass
• Terminal Screws: Nickel-Plated Brass 10-32

Product Features

• Color: Ivory
• Device Type: Duplex Receptacle Outlet
• Feature: Weather and Tamper-Resistant|Smooth Face
• Grade: Heavy-Duty Industrial Specification Grade

Mechanical Specifications

• Product ID: Ratings permanently marked on device
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Back or Side Wire

Standards and Certifications

• NEMA: WD-1 WD-6
• ANSI: C-73
• CSA C22.2 No. 42: File 152105
• NOM: 057
• UL 498: File E13399
• Warranty: 2-Year Limited
