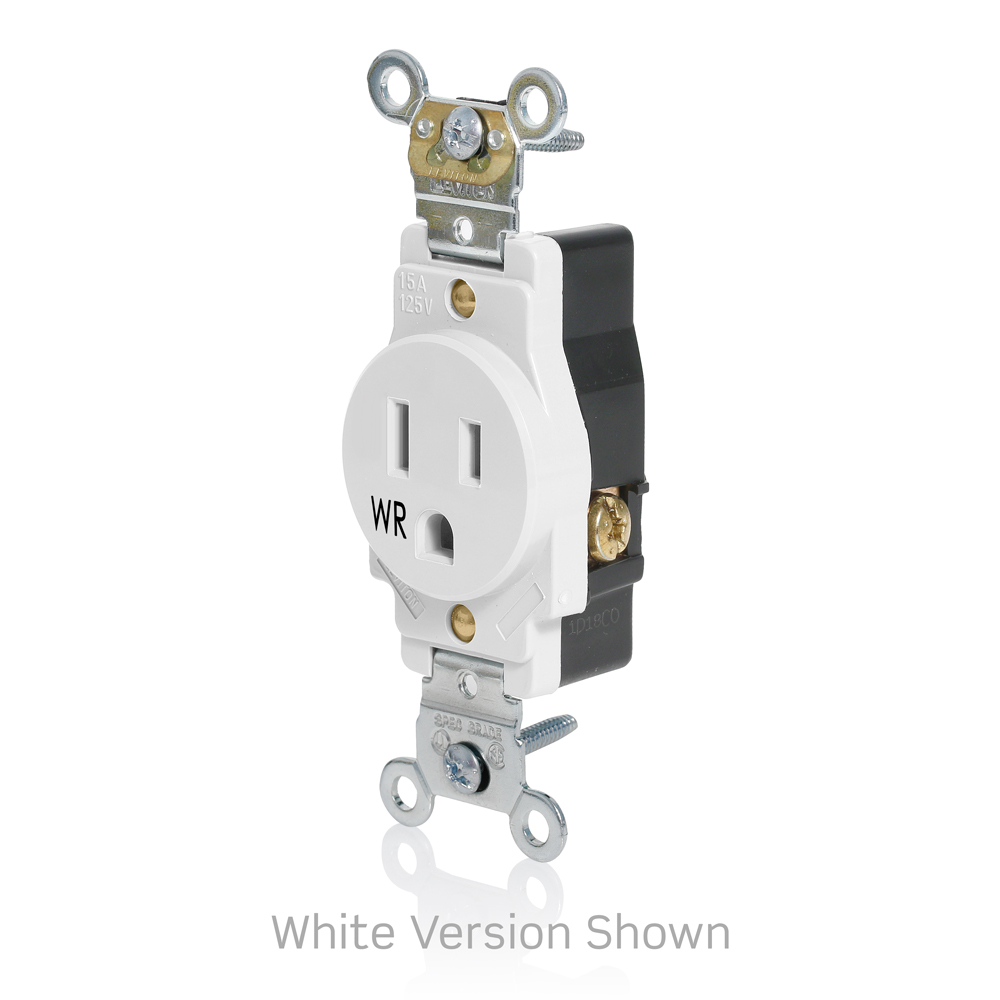

Weather-Resistant Single Receptacle, 15 Amp, 125 Volt

NEMA

• WD-1 and WD-6

Color Variations

• Brown

• Country of Origin: Mexico

Electrical Specifications

• Amperage: 15 A
• Current Interrupting: Certified for full-rated current and voltage
• Dielectric Voltage: 2000 VAC
• Grounding: Self-Grounding
• Horsepower Rating: 1/2 HP
• Pole: 2
• Temperature Rise: Max 30°C
• Voltage: 125 VAC
• Wire: 3

Environmental Specifications

• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 75°C

Material Specifications

• Body Material: Nylon
• Face Material: Nylon
• Ground Clips: Brass
• Ground Contacts: Brass
• Grounding Screw: #8 Brass
• Line Contacts: Brass Triple Wipe 0.031"
• Mounting Screws: #6 Stainless Steel
• Mounting Strap: Nickel-Plated Steel
• Terminal Clamps: Brass
• Terminal Screws: #10 Brass

Mechanical Specifications

• Product ID: Ratings are permanently marked on device
• Screw Terminal Torque: 14-18 in-lbs
• Termination: Back and Side Wire
• Wire Gauge: #14-#10 AWG Solid or Stranded

Product Features

• Device Type: Single Receptacle Outlet
• Feature: Weather Resistant, Smooth Face, RoHS Compliant
• Grade: Heavy-Duty Industrial Specification Grade

Standards & Certifications

• NEMA: WD-1 and WD-6
• Standards and Certifications: UL 948, CSA C22.2 no. 42, Fed Spec WC-596, NOM

Warranty

• Warranty: 10-Year Limited
