Product Description
- Leviton’s 250 Volt Tamper-Resistant Receptacles are the industry’s first and only solution to the revisions of the NEC Article 406.12! These weather-resistant single receptacles also provide compliance for Article 406.9 of the National Electrical Code (NEC) for wet and damp locations and include added protection against corrosion, UV degradation and cold impact damage.

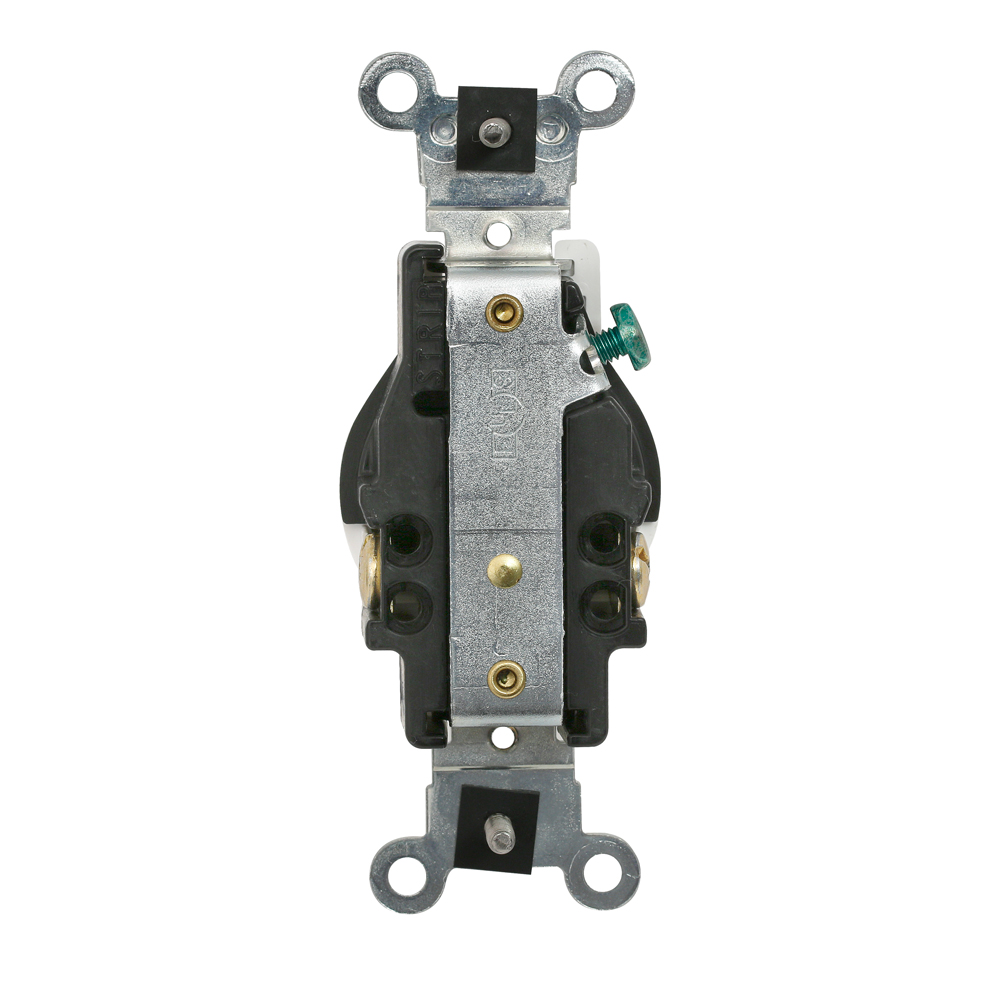

- Accommodates back and side wiring
- Nickel-plated steel strap maximizes corrosion resistance
- Brass-self grounding clip is permanently staked on for secure and reliable performance
- Common applications: education facilities, commercial buildings, health care facilities, hospitality, and multiple dwelling units (MDUs)
Patents
- CA3060123
- US10559909
Color Variations
- Black
- Brown
- Ivory
- Light Almond
- White
- Yellow
- Country of Origin: Mexico
Electrical Specifications
- Amperage: 20 A
- Dielectric Voltage: 2000 VAC
- Grounding: Self-Grounding
- HP Rating: 2 HP
- Pole: 2
- Temperature Rise: Max 30 C
- Voltage: 250 VAC
- Wire: 3
Environmental Specifications
- Flammability: Rated V-2 per UL 94
- Operating Temperature: Maximum Continuous 75°C, minimum -40°C (w/o impact)
Material Specifications
- Body Material: Nylon
- Face Material: PBT
- Ground Contacts: Phosphor Bronze
- Grounding Screw: #8 Brass
- Line Contacts: Brass Triple Wipe 0.040"
- Mounting Screws: #6 Stainless Steel
- Mounting Strap: Nickel-Plated Steel
- Tamper Resistant Shutter Mechanism: Thermoplastic
- Terminal Clamps: Brass
- Terminal Screws: #10 Brass
Mechanical Specifications
- Product ID: Ratings are Marked on Device
- Screw Terminal Torque: 10-14 in-lbs
- Terminal Accom.: #14-#10 AWG Solid or Stranded
- Termination: Back & Side Wire
Product Features
- Color: White
- Device Type: Single Receptacle Outlet
- Feature: Weather- and Tamper-Resistant | Smooth Face | RoHS Compliant
- Grade: Heavy-Duty Industrial Specification Grade
- NEMA: 6-20R
Standards & Certifications
- NEMA Rating: WD-1 and WD-6
- Standards and Certifications: UL 498; CSA C22.2, No. 42; Fed Spec WC-596; NOM
Warranty
- Warranty: 10-Year Limited
