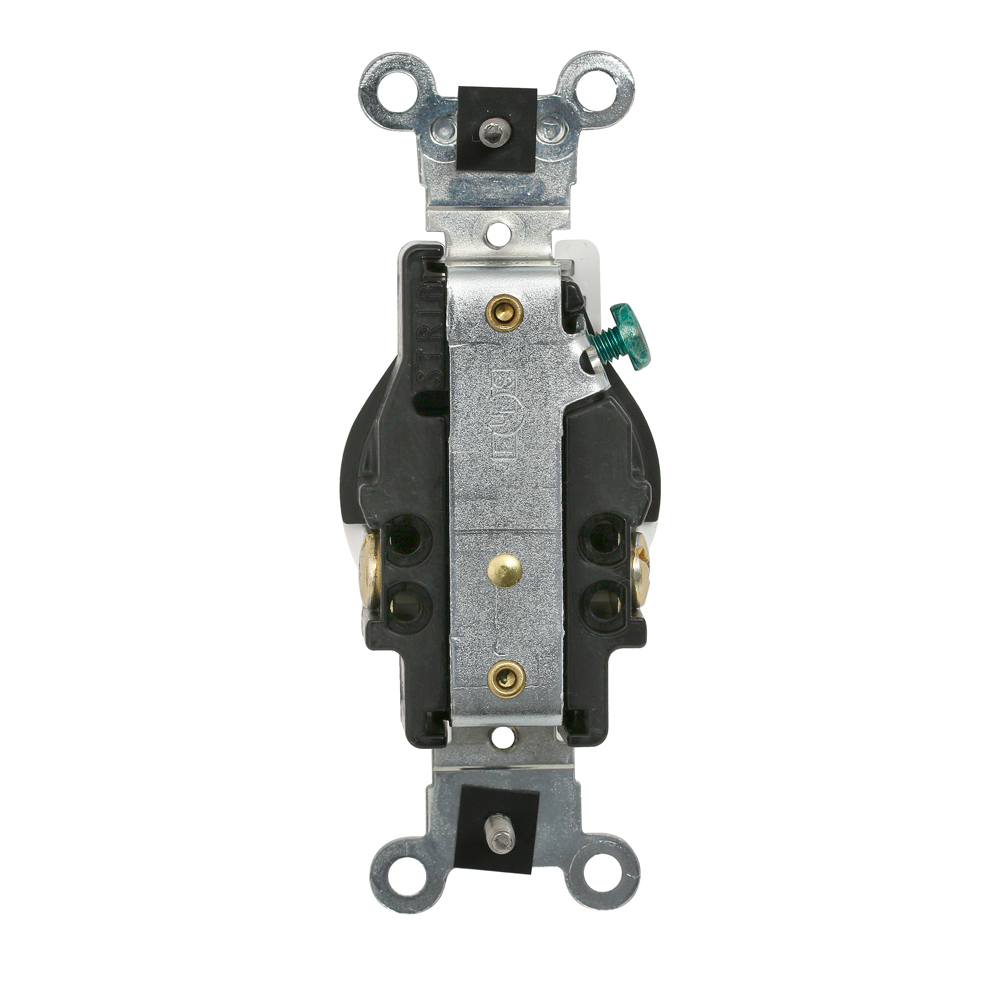

Weather- and Tamper-Resistant Single Receptacle, 15 Amp 250 Volt, Yellow

• Leviton’s 250 Volt Tamper-Resistant Receptacles are the industry’s first and only solution to the revisions of the NEC Article 406.12! These weather-resistant single receptacles also provide compliance for Article 406.9 of the NEC for wet and damp locations and include added protection against corrosion, UV degradation and cold impact damage.
• Accommodates back and side wiring
• Nickel-plated steel strap maximizes corrosion resistance
• Brass-self grounding clip is permanently staked on for secure and reliable performance
• Common applications: education facilities, commercial buildings, health care facilities, hospitality, and multiple dwelling units (MDUs)

Patents

• CA3060123
• US10559909

Color Variations

• Black
• Brown
• Ivory
• Light Almond
• White
• Yellow

• Country of Origin: Mexico

Electrical Specifications

• Amperage: 15 A
• Dielectric Voltage: 2000 VAC
• Grounding: Self-Grounding
• HP Rating: 1-1/2 HP
• Pole: 2
• Temperature Rise: Max 30 C
• Voltage: 250 VAC
• Wire: 3

Environmental Specifications

• Flammability: Rated V-2 per UL 94
• Operating Temperature: Maximum Continuous 75°C, minimum -40°C (w/o impact)

Material Specifications

• Body Material: Nylon
• Face Material: PBT
• Ground Contacts: Phosphor Bronze
• Grounding Screw: #8 Brass
• Line Contacts: Brass Triple Wipe 0.040"
• Mounting Screws: #6 Stainless Steel
• Mounting Strap: Nickel-Plated Steel
• Tamper Resistant Shutter Mechanism: Thermoplastic
• Terminal Clamps: Brass
• Terminal Screws: #10 Brass

Mechanical Specifications

• Product ID: Ratings are Marked on Device
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: #14-#10 AWG Solid or Stranded
• Termination: Back & Side Wire

Product Features

• Color: Yellow
• Device Type: Single Receptacle Outlet
• Feature: Weather- and Tamper-Resistant | Smooth Face | RoHS Compliant
• Grade: Heavy-Duty Industrial Specification Grade
• NEMA: 6-15R

Standards & Certifications

• NEMA Rating: WD-1 and WD-6
• Standards and Certifications: UL 498; CSA C22.2, No. 42; Fed Spec WC-596; NOM

Warranty

• Warranty: 10-Year Limited
