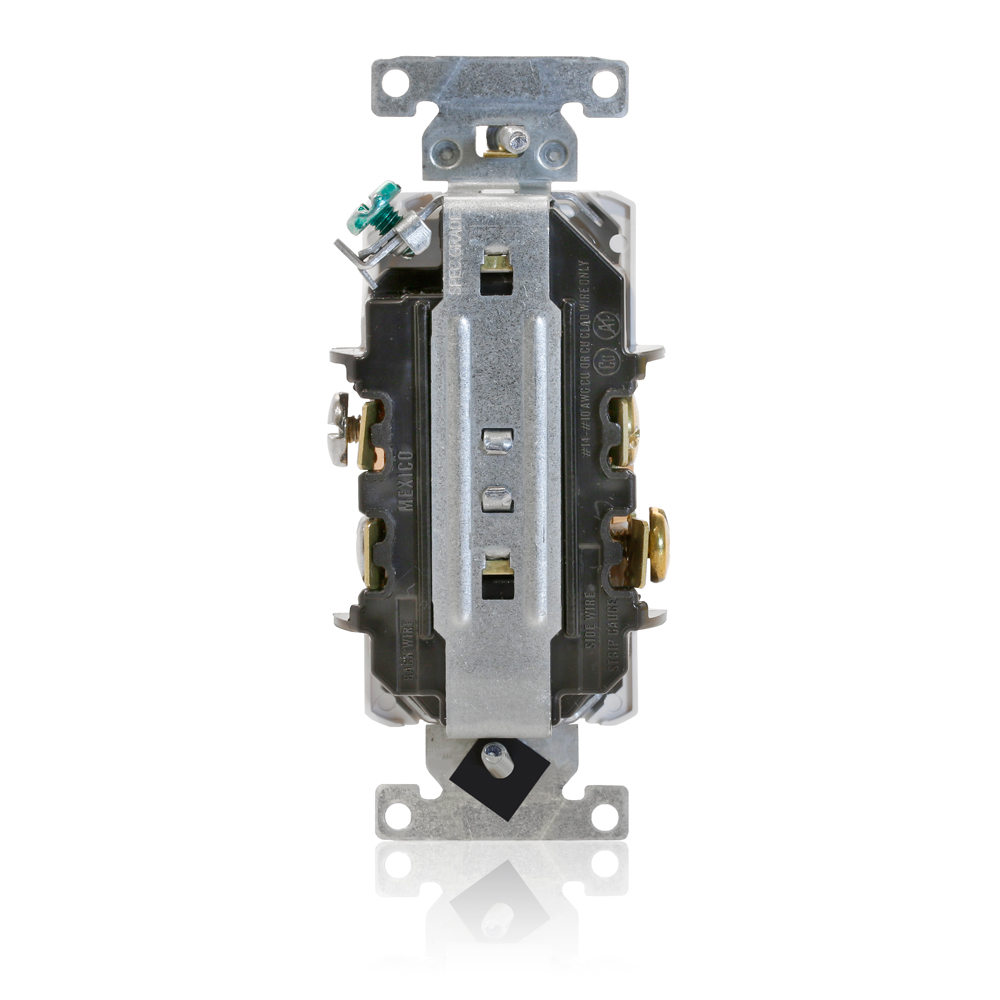

Weather- and Tamper-Resistant Duplex Receptacle, 15 Amp, 125 Volt

Patents

• CA2483480
• CA2621644
• CA2624409
• CA2677283
• CN200880004760.2
• MX257790
• MX321216
• US6743029
• US7355117
• US7820909
• US7868719
• US8242362
• US8684771

• Country of Origin: Mexico

AC Horsepower Rating

• Horsepower Rating: 1/2 HP

Warranty

• Warranty: 10-Year Limited

Electrical Specifications

• Amperage: 15 A
• Dielectric Voltage: Withstands 3000 V minimum
• Grounding: Self-Grounding
• Pole: 2
• Temperature Rise: Max 30 °C after 250 cycles OL at 200 percent rated current
• Voltage: 125 VAC
• Wire: 3

Environmental Specifications

• Flammability: Rated V-0 per UL 94
• Operating Temperature: -40°C to 75°C

Material Specifications

• Body Material: PBT Polyester Blend
• Face Material: PBT Polyester Blend
• Ground Clips: Brass
• Ground Contacts: 0.030" Brass
• Grounding Screw: #8 hex head, triple drive Brass
• Line Contacts: 0.030" Phosphor Bronze
• Mounting Screws: Triple-Drive Plated Steel
• Strap Material: Steel
• Terminal Clamps: Brass
• Terminal Screws: #8 Triple-Drive Brass

Mechanical Specifications

• Product ID: Ratings are permanently marked on device
• Terminal Accom.: #14 AWG - #10 AWG
• Terminal ID: Brass - Hot, Green - Ground, Silver - Neutral
• Termination: Back or Side Wire
• Wire Type: Stranded or Solid
• Screw Terminal Torque: 14-18 in-lbs

Product Features

• Brand: Decora Plus
• Color: Black
• Color / Feature: Black
• Device Type: Duplex Receptacle Outlet
• Feature: Weather and Tamper-Resistant
• Feature 2: Weather and Tamper-Resistant
• Feature 4: Smooth Face
• Grade: Heavy-Duty Industrial Specification Grade

Standards & Certifications

• ANSI: C-73
• Applicable Standards: UL 498, Fed Spec W-C-596, CSA C22.2. No. 42
• Certification/Listing: cULus, NOM-ANCE
• RoHS: RoHS Compliant

Instruction Sheet

Dimensional Drawing
