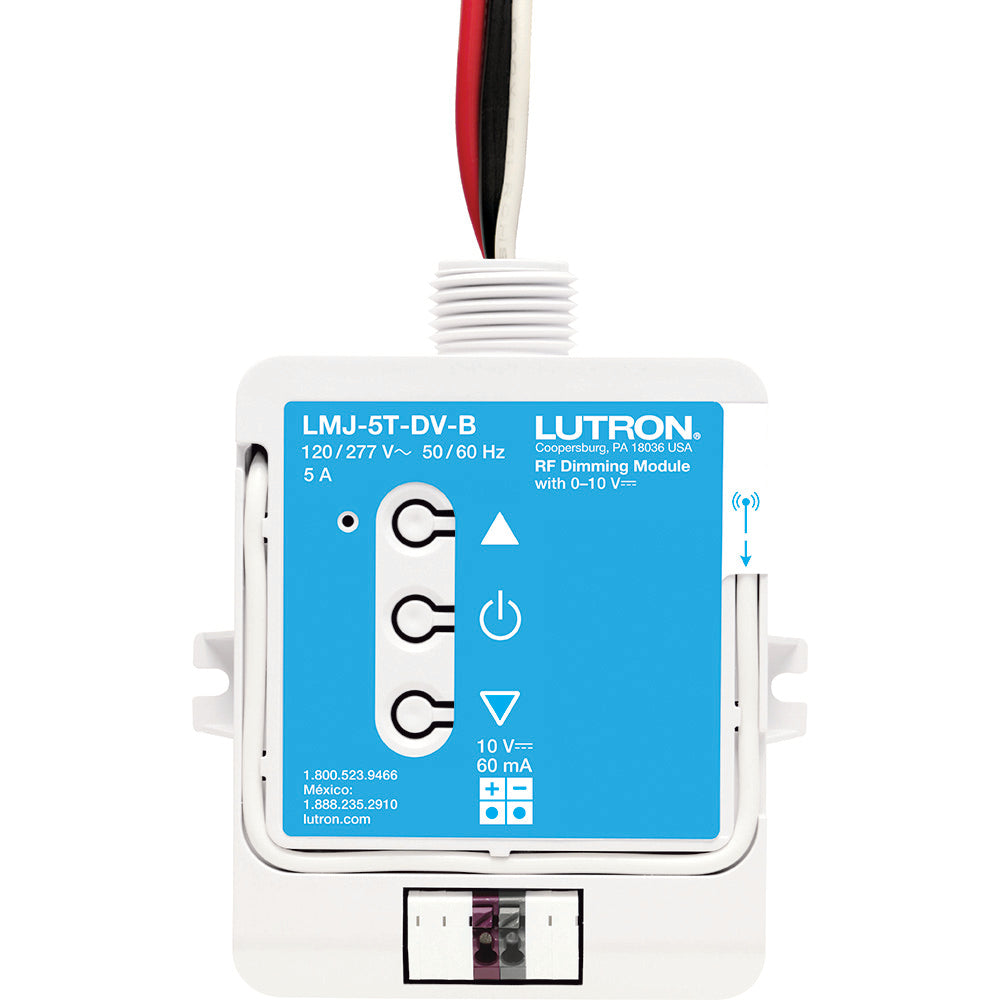

Lutron RF Dimming module Controls up to 60mA of 0-10V ballasts, or LED drivers, based on input from RadioRA 2 and HomeWorks systems, switches up to 5A

• Radio frequency (RF) control that operates 0-10 V controlled fluorescent ballasts or LED drivers based on input from RadioRA 2 and Homeworks systems. 0-10 VDC control link automatically sources or sinks up to 60 mA to third party fixtures. Switches line voltage up to 5 A. Configurable high- and low-end trim. Utilizes Lutron Clear Connect RF Technology. Mounts to an electrical junction box through a 1/2 in (21 mm trade-size) knockout opening. Complies with requirements for use in a compartment handling environmental air (plenum) per NEC 2011 300.22 (C)(3).

• Amperage Rating: 5
• Application: Lighting Control
• Brand Name: Lutron
• Color: Blue/White
• Connection: Wire Leads
• Frequency Rating: 434
• Insulation: Plastic
• Material: Plastic/Metal
• Mounting: Junction Box
• Number Of Poles: 1
• Operating Temperature: 32 to 104
• Size: 3.94 x 2.82
• Special Features: Radio frequency (RF) control that operates 0-10 V controlled fluorescent ballasts or LED drivers based on input from RadioRA 2 and Homeworks QS systems. 0-10 VDC control link automatically sources or sinks up to 60 mA to third party fixtures. Switches line voltage up to 5 A. Configurable high- and low-end trim. Utilizes Lutron Clear Connect RF Technology. Mounts to an electrical junction box through a 1/2 in (21 mm trade-size) knockout opening. Complies with requirements for use in a compartment handling environmental air (plenum) per NEC 2011 300.22 (C)(3).
• Standard: UL, FCC, CSA, IC, NOM
• Type: Dimming module for 0-10 VDC control, RF
• Voltage Rating: 120 to 277
• Wattage: 600
