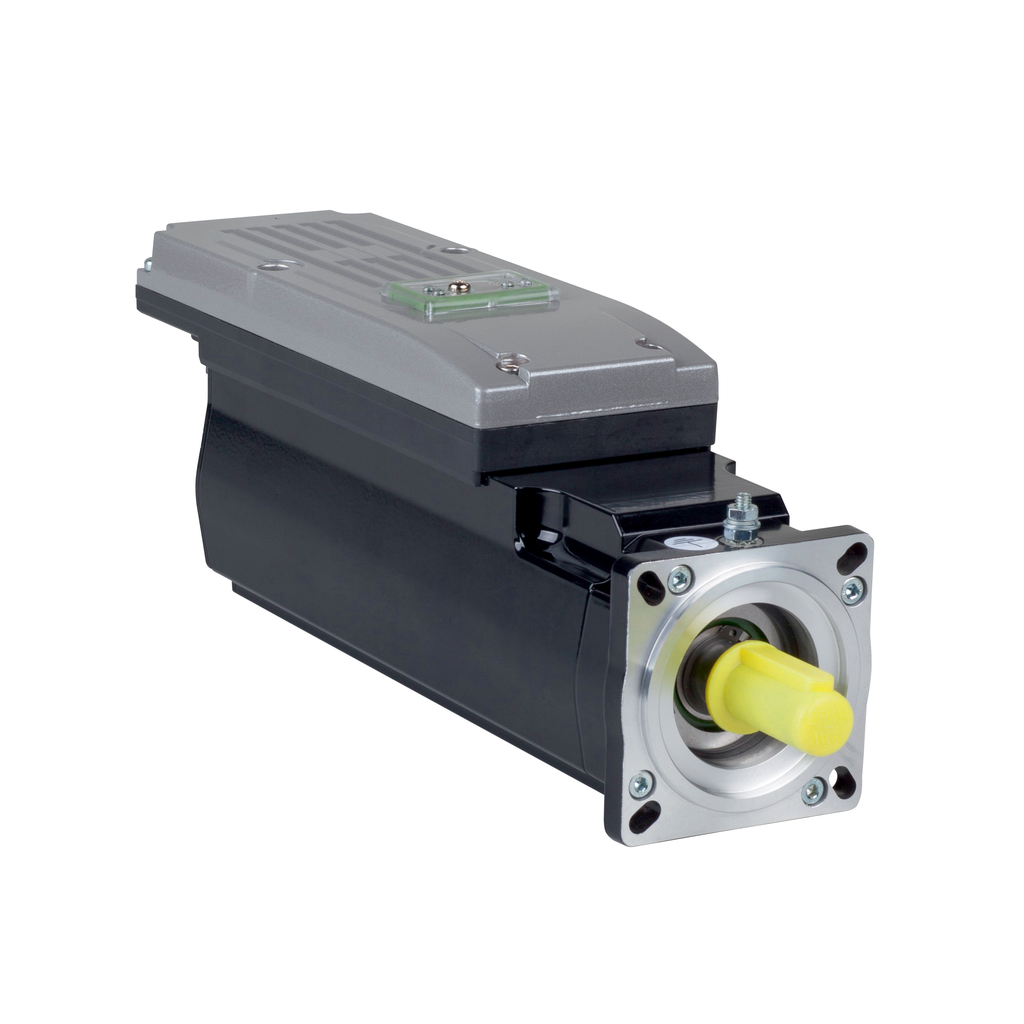

integrated servo motor - 2.2 Nm - 6000 rpm - without brake

• Range Of Product: PacDrive 3
• Product Or Component Type: servo motor integrated drive
• Device Short Name: ILM

Contractual warranty

• Warranty: 18 months

Complementary

• Circle Diameter Of The Mounting Holes: 82 mm
• Maximum Radial Force Fr: 730 N 1000 rpm || 580 N 2000 rpm || 510 N 3000 rpm || 460 N 4000 rpm || 430 N 5000 rpm || 400 N 6000 rpm
• Mounting Support: international standard flange
• Nominal Torque: 1.15 N.m
• Number Of Motor Stacks: 3
• Rotor Inertia: 0.58 kg.cm²
• Number Of Motor Poles: 6
• Back Emf Constant: 49 V/krpm 20 °C
• Continuous Stall Torque: 2.2 N.m
• Maximum Axial Force Fa: 0.2 x Fr
• Centring Collar Depth: 2.5 mm
• Holding Brake: without
• Speed Feedback Resolution: 128 periods
• Second Shaft: without second shaft end
• Shaft Length: 30 mm
• Nominal Output Power: 720 W
• Length: 259 mm
• Net Weight: 4.2 kg
• Centring Collar Diameter: 60 mm
• Stator Inductance: 13 mH 20 °C Ph/Ph || 6.5 mH 120 °C Ph/N
• Maximum Current Irms: 12 A
• Motor Flange Size: 70 mm
• [Us] Rated Supply Voltage: 250...700 V
• Number Of Mounting Holes: 4
• Shaft Diameter: 14 mm
• Key Width: 20 mm
• Mounting Holes Diameter: 5.5 mm
• Type Of Cooling: natural convection
• Shaft End: untapped
• Nominal Speed: 6000 rpm
• Peak Stall Torque: 8.7 N.m
• Feedback Type: absolute single turn SinCos Hiperface
• Stator Resistance: 2.7 Ohm 20 °C Ph/Ph || 1.88 Ohm 120 °C Ph/N
• Line Rated Current: 1.5 A
• Continuous Stall Current: 3 A
• Torque Constant: 0.76 N.m/A 120 °C

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1409011EN
• Sustainable Offer Status: Green Premium product
• Pvc Free: Yes
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1409011EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Ip Degree Of Protection: IP54
