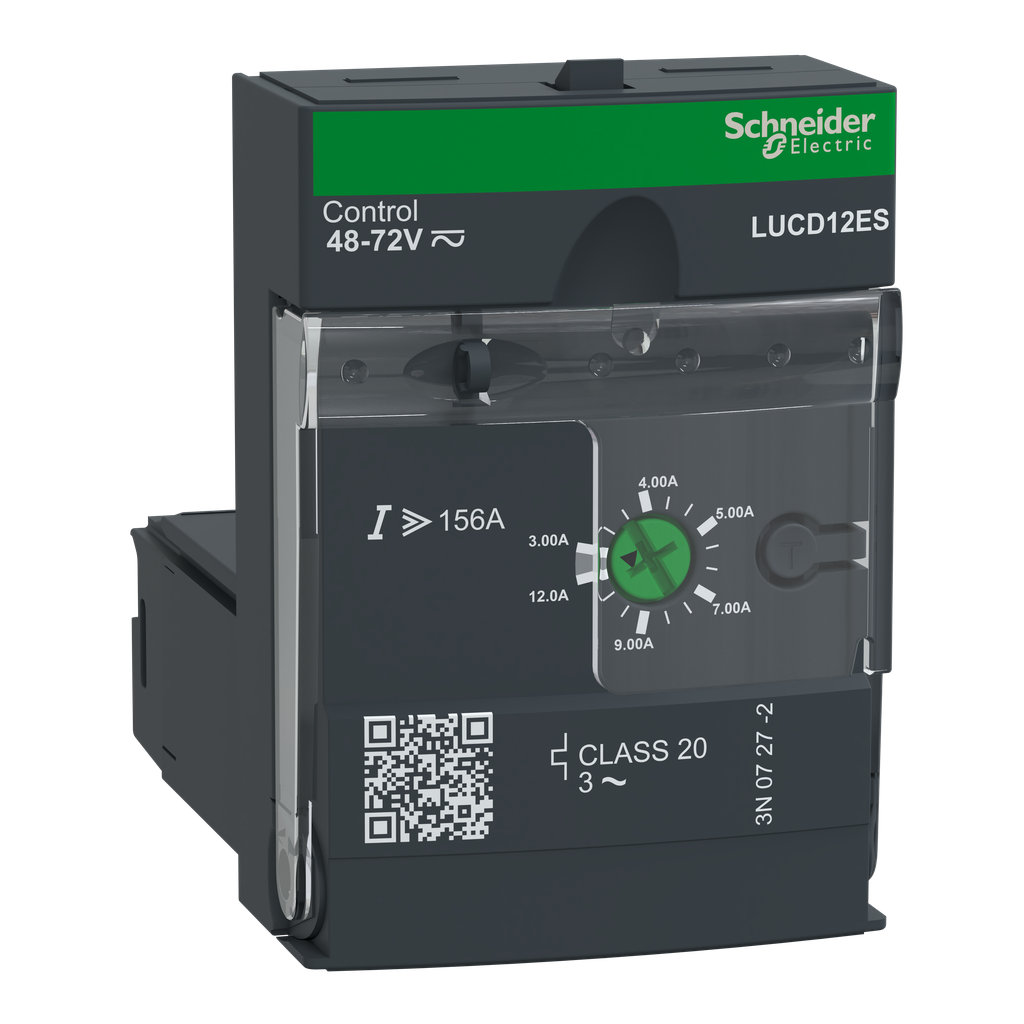

Advanced control unit, TeSys Ultra, 3A to 12A, 3P motors, protection & diagnostic, class 20, coil 48-72VAC/DC

• [Uc] Control Circuit Voltage: 48 V AC || 48...72 V DC
• [Ue] Rated Operational Voltage: 690 V AC
• Range Of Product: TeSys Ultra
• Phase Failure Sensitivity: yes
• Thermal Protection Adjustment Range: 3-12 A
• Product Or Component Type: advanced control unit
• Product Name: TeSys Ultra
• Thermal Overload Class: class 20 40-60 Hz -25-70 °C IEC 60947-6-2 || class 20 40-60 Hz -25-70 °C UL 508
• Motor Power Kw: 5.5 kW 400...440 V AC 50/60 Hz || 5.5 kW 500 V AC 50/60 Hz || 9 kW 690 V AC 50/60 Hz
• Range: TeSys
• Utilisation Category: AC-44 || AC-43 || AC-41
• Function Available: earth fault protection || protection against phase failure and phase imbalance || manual reset || protection against overload and short-circuit
• Tripping Threshold: 14.2 x Ir +/- 20 %
• Product Compatibility: power base LUB12 || power base LUB32 || power base LUB38 || power base LUB120 || power base LUB320 || power base LUB380 || reversing contactor breaker LU2B12ES || reversing contactor breaker LU2B32ES
• Product Specific Application: basic protection and advanced functions, communication
• Network Frequency: 40...60 Hz
• Load Type: 3-phase motor self-cooled
• Device Application: motor control || motor protection
• Device Short Name: LUCD

Contractual warranty

• Warranty: 18 months

Complementary

• Product Certifications: CE || UL || CSA || CCC || EAC || ASEFA || ATEX || Marine
• Height: 66 mm
• Reset: manual reset
• Fixing Mode: plug-in front face)
• [Uimp] Rated Impulse Withstand Voltage: 6 kV IEC 60947-6-2
• Standards: EN 60947-6-2 || IEC 60947-6-2 || UL 60947-4-1, with phase barrier || CSA C22.2 No 60947-4-1, with phase barrier
• Typical Current Consumption: 280 mA 48 V AC I maximum while closing with LUB12 || 280 mA 48 V AC I maximum while closing with LUB32 || 280 mA 48 V AC I maximum while closing with LUB38 || 280 mA 48...72 V DC I maximum while closing with LUB12 || 280 mA 48...72 V DC I maximum while closing with LUB32 || 280 mA 48...72 V DC I maximum while closing with LUB38 || 35 mA 48 V AC I rms sealed with LUB12 || 45 mA 48 V AC I rms sealed with LUB32 || 45 mA 48 V AC I rms sealed with LUB38 || 35 mA 48...72 V DC I rms sealed with LUB12 || 45 mA 48...72 V DC I rms sealed with LUB32 || 45 mA 48...72 V DC I rms sealed with LUB38
• [Ui] Rated Insulation Voltage: 690 V IEC 60947-6-2 || 600 V UL 60947-4-1 || 600 V CSA C22.2 No 60947-4-1
• Compatibility Code: LUCD
• Control Circuit Voltage Limits: 38.5...72 V AC 48 V in operation || 38.5...93 V DC 48...72 V in operation || 29 V AC 48 V drop-out || 29 V DC 48...72 V drop-out
• Operating Time: 35 ms opening with LUB12 control circuit || 35 ms opening with LUB32 control circuit || 35 ms opening with LUB38 control circuit || 60 ms closing with LUB12 control circuit || 60 ms closing with LUB32 control circuit || 60 ms closing with LUB38 control circuit
• Width: 45 mm
• Safe Separation Of Circuit: 400 V SELV between the control and auxiliary circuits IEC 60947-1 || 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1
• Depth: 60 mm
• Heat Dissipation: 2-2 W control circuit with LUB12 || 3-3 W control circuit with LUB32 || 3-3 W control circuit with LUB38

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP080204EN
• Sustainable Offer Status: Green Premium product
• Pvc Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile: ENVEOLI100414
• Eu Rohs Directive: Compliant
• Halogen Content Performance: Halogen free plastic parts product

Environment

• Ambient Air Temperature For Operation: -25-70 °C
• Resistance To Radiated Fields: 10 V/m 3 IEC 61000-4-3
• Non-Dissipating Shock Wave: 1 kV serial mode IEC 60947-6-2 || 2 kV common mode IEC 60947-6-2
• Shock Resistance: 10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27
• Vibration Resistance: 2 gn 5-300 Hz power poles open IEC 60068-2-6 || 4 gn 5-300 Hz power poles closed IEC 60068-2-6
• Immunity To Microbreaks: 3 ms
• Immunity To Voltage Dips: 70 % / 500 ms IEC 61000-4-11
• Ip Degree Of Protection: IP20 front panel and wired terminals IEC 60947-1 || IP20 other faces IEC 60947-1 || IP40 front panel outside connection zone IEC 60947-1
• Ambient Air Temperature For Storage: -40-85 °C
• Protective Treatment: TH IEC 60068
• Resistance To Electrostatic Discharge: 8 kV 3 in open air IEC 61000-4-2 || 8 kV 4 on contact IEC 61000-4-2
• Operating Altitude: 6561.68 ft (2000 m)
• Fire Resistance: 960 °C parts supporting live components IEC 60695-2-12 || 650 °C IEC 60695-2-12
• Immunity To Radioelectric Fields: 10 V IEC 61000-4-6
• Resistance To Fast Transients: 2 kV 3 serial link IEC 61000-4-4 || 4 kV 4 all circuits except for serial link IEC 61000-4-4
