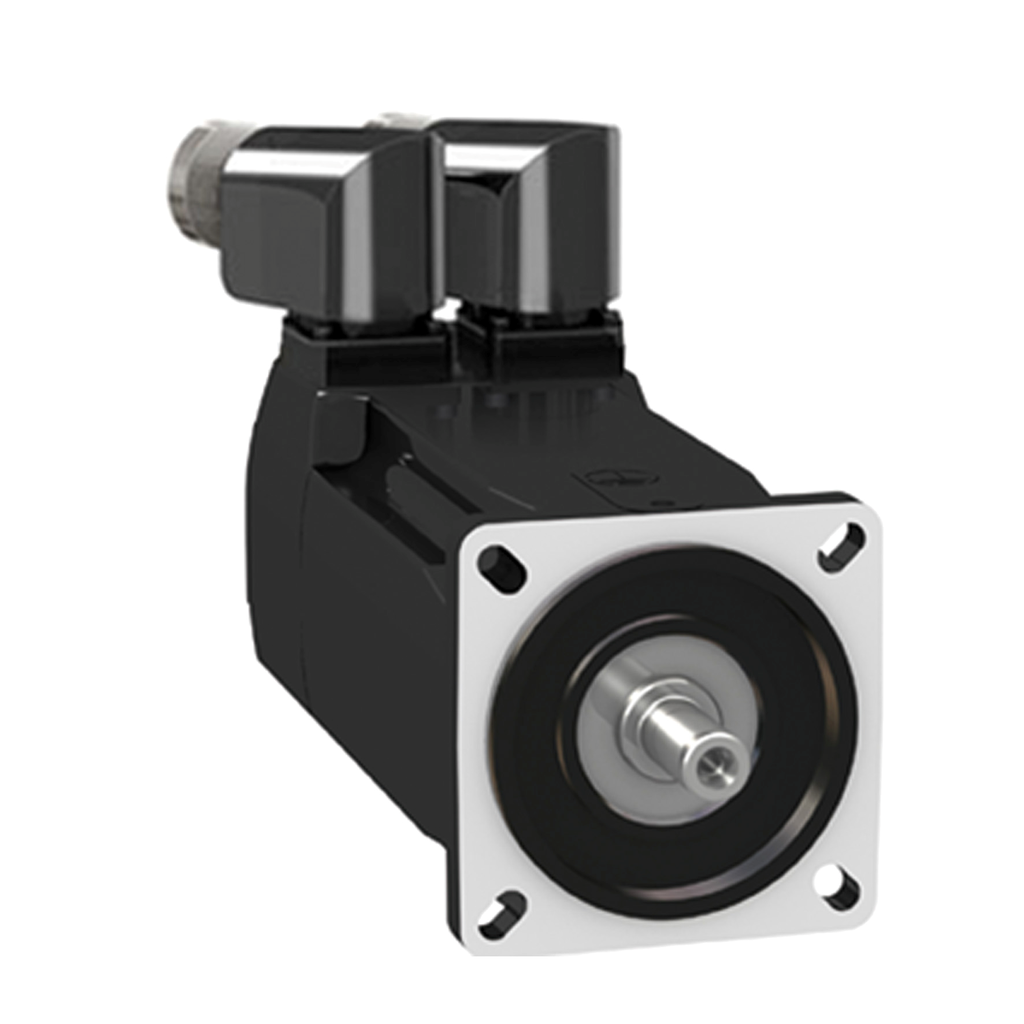

servo motor MH3 070 1,4Nm,no key,single 16 lines,no brake,IP65/IP67,6kRPM

• Product Or Component Type: AC servo motors
• Range Compatibility: PacDrive 3
• Device Short Name: MH3

Complementary

• Circle Diameter Of The Mounting Holes: 82 mm
• Continuous Power: 930 W
• Maximum Mechanical Speed: 8000 rpm
• Stator Electrical Time Constant: 2.8 ms
• Maximum Radial Force Fr: 660 N 1000 rpm || 520 N 2000 rpm || 460 N 3000 rpm || 410 N 4000 rpm || 380 N 5000 rpm || 360 N 6000 rpm
• Encoder Type: single turn SinCos Hiperface
• Mounting Support: international standard flange
• Rotor Inertia: 0.59 kg.cm²
• Number Of Motor Poles: 10
• Back Emf Constant: 50.72 V/krpm
• Centring Collar Depth: 2.5 mm
• Holding Brake: without
• Speed Feedback Resolution: 16 periods
• Second Shaft: without second shaft end
• Shaft Length: 23 mm
• Phase: three phase
• Length: 122 mm
• Maximum Current Irms: 5.97 A
• Net Weight: 1.6 kg
• Centring Collar Diameter: 60 mm
• Stator Inductance: 23.4 mH
• Motor Flange Size: 70 mm
• [Us] Rated Supply Voltage: 115...480 V
• Nominal Output Power: 0.18 W, 115 V || 0.42 W, 230 V || 0.75 W, 400 V || 0.93 W, 480 V
• Peak Stall Torque: 4.2 N.m, 115...480 V, three phase
• Number Of Mounting Holes: 4
• Shaft Diameter: 11 mm
• Mounting Holes Diameter: 5.5 mm
• Type Of Cooling: natural convection
• Ip Degree Of Protection: IP65 standard
• Shaft End: smooth shaft
• Nominal Speed: 1250 rpm LXM52 1.75 mA, 115 V, 1 phase || 3000 rpm LXM52 1.75 mA, 230 V, 1 phase || 5500 rpm LXM52 1.72 mA, 400 V, 3 phase || 7000 rpm LXM52 1.7 mA, 480 V, 3 phase || 1250 rpm LXM62 1.75 mA, 115 V, 1 phase || 3000 rpm LXM62 1.75 mA, 230 V, 1 phase || 5500 rpm LXM62 1.72 mA, 400 V, 3 phase || 7000 rpm LXM62 1.7 mA, 480 V, 3 phase
• Electrical Connection: rotatable right-angled connectors
• Stator Resistance: 8.28 Ohm
• Continuous Stall Current: 1.78 A
• Nominal Torque: 1.38 N.m LXM52 1.75 mA, 115 V, 1 phase || 1.34 N.m LXM52 1.75 mA, 230 V, 1 phase || 1.3 N.m LXM52 1.72 mA, 400 V, 3 phase || 1.27 N.m LXM52 1.7 mA, 480 V, 3 phase || 1.38 N.m LXM62 1.75 mA, 115 V, 1 phase || 1.34 N.m LXM62 1.75 mA, 230 V, 1 phase || 1.3 N.m LXM62 1.72 mA, 400 V, 3 phase || 1.27 N.m LXM62 1.7 mA, 480 V, 3 phase
• Torque Constant: 0.79 N.m/A 120 °C
• Continuous Stall Torque: 1.4 N.m, 115...480 V, three phase

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP111002EN
• Sustainable Offer Status: Green Premium product
• Pvc Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
