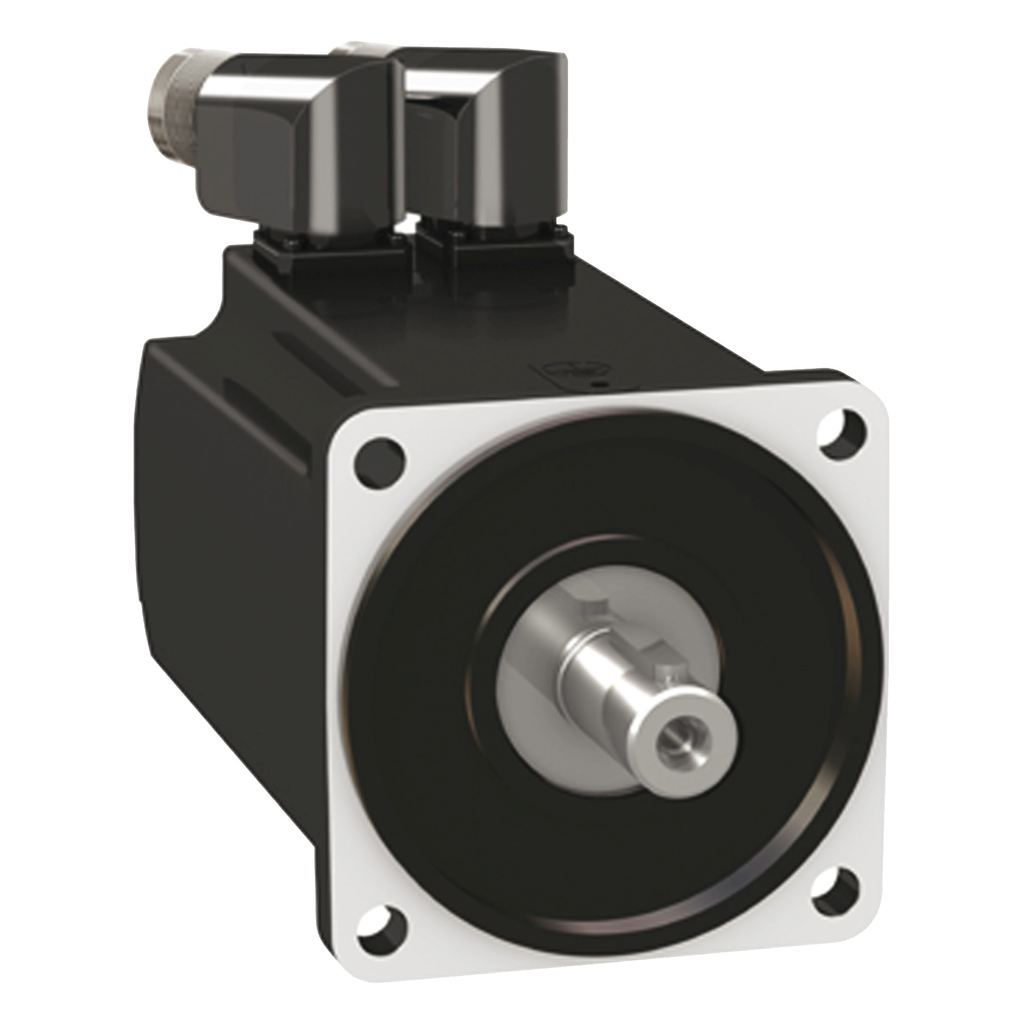

Product Description
- Product Or Component Type: AC servo motors
- Range Compatibility: PacDrive 3
- Device Short Name: MH3
Complementary
- Circle Diameter Of The Mounting Holes: 115 mm
- Continuous Power: 1520 W
- Maximum Mechanical Speed: 6000 rpm
- Stator Electrical Time Constant: 4.5 ms
- Maximum Radial Force Fr: 900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm || 530 N 5000 rpm
- Encoder Type: single turn SinCos Hiperface
- Mounting Support: international standard flange
- Rotor Inertia: 3.19 kg.cm²
- Number Of Motor Poles: 10
- Back Emf Constant: 70.3 V/krpm
- Centring Collar Depth: 3.5 mm
- Holding Brake: without
- Speed Feedback Resolution: 16 periods
- Second Shaft: without second shaft end
- Shaft Length: 40 mm
- Phase: three phase
- Length: 128.6 mm
- Maximum Current Irms: 10.68 A
- Net Weight: 3.34 kg
- Centring Collar Diameter: 95 mm
- Stator Inductance: 14.9 mH
- Motor Flange Size: 100 mm
- [Us] Rated Supply Voltage: 115...480 V
- Nominal Output Power: 0.35 W, 115 V || 0.67 W, 230 V || 1.26 W, 400 V || 1.52 W, 480 V
- Peak Stall Torque: 10.8 N.m, 115...480 V, three phase
- Number Of Mounting Holes: 4
- Shaft Diameter: 19 mm
- Key Width: 6 mm
- Mounting Holes Diameter: 9 mm
- Type Of Cooling: natural convection
- Ip Degree Of Protection: IP65 standard
- Shaft End: parallel key
- Nominal Speed: 1000 rpm LXM52 3.07 mA, 115 V, 1 phase || 2000 rpm LXM52 2.99 mA, 230 V, 1 phase || 4000 rpm LXM52 2.83 mA, 400 V, 3 phase || 5000 rpm LXM52 2.75 mA, 480 V, 3 phase || 1000 rpm LXM62 3.07 mA, 115 V, 1 phase || 2000 rpm LXM62 2.99 mA, 230 V, 1 phase || 4000 rpm LXM62 2.83 mA, 400 V, 3 phase || 5000 rpm LXM62 2.75 mA, 480 V, 3 phase
- Electrical Connection: rotatable right-angled connectors
- Stator Resistance: 4.12 Ohm
- Continuous Stall Current: 3.15 A
- Nominal Torque: 3.3 N.m LXM52 3.07 mA, 115 V, 1 phase || 3.2 N.m LXM52 2.99 mA, 230 V, 1 phase || 3 N.m LXM52 2.83 mA, 400 V, 3 phase || 2.9 N.m LXM52 2.75 mA, 480 V, 3 phase || 3.3 N.m LXM62 3.07 mA, 115 V, 1 phase || 3.2 N.m LXM62 2.99 mA, 230 V, 1 phase || 3 N.m LXM62 2.83 mA, 400 V, 3 phase || 2.9 N.m LXM62 2.75 mA, 480 V, 3 phase
- Torque Constant: 1.09 N.m/A 120 °C
- Continuous Stall Torque: 3.4 N.m, 115...480 V, three phase
Offer Sustainability
- Rohs Exemption Information: Yes
- Mercury Free: Yes
- Environmental Disclosure: ENVPEP111002EN
- Sustainable Offer Status: Green Premium product
- Pvc Free: Yes
- Reach Regulation: Reference contains Substances of Very High Concern above the threshold
- California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation: X
- Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
