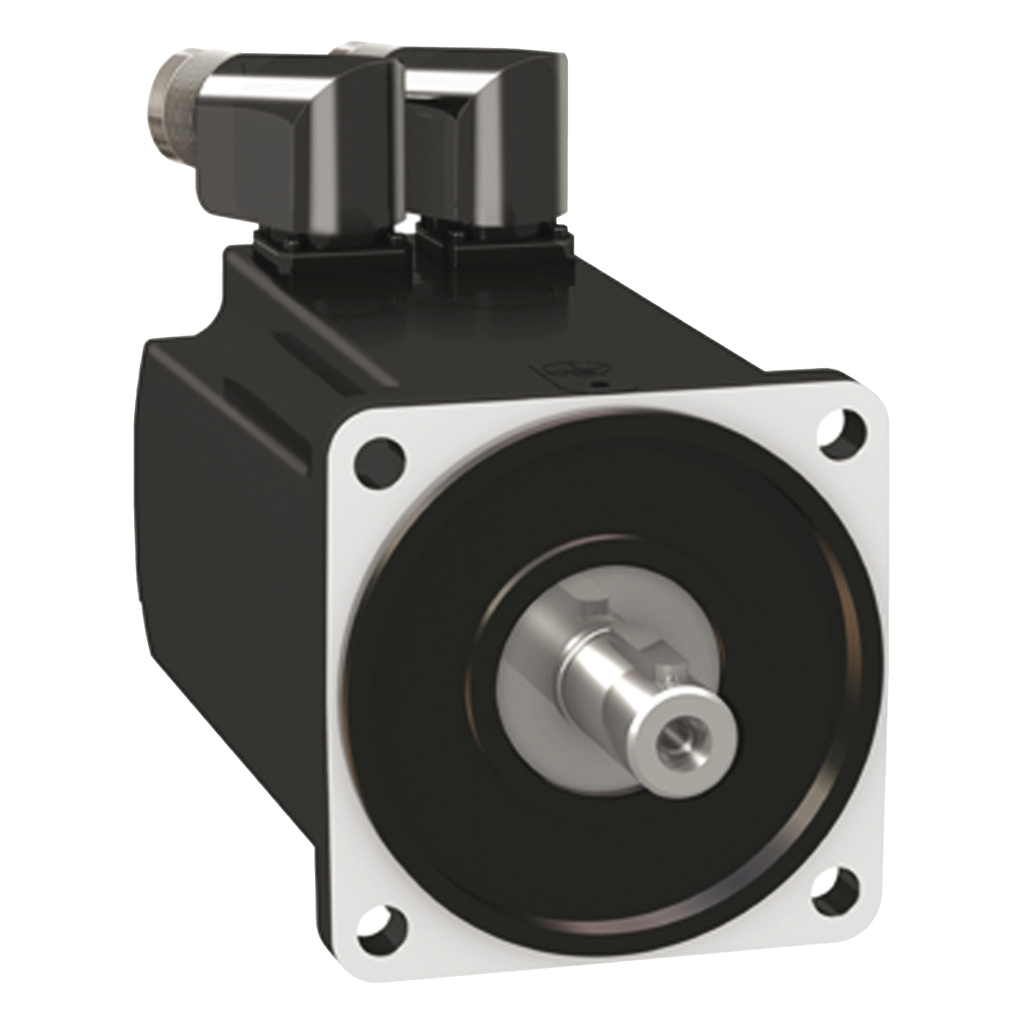

servo motor MH3 100 5,8Nm,key,multi,no brake,IP65/IP67,4kRPM

• Product Or Component Type: AC servo motors
• Range Compatibility: PacDrive 3
• Device Short Name: MH3

Complementary

• Circle Diameter Of The Mounting Holes: 115 mm
• Continuous Power: 2270 W
• Maximum Mechanical Speed: 6000 rpm
• Stator Electrical Time Constant: 5 ms
• Maximum Radial Force Fr: 990 N 1000 rpm || 790 N 2000 rpm || 690 N 3000 rpm || 620 N 4000 rpm || 580 N 5000 rpm
• Encoder Type: multiturn SinCos Hiperface
• Mounting Support: international standard flange
• Rotor Inertia: 6.28 kg.cm²
• Number Of Motor Poles: 10
• Back Emf Constant: 78 V/krpm
• Centring Collar Depth: 3.5 mm
• Holding Brake: without
• Speed Feedback Resolution: 128 periods
• Second Shaft: without second shaft end
• Shaft Length: 40 mm
• Phase: three phase
• Length: 160.6 mm
• Maximum Current Irms: 17.4 A
• Net Weight: 4.92 kg
• Centring Collar Diameter: 95 mm
• Stator Inductance: 8.24 mH
• Motor Flange Size: 100 mm
• [Us] Rated Supply Voltage: 115...480 V
• Nominal Output Power: 0.59 W, 115 V || 1.12 W, 230 V || 1.95 W, 400 V || 2.27 W, 480 V
• Peak Stall Torque: 18 N.m, 115...480 V, three phase
• Number Of Mounting Holes: 4
• Shaft Diameter: 19 mm
• Key Width: 6 mm
• Mounting Holes Diameter: 9 mm
• Type Of Cooling: natural convection
• Ip Degree Of Protection: IP65 standard
• Shaft End: parallel key
• Nominal Speed: 1000 rpm LXM52 4.81 mA, 115 V, 1 phase || 2000 rpm LXM52 4.58 mA, 230 V, 1 phase || 4000 rpm LXM52 4.1 mA, 400 V, 3 phase || 5000 rpm LXM52 3.73 mA, 480 V, 3 phase || 1000 rpm LXM62 4.81 mA, 115 V, 1 phase || 2000 rpm LXM62 4.58 mA, 230 V, 1 phase || 4000 rpm LXM62 4.1 mA, 400 V, 3 phase || 5000 rpm LXM62 3.73 mA, 480 V, 3 phase
• Electrical Connection: rotatable right-angled connectors
• Stator Resistance: 1.97 Ohm
• Continuous Stall Current: 5.04 A
• Nominal Torque: 5.67 N.m LXM52 4.81 mA, 115 V, 1 phase || 5.33 N.m LXM52 4.58 mA, 230 V, 1 phase || 4.67 N.m LXM52 4.1 mA, 400 V, 3 phase || 4.2 N.m LXM52 3.73 mA, 480 V, 3 phase || 5.67 N.m LXM62 4.81 mA, 115 V, 1 phase || 5.33 N.m LXM62 4.58 mA, 230 V, 1 phase || 4.67 N.m LXM62 4.1 mA, 400 V, 3 phase || 4.2 N.m LXM62 3.73 mA, 480 V, 3 phase
• Torque Constant: 1.19 N.m/A 120 °C
• Continuous Stall Torque: 6 N.m, 115...480 V, three phase

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP111002EN
• Sustainable Offer Status: Green Premium product
• Pvc Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
