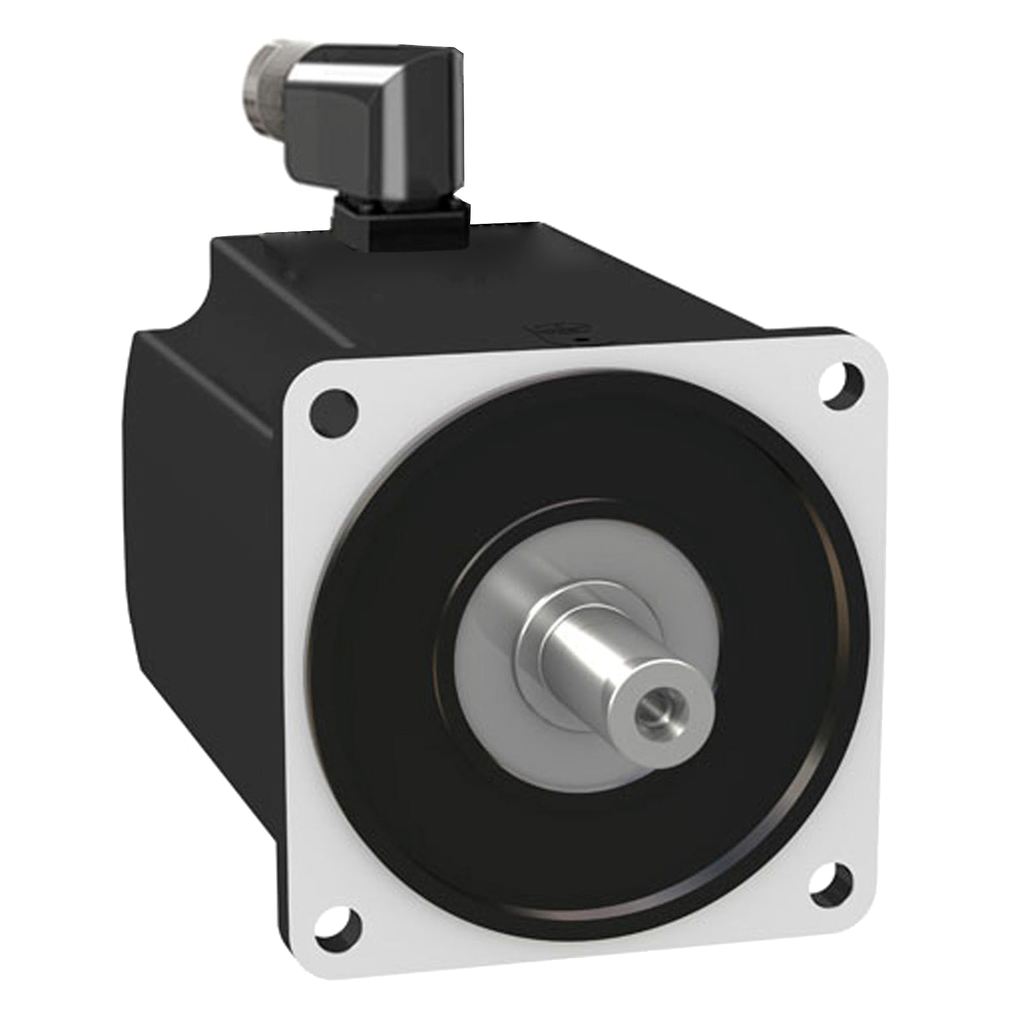

servo motor MH3 190 64,9Nm,no key,multi,brake,IP65/IP67,2kRPM

• Product Or Component Type: AC servo motors
• Range Compatibility: PacDrive 3
• Device Short Name: MH3

Complementary

• Circle Diameter Of The Mounting Holes: 215 mm
• Continuous Power: 6260 W
• Maximum Mechanical Speed: 3800 rpm
• Stator Electrical Time Constant: 18.7 ms
• Holding Torque: 60 N.m
• Maximum Radial Force Fr: 3200 N 1000 rpm || 3100 N 2000 rpm || 3000 N 3000 rpm || 2950 N 4000 rpm
• Encoder Type: multiturn SinCos Hiperface
• Mounting Support: international standard flange
• Rotor Inertia: 144.8 kg.cm²
• Number Of Motor Poles: 10
• Back Emf Constant: 108.3 V/krpm
• Centring Collar Depth: 4 mm
• Holding Brake: with
• Speed Feedback Resolution: 128 periods
• Second Shaft: without second shaft end
• Shaft Length: 80 mm
• Brake Pull-In Power: 25 W
• Phase: three phase
• Length: 308 mm
• Maximum Current Irms: 114 A
• Net Weight: 48.9 kg
• Centring Collar Diameter: 180 mm
• Stator Inductance: 3.86 mH
• Motor Flange Size: 190 mm
• [Us] Rated Supply Voltage: 115...480 V
• Nominal Output Power: 6.07 W, 400 V || 6.07 W, 480 V
• Peak Stall Torque: 220 N.m, 115...480 V, three phase
• Number Of Mounting Holes: 4
• Shaft Diameter: 38 mm
• Mounting Holes Diameter: 14 mm
• Type Of Cooling: natural convection
• Ip Degree Of Protection: IP65 standard
• Shaft End: smooth shaft
• Nominal Speed: 2000 rpm LXM52 19.3 mA, 400 V, 3 phase || 2000 rpm LXM52 19.3 mA, 480 V, 3 phase || 2000 rpm LXM62 19.3 mA, 400 V, 3 phase || 2000 rpm LXM62 19.3 mA, 480 V, 3 phase
• Electrical Connection: rotatable right-angled connectors
• Stator Resistance: 0.15 Ohm
• Continuous Stall Current: 30.8 A
• Nominal Torque: 29 N.m LXM52 19.3 mA, 400 V, 3 phase || 29 N.m LXM52 19.3 mA, 480 V, 3 phase || 29 N.m LXM62 19.3 mA, 400 V, 3 phase || 29 N.m LXM62 19.3 mA, 480 V, 3 phase
• Torque Constant: 1.56 N.m/A 120 °C
• Continuous Stall Torque: 48 N.m, 115...480 V, three phase

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP111002EN
• Sustainable Offer Status: Green Premium product
• Pvc Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
