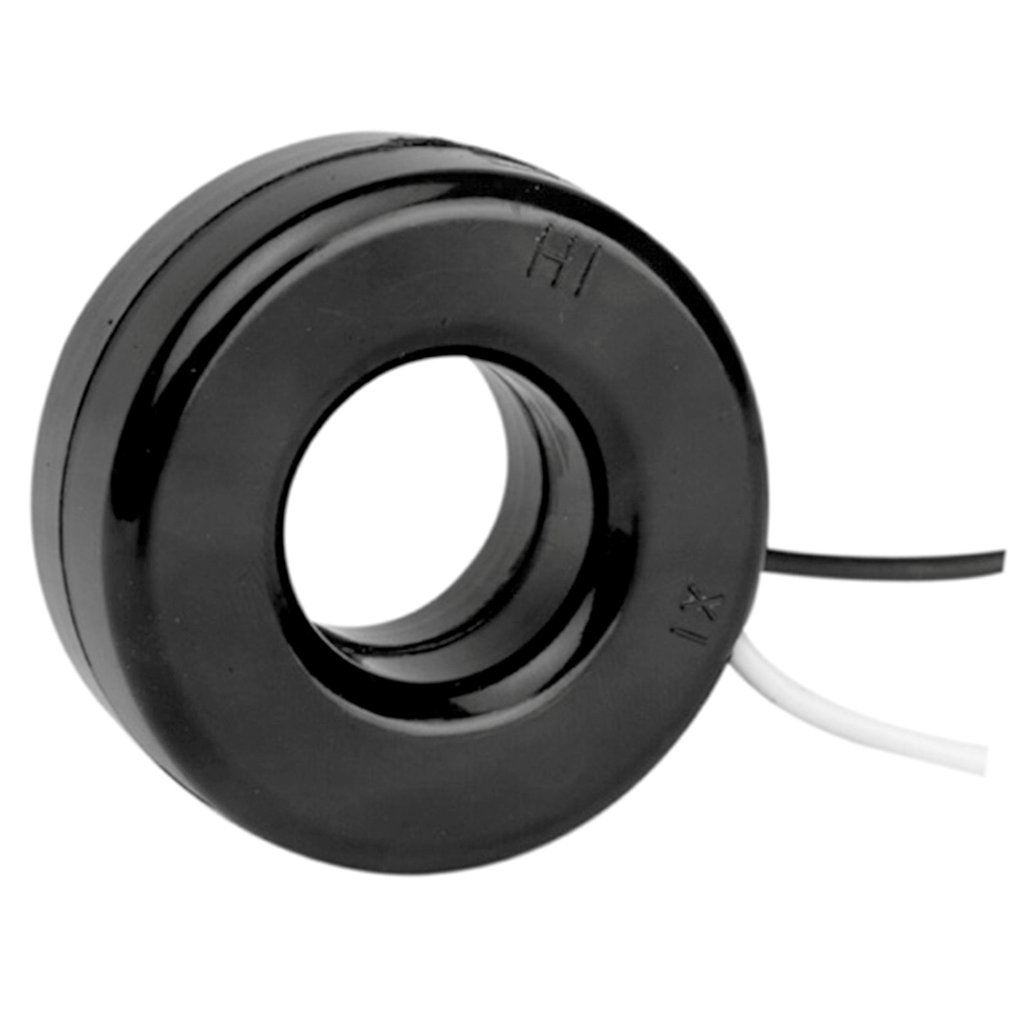

AccuSine+ current transformer - 800/5 - Round Solid Core - diam: 63.5mm

• Secondary Current: 5 A
• Range Compatibility: AccuSine (AccuSine PCS+) active harmonic filter || AccuSine (AccuSine PFV+) electronic VAR controller
• Accessory / Separate Part Category: measurement accessory
• Current Transformer Type: solid core
• Product Or Component Type: current transformer
• Shape: round
• Range: AccuSine

Complementary

• Network Frequency: 50...400 Hz
• [Ue] Rated Operational Voltage: 600 V AC 50...400 Hz
• Current Transformer Ratio: 800/5
• Measurement Accuracy: 1 %
• Electrical Connection: flying lead 609.6 mm AWG 16) 600 V
• Input Impedance: 1.4 Ohm
• Line Rated Current: 800 A
• [Uimp] Rated Impulse Withstand Voltage: 10 kV 50 µs)
• Diameter: inner 63.5 mm || outer 116.3 mm
• Net Weight: 0.68 kg
• Depth: 28 mm
• Accuracy Class: class 1

Offer Sustainability

• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Toxic Heavy Metal Free: Yes
• Eu Rohs Directive: Compliant
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environment

• Product Certifications: CSA || cURus
• Standards: UL 1015
