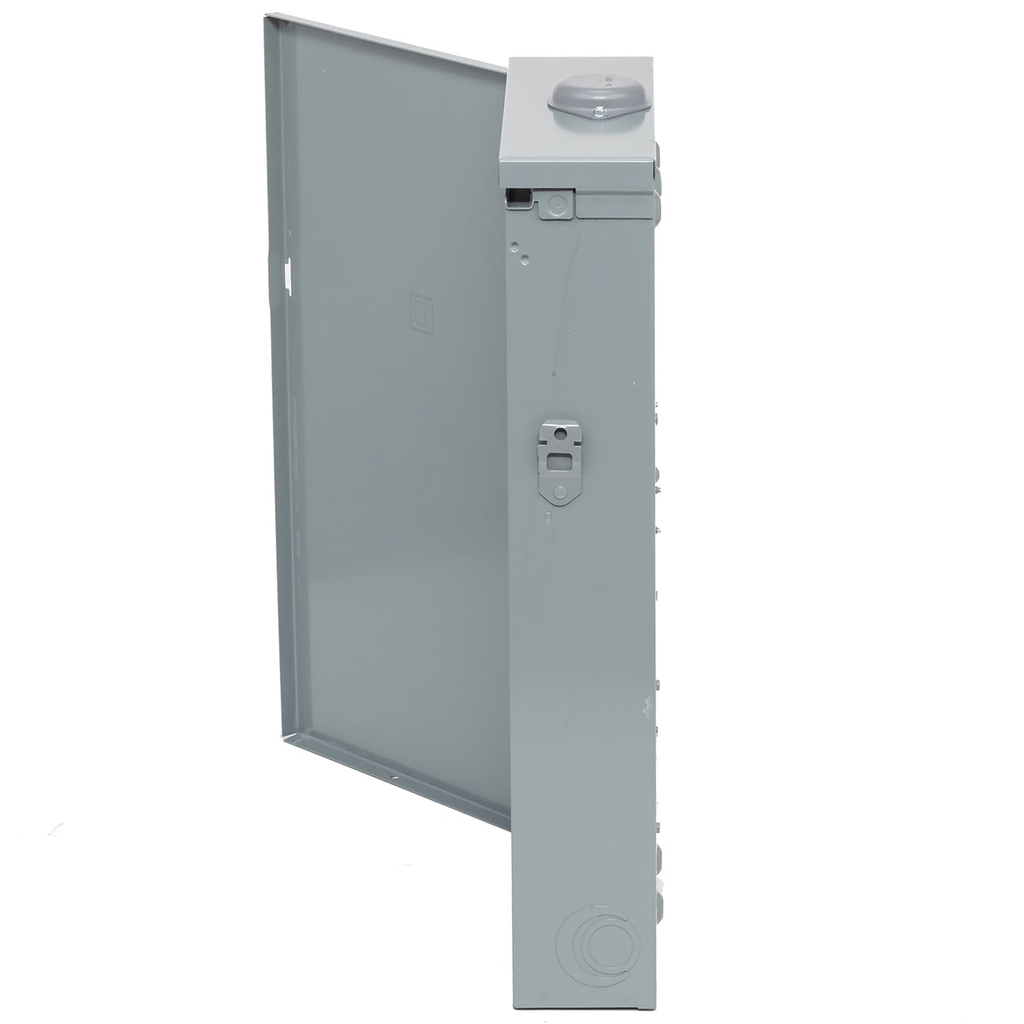

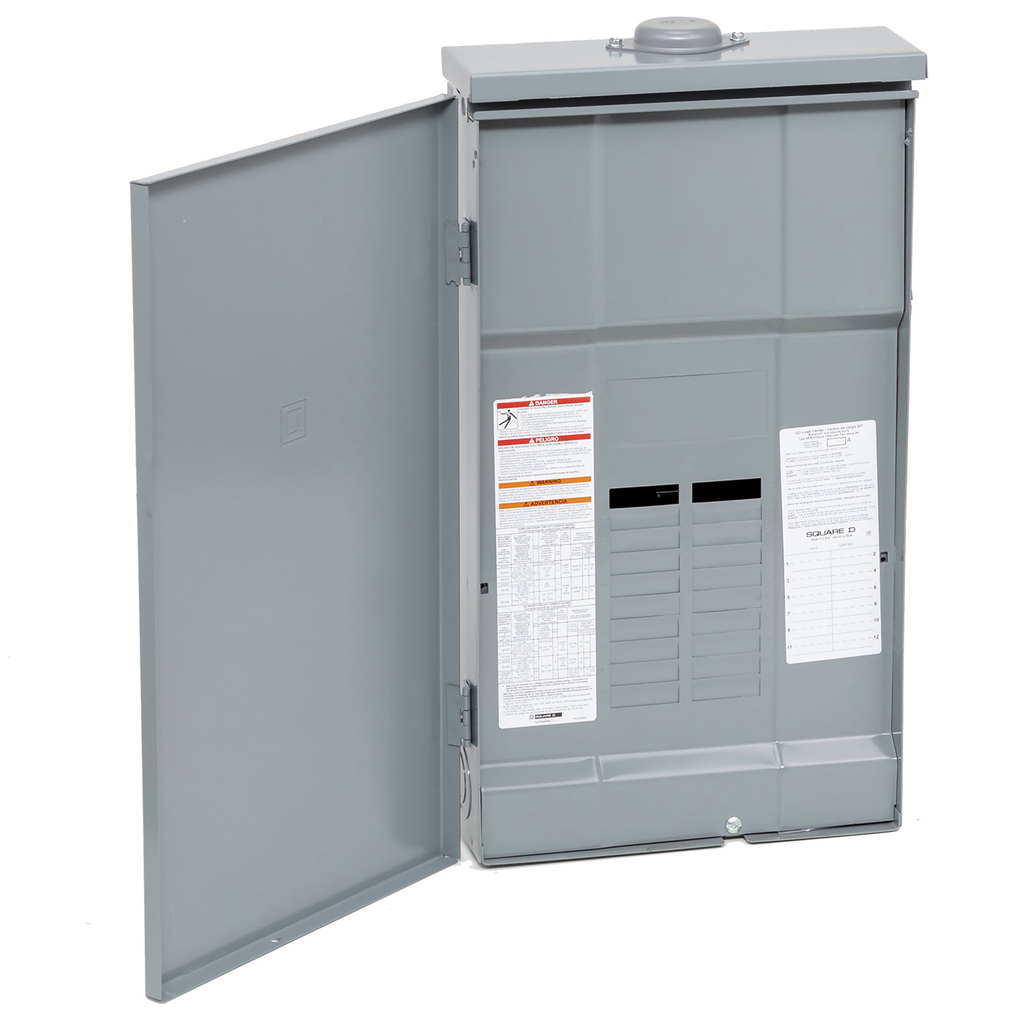

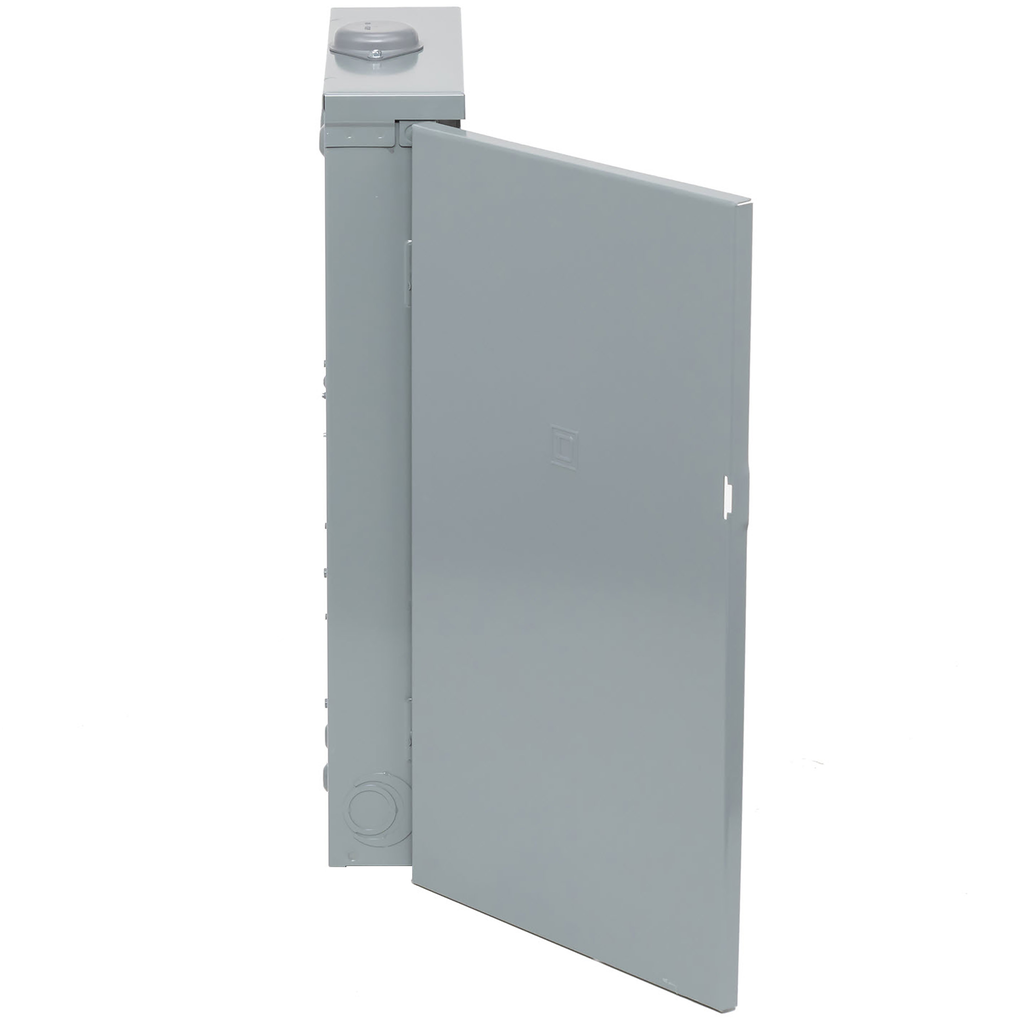

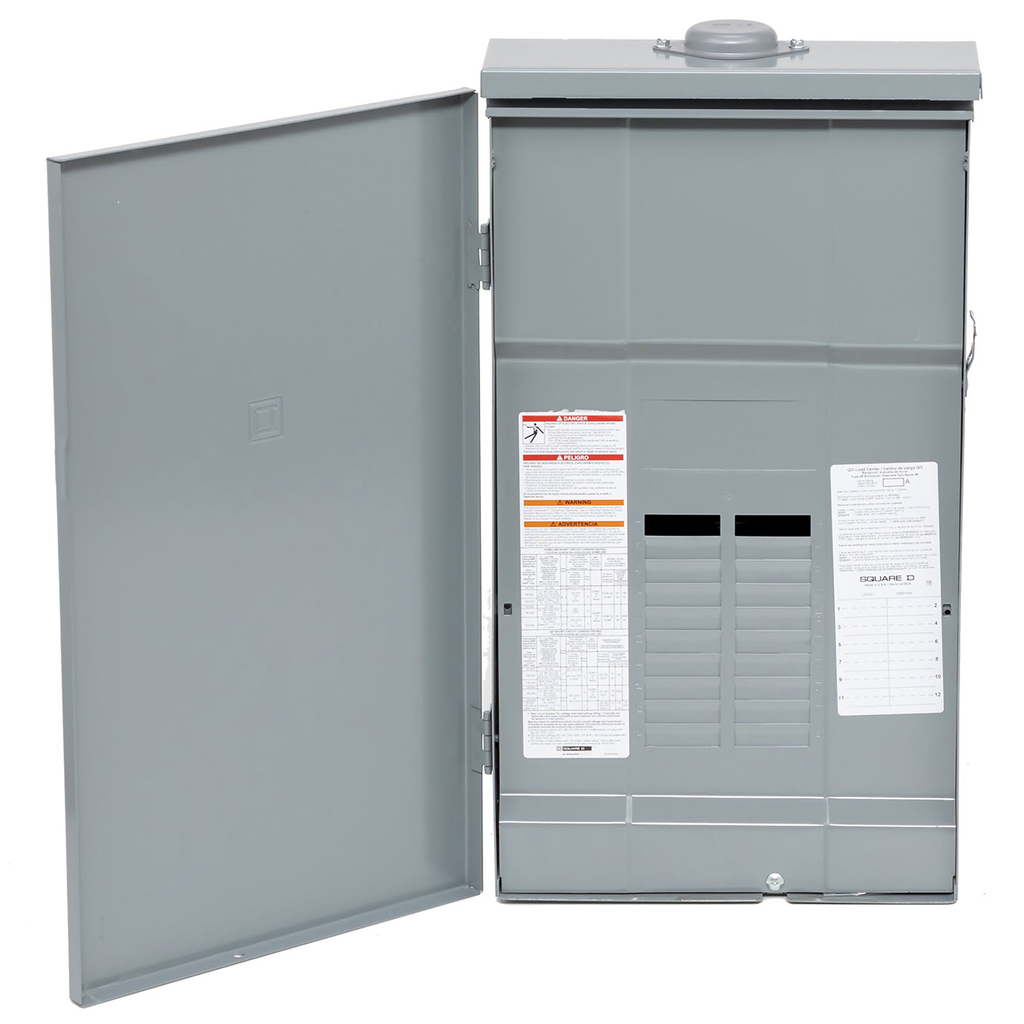

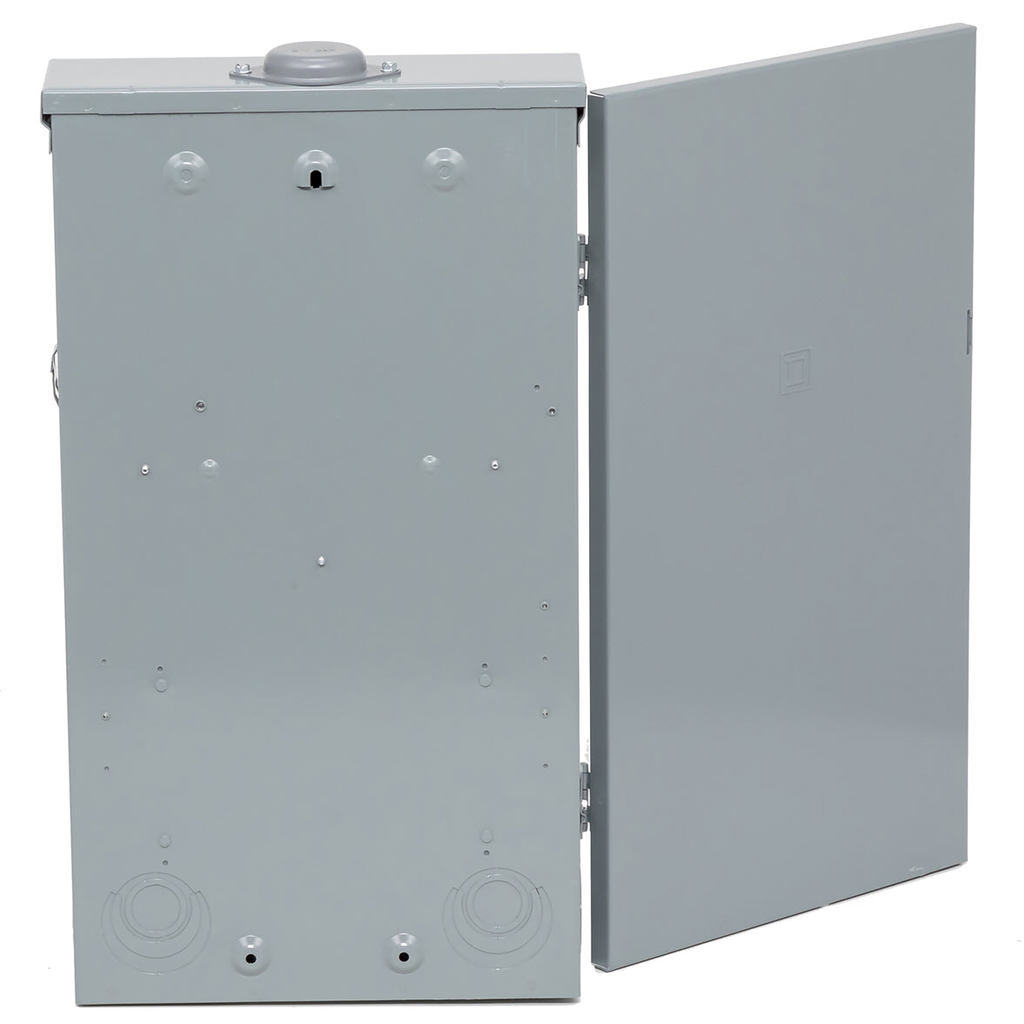

Load center, QO, 1 phase, 12 spaces, 24 circuits, 200A convertible main lugs, PoN, NEMA3R, gnd bar, UL

• Range Of Product: QO
• Provided Equipment: grounding bar
• Product Or Component Type: Load Center
• Enclosure Type: weatherproof enclosure

Complementary

• Height: 661 mm
• Number Of Circuits: 24
• Number Of Spaces: 12
• Phase: 1 phase
• Net Weight: 12.250 kg
• Short-Circuit Current: 65 kA
• Number Of Tandem Circuit Breakers: 12
• Line Rated Current: 200 A
• Width: 375 mm
• Depth: 115 mm
• Load Center Type: PoN Convertible Mains (lugs)
• Device Composition: grounding bar included (not installed)
• Box Number: 5R

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP2101006
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)
• Eu Rohs Directive: Compliant

Environment

• Product Certifications: UL Listed
• Nema Degree Of Protection: NEMA 3R outdoor
• Ambient Air Temperature For Operation: -5 °C || 40 °C
