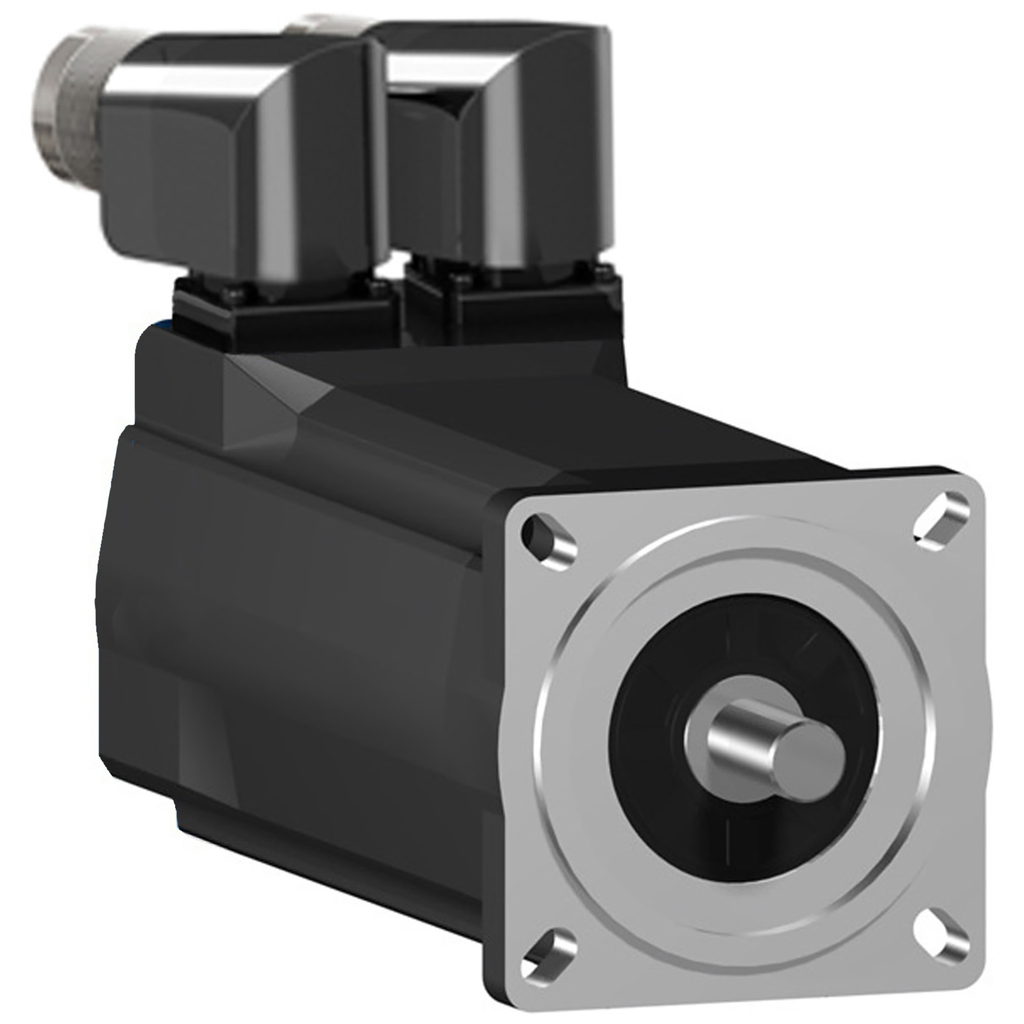

servo motor SH3 070 1,25Nm,nokey,single,nobrake,90°conn.IP65/IP67,8k RPM

• Range Compatibility: PacDrive 3
• Product Or Component Type: servo motor
• Device Short Name: SH3.....P

Contractual warranty

• Warranty: 18 months

Complementary

• Circle Diameter Of The Mounting Holes: 82 mm
• Peak Stall Torque: 3.5 N.m 115...480 V three phase
• Number Of Mounting Holes: 4
• Continuous Power: 690 W
• Shaft Diameter: 11 mm
• Nominal Output Power: 220 W 115 V single phase || 440 W 230 V single phase || 820 W 400 V three phase || 950 W 480 V three phase
• Maximum Mechanical Speed: 8000 rpm
• Mounting Holes Diameter: 5.5 mm
• Type Of Cooling: natural convection
• Maximum Radial Force Fr: 660 N 1000 rpm || 520 N 2000 rpm || 460 N 3000 rpm || 410 N 4000 rpm || 380 N 5000 rpm || 360 N 6000 rpm
• Encoder Type: absolute single turn SinCos Hiperface
• Mounting Support: international standard flange
• Rotor Inertia: 0.25 kg.cm²
• Number Of Motor Poles: 3
• Back Emf Constant: 46 V/krpm 20 °C
• Maximum Axial Force Fa: 80 N
• Ip Degree Of Protection: motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5 || housing IP67 EN/IEC 60034-5
• Shaft End: smooth shaft
• Centring Collar Depth: 2.5 mm
• Nominal Speed: 1500 rpm 115 V single phase || 3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase
• Electrical Connection: straight connector
• Holding Brake: without
• Speed Feedback Resolution: 128 periods
• Stator Resistance: 10.4 Ohm
• Continuous Stall Current: 1.8 A
• Nominal Torque: 1.4 N.m 115 V single phase || 1.4 N.m 230 V single phase || 1.1 N.m 400 V three phase || 1.1 N.m 480 V three phase
• Shaft Length: 23 mm
• Phase: three phase
• Length: 154 mm
• Net Weight: 2.1 kg
• Maximum Current Irms: 5.7 A
• Torque Constant: 0.69 N.m/A 120 °C
• Centring Collar Diameter: 60 mm
• Continuous Stall Torque: 1.25 N.m 115...480 V three phase
• Stator Inductance: 60.25 mH
• Motor Flange Size: 70 mm
• [Us] Rated Supply Voltage: 115...480 V

Offer Sustainability

• China Rohs Regulation: X
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP111049EN
• Sustainable Offer Status: Green Premium product
• Pvc Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
