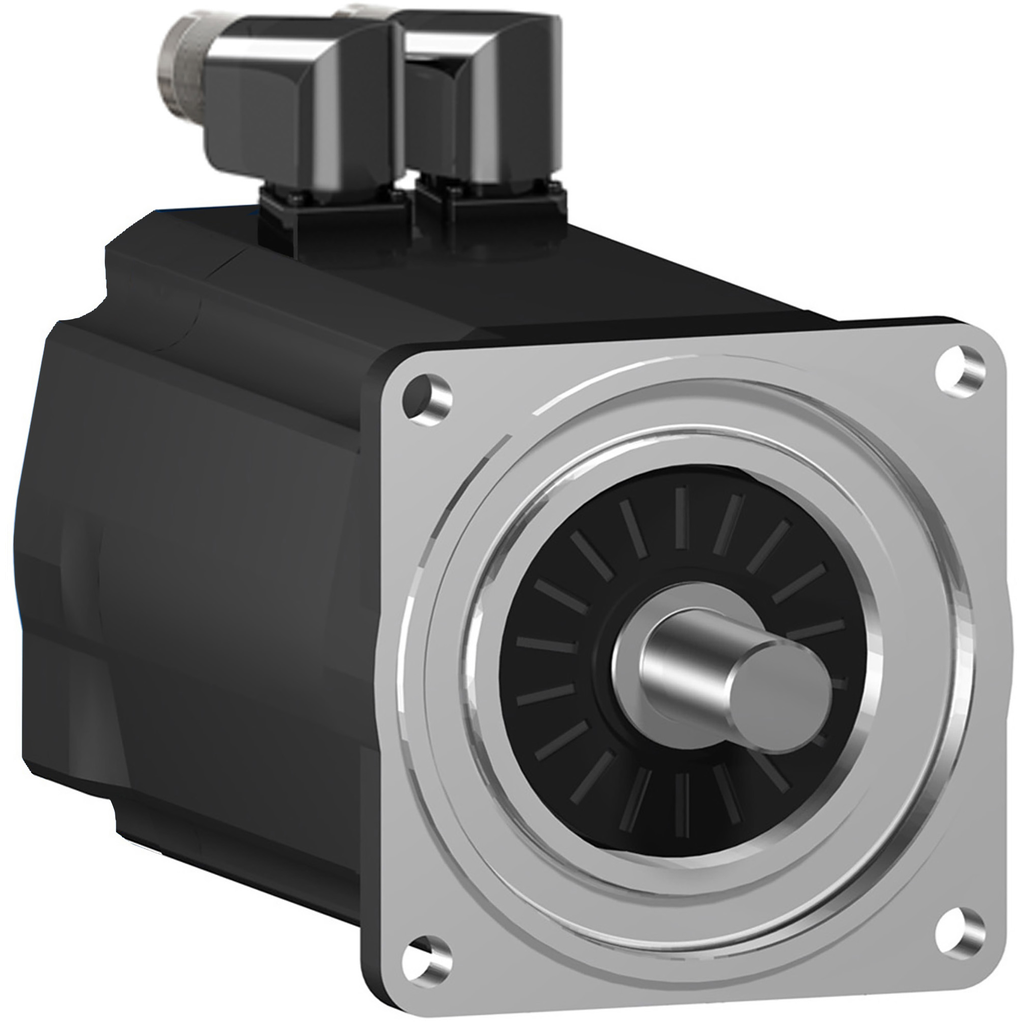

servo motor SH3 100 8Nm,key,multi,nobrake,90°conn.IP65/IP67,6k RPM

• Range Compatibility: PacDrive 3
• Product Or Component Type: servo motor
• Device Short Name: SH3.....P

Contractual warranty

• Warranty: 18 months

Complementary

• Circle Diameter Of The Mounting Holes: 115 mm
• Peak Stall Torque: 28.3 N.m 115...480 V three phase
• Number Of Mounting Holes: 4
• Continuous Power: 2400 W
• Shaft Diameter: 19 mm
• Key Width: 6 mm
• Nominal Output Power: 790 W 115 V single phase || 1470 W 230 V single phase || 2390 W 400 V three phase || 2560 W 480 V three phase
• Maximum Mechanical Speed: 6000 rpm
• Mounting Holes Diameter: 9.0 mm
• Type Of Cooling: natural convection
• Maximum Radial Force Fr: 1050 N 1000 rpm || 830 N 2000 rpm || 730 N 3000 rpm || 660 N 4000 rpm
• Encoder Type: absolute multiturn SinCos Hiperface
• Mounting Support: international standard flange
• Rotor Inertia: 3.22 kg.cm²
• Number Of Motor Poles: 4
• Back Emf Constant: 77 V/krpm 20 °C
• Maximum Axial Force Fa: 160 N
• Ip Degree Of Protection: motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5 || housing IP67 EN/IEC 60034-5
• Shaft End: parallel key
• Centring Collar Depth: 3.5 mm
• Nominal Speed: 1000 rpm 115 V single phase || 2000 rpm 230 V single phase || 4000 rpm 400 V three phase || 4800 rpm 480 V three phase
• Electrical Connection: rotatable right angled connector
• Holding Brake: without
• Speed Feedback Resolution: 128 periods
• Stator Resistance: 1.43 Ohm
• Continuous Stall Current: 6.6 A
• Nominal Torque: 5.1 N.m 480 V three phase || 7.5 N.m 115 V single phase || 7 N.m 230 V single phase || 5.7 N.m 400 V three phase
• Shaft Length: 40 mm
• Phase: three phase
• Length: 240.5 mm
• Net Weight: 7.5 kg
• Maximum Current Irms: 28.3 A
• Torque Constant: 1.22 N.m/A 120 °C
• Centring Collar Diameter: 95 mm
• Continuous Stall Torque: 8 N.m 115...480 V three phase
• Stator Inductance: 13.45 mH
• Motor Flange Size: 100 mm
• [Us] Rated Supply Voltage: 115...480 V

Offer Sustainability

• China Rohs Regulation: X
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP111049EN
• Sustainable Offer Status: Green Premium product
• Pvc Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
