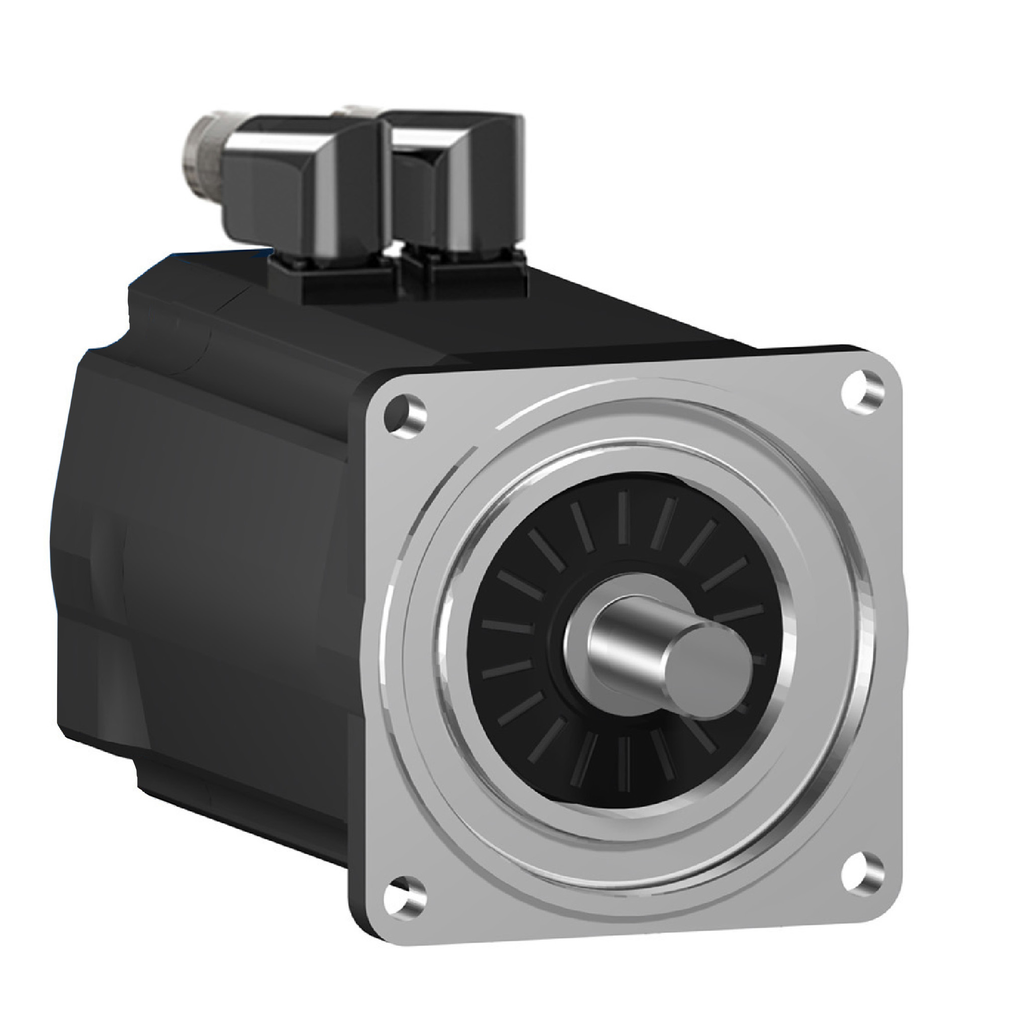

servo motor SH3 140 19,5Nm,key,single,brake,90°conn.IP65/IP65,4k RPM

• Range Compatibility: PacDrive 3
• Product Or Component Type: servo motor
• Device Short Name: SH3.....P

Contractual warranty

• Warranty: 18 months

Complementary

• Circle Diameter Of The Mounting Holes: 165 mm
• Peak Stall Torque: 60.1 N.m 115...480 V three phase
• Number Of Mounting Holes: 4
• Continuous Power: 3900 W
• Shaft Diameter: 24 mm
• Key Width: 8 mm
• Nominal Output Power: 1460 W 115 V single phase || 2690 W 230 V single phase || 3860 W 400 V three phase || 3660 W 480 V three phase
• Maximum Mechanical Speed: 4000 rpm
• Mounting Holes Diameter: 11 mm
• Type Of Cooling: natural convection
• Holding Torque: 23 N.m
• Maximum Radial Force Fr: 2240 N 1000 rpm || 1780 N 2000 rpm || 1550 N 3000 rpm
• Encoder Type: absolute single turn SinCos Hiperface
• Mounting Support: international standard flange
• Rotor Inertia: 14.48 kg.cm²
• Number Of Motor Poles: 5
• Back Emf Constant: 101 V/krpm 20 °C
• Maximum Axial Force Fa: 300 N
• Ip Degree Of Protection: motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
• Shaft End: parallel key
• Centring Collar Depth: 3.5 mm
• Nominal Speed: 750 rpm 115 V single phase || 1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase
• Electrical Connection: rotatable right angled connector
• Holding Brake: with
• Speed Feedback Resolution: 128 periods
• Stator Resistance: 0.6 Ohm
• Continuous Stall Current: 13.2 A
• Nominal Torque: 18.6 N.m 115 V single phase || 17.1 N.m 230 V single phase || 12.3 N.m 400 V three phase || 9.7 N.m 480 V three phase
• Shaft Length: 50 mm
• Phase: three phase
• Length: 310.5 mm
• Net Weight: 17.7 kg
• Maximum Current Irms: 44.1 A
• Torque Constant: 1.47 N.m/A 120 °C
• Centring Collar Diameter: 130 mm
• Continuous Stall Torque: 19.5 N.m 115...480 V three phase
• Stator Inductance: 11.225 mH
• Motor Flange Size: 140 mm
• [Us] Rated Supply Voltage: 115...480 V

Offer Sustainability

• China Rohs Regulation: X
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP111049EN
• Sustainable Offer Status: Green Premium product
• Pvc Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
