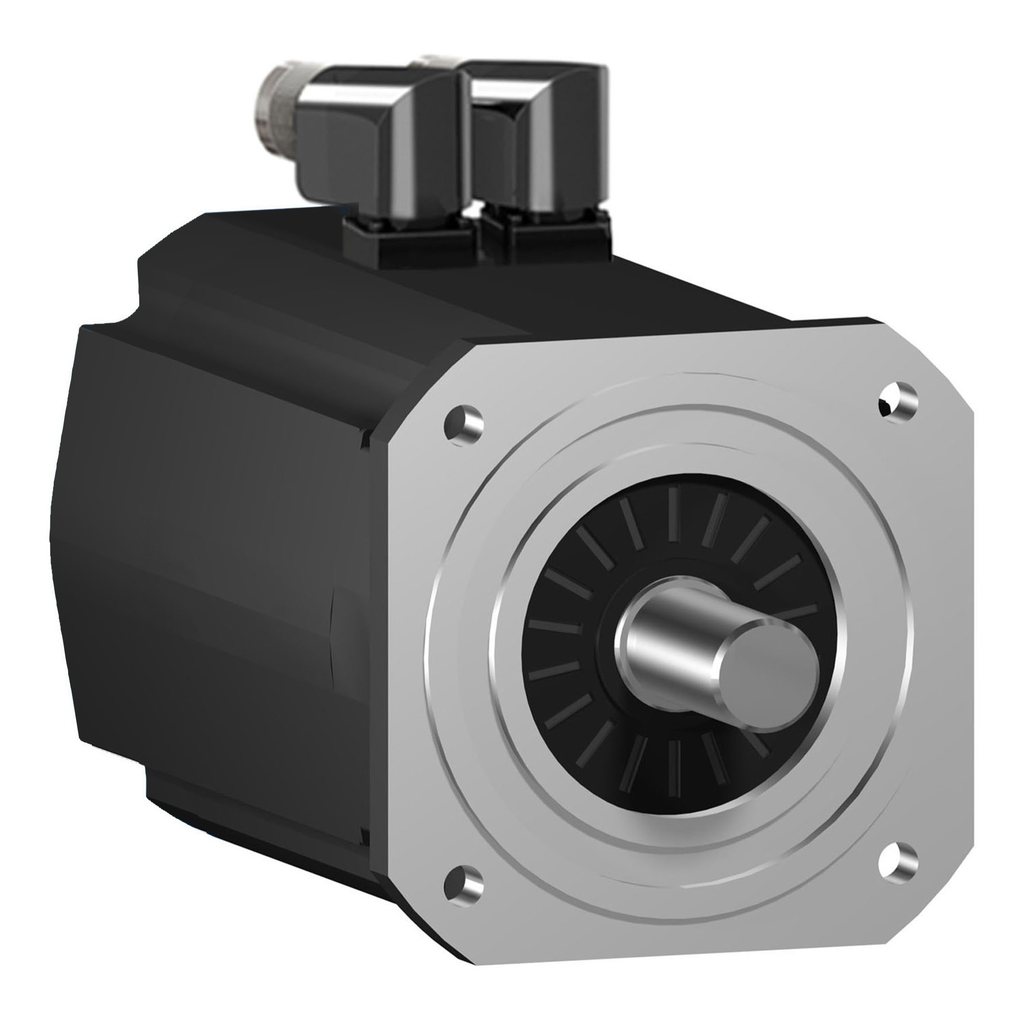

servo motor SH3 205 36,9Nm,key,multi,nobrake,90°conn.IP54/IP65,3.8k RPM

• Product Or Component Type: servo motor
• Range Compatibility: PacDrive 3
• Device Short Name: SH3.....P

Contractual warranty

• Warranty: 18 months

Complementary

• Circle Diameter Of The Mounting Holes: 215 mm
• Continuous Power: 5500 W
• Maximum Mechanical Speed: 3800 rpm
• Maximum Radial Force Fr: 3730 N 1000 rpm || 2960 N 2000 rpm || 2580 N 3000 rpm
• Encoder Type: absolute multiturn SinCos Hiperface
• Mounting Support: international standard flange
• Rotor Inertia: 71.4 kg.cm²
• Number Of Motor Poles: 5
• Back Emf Constant: 104 V/krpm 20 °C
• Maximum Axial Force Fa: 740 N
• Centring Collar Depth: 4 mm
• Holding Brake: without
• Speed Feedback Resolution: 128 periods
• Shaft Length: 80 mm
• Phase: three phase
• Length: 321 mm
• Net Weight: 35 kg
• Maximum Current Irms: 87.2 A
• Centring Collar Diameter: 180 mm
• Stator Inductance: 8.7 mH
• Motor Flange Size: 205 mm
• [Us] Rated Supply Voltage: 115...480 V
• Peak Stall Torque: 110 N.m 115...480 V three phase
• Number Of Mounting Holes: 4
• Shaft Diameter: 38 mm
• Key Width: 10 mm
• Nominal Output Power: 2510 W 115 V single phase || 4240 W 230 V single phase || 5500 W 400 V three phase || 5200 W 480 V three phase
• Mounting Holes Diameter: 14 mm
• Type Of Cooling: natural convection
• Ip Degree Of Protection: shaft bushing without shaft seal ring IP54 EN/IEC 60034-5 || motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
• Shaft End: parallel key
• Nominal Speed: 750 rpm 115 V single phase || 1500 rpm 230 V single phase || 3000 rpm 400 V three phase || 3600 rpm 480 V three phase
• Electrical Connection: straight connector
• Stator Resistance: 0.3 Ohm
• Continuous Stall Current: 21 A
• Nominal Torque: 31.9 N.m 115 V single phase || 27 N.m 230 V single phase || 17.5 N.m 400 V three phase || 13.8 N.m 480 V three phase
• Torque Constant: 1.6 N.m/A 120 °C
• Continuous Stall Torque: 36.9 N.m 115...480 V three phase
