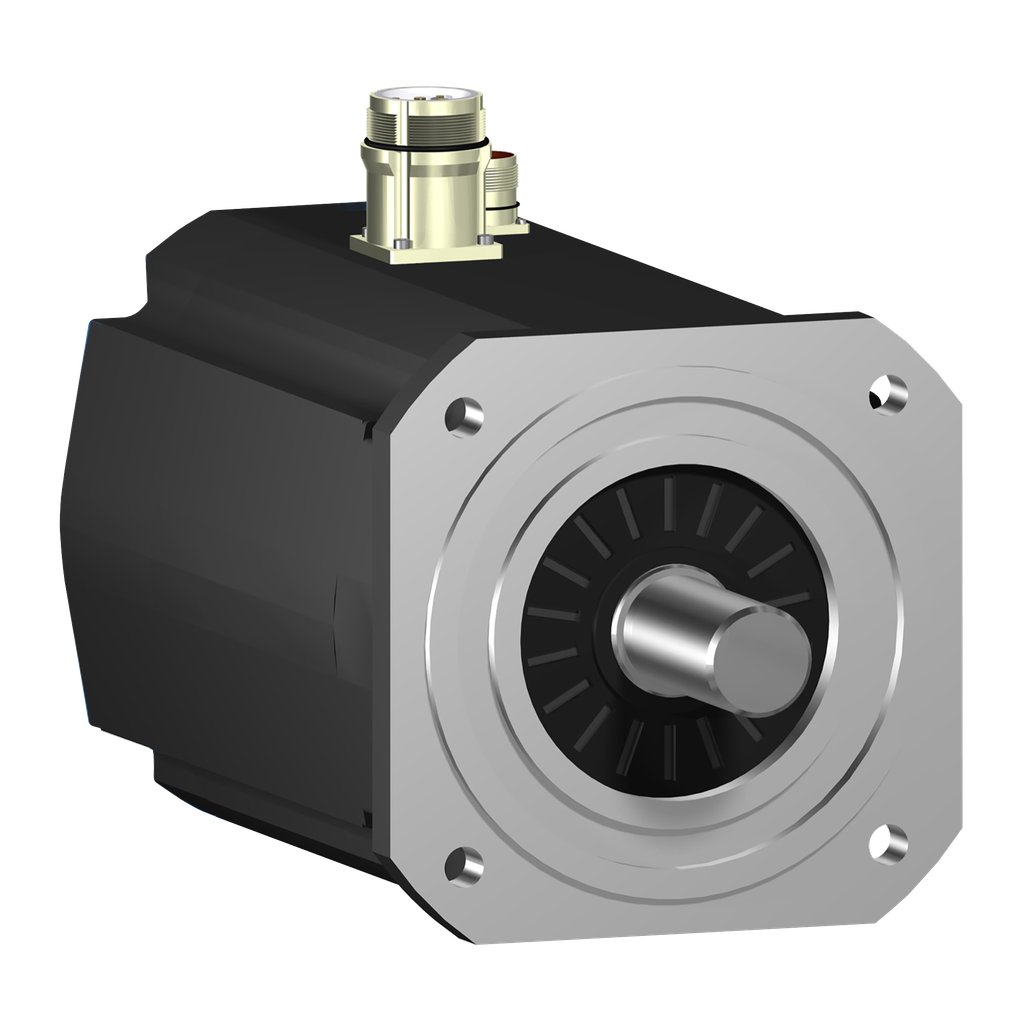

servo motor SH3 205 64,9Nm,nokey,multi,brake,str.conn,IP65/IP67,3.8k RPM

• Range Compatibility: PacDrive 3
• Product Or Component Type: servo motor
• Device Short Name: SH3.....P

Contractual warranty

• Warranty: 18 months

Complementary

• Circle Diameter Of The Mounting Holes: 215 mm
• Peak Stall Torque: 220 N.m 115...480 V three phase
• Number Of Mounting Holes: 4
• Continuous Power: 7900 W
• Shaft Diameter: 38 mm
• Nominal Output Power: 3230 W 115 V single phase || 5860 W 230 V single phase || 7980 W 400 V three phase || 7140 W 480 V three phase
• Maximum Mechanical Speed: 3800 rpm
• Mounting Holes Diameter: 14 mm
• Type Of Cooling: natural convection
• Holding Torque: 80 N.m
• Maximum Radial Force Fr: 4200 N 1000 rpm || 3330 N 2000 rpm || 2910 N 3000 rpm
• Encoder Type: absolute multiturn SinCos Hiperface
• Mounting Support: international standard flange
• Rotor Inertia: 145 kg.cm²
• Number Of Motor Poles: 5
• Back Emf Constant: 161 V/krpm 20 °C
• Maximum Axial Force Fa: 740 N
• Ip Degree Of Protection: motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5 || housing IP67 EN/IEC 60034-5
• Shaft End: smooth shaft
• Centring Collar Depth: 4 mm
• Nominal Speed: 500 rpm 115 V single phase || 1000 rpm 230 V single phase || 2000 rpm 400 V three phase || 2400 rpm 480 V three phase
• Electrical Connection: straight connector
• Holding Brake: with
• Speed Feedback Resolution: 128 periods
• Stator Resistance: 0.3 Ohm
• Continuous Stall Current: 25.7 A
• Nominal Torque: 61.6 N.m 115 V single phase || 56 N.m 230 V single phase || 38.1 N.m 400 V three phase || 28.4 N.m 480 V three phase
• Shaft Length: 80 mm
• Phase: three phase
• Length: 454.5 mm
• Net Weight: 53.6 kg
• Maximum Current Irms: 96.8 A
• Torque Constant: 2.58 N.m/A 120 °C
• Centring Collar Diameter: 180 mm
• Continuous Stall Torque: 64.9 N.m 115...480 V three phase
• Stator Inductance: 8.2 mH
• Motor Flange Size: 205 mm
• [Us] Rated Supply Voltage: 115...480 V

Offer Sustainability

• China Rohs Regulation: X
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP111049EN
• Sustainable Offer Status: Green Premium product
• Pvc Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
