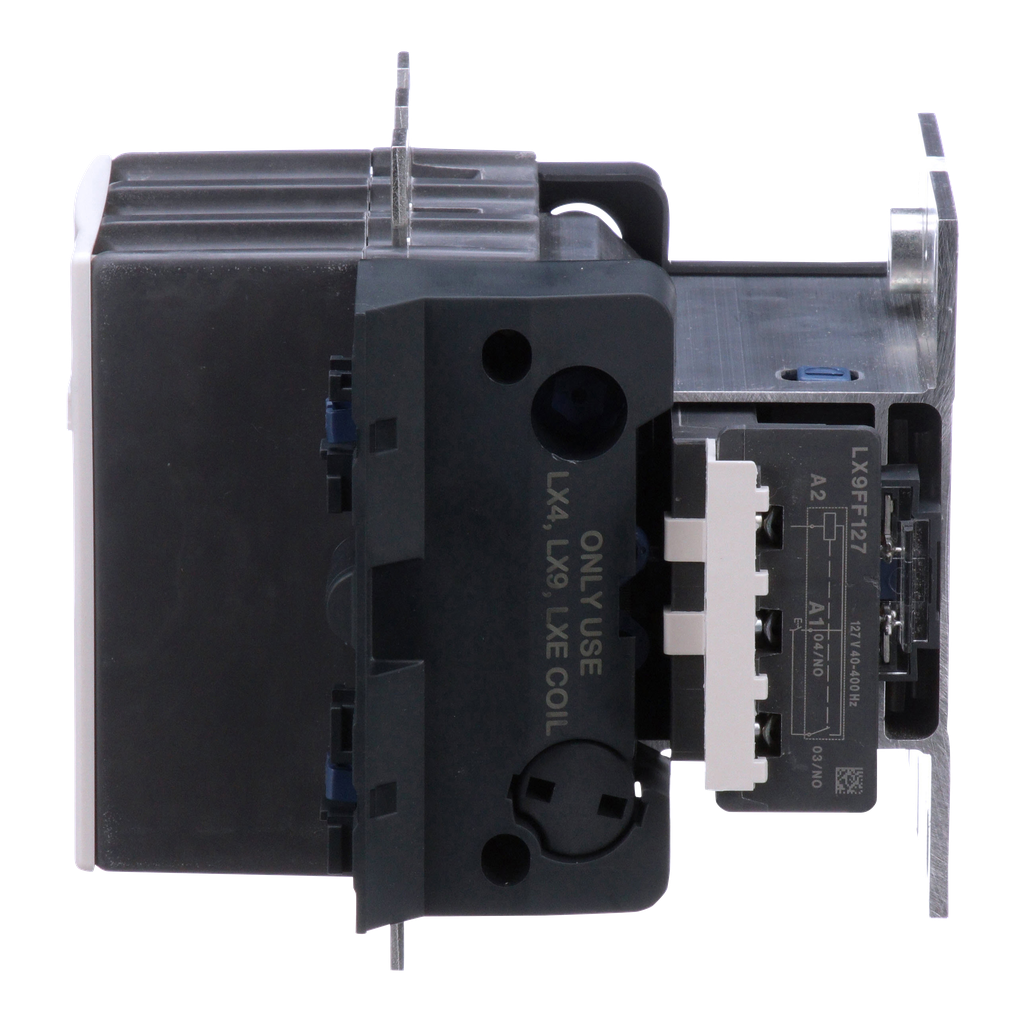

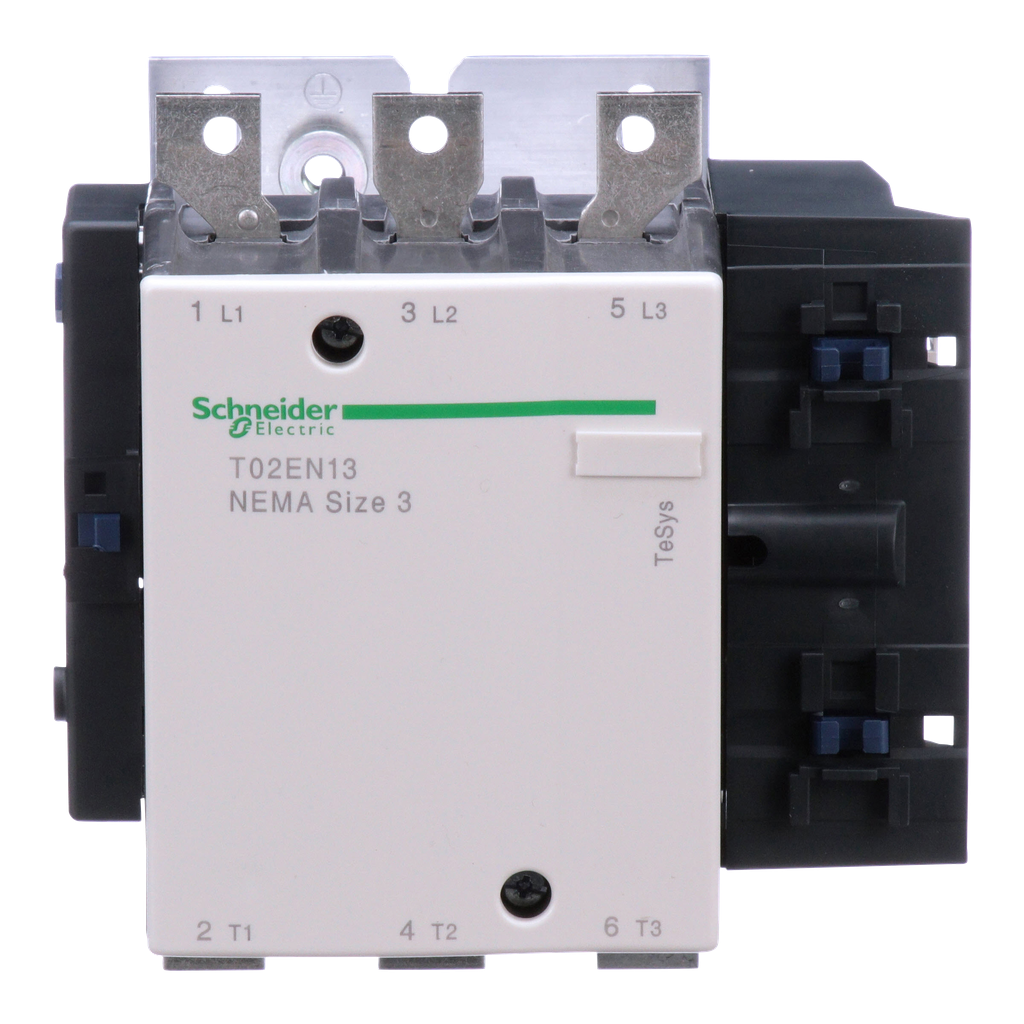

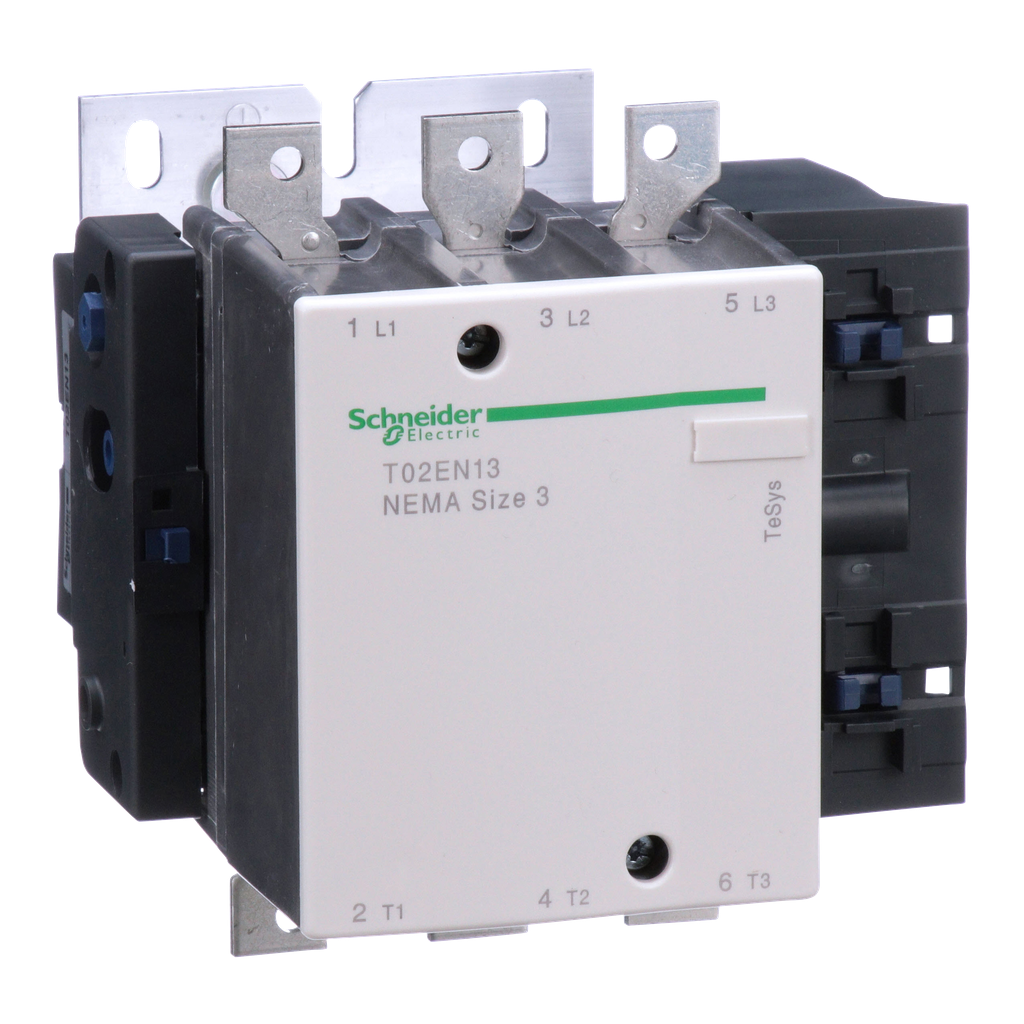

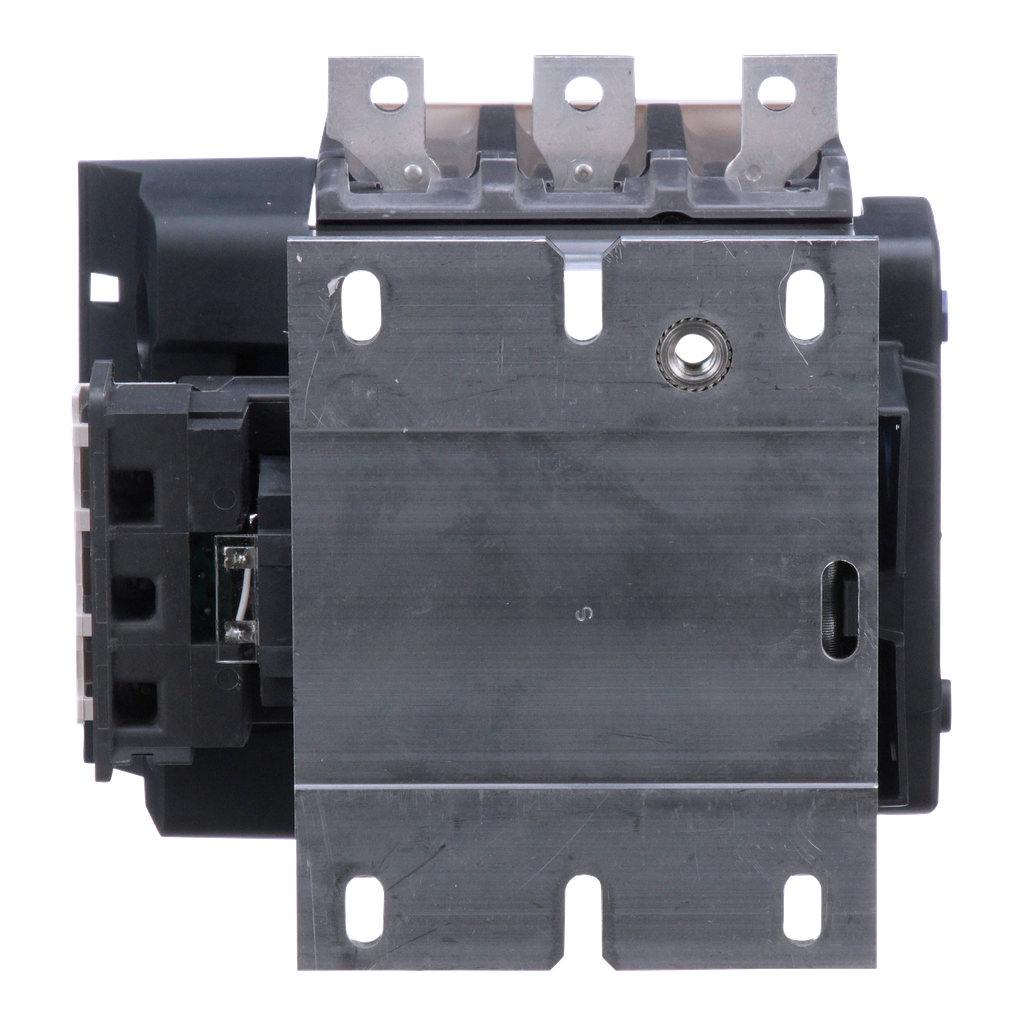

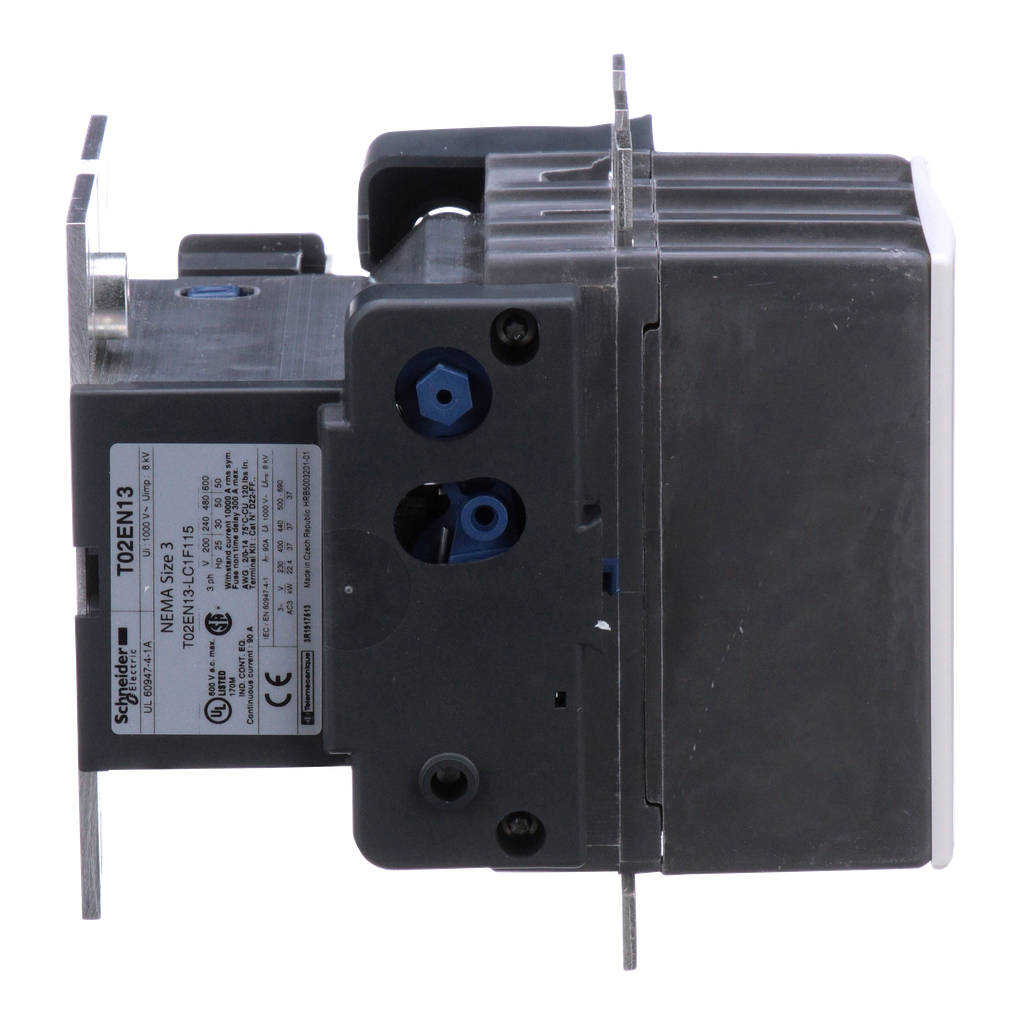

NEMA Contactor, TeSys N, nonreversing, Size 3, 90A, 50HP at 460VAC, 3 pole, 3 phase, 120VAC 50/60Hz coil, open

• Range Of Product: TeSys N
• Nema Size: 3
• Contactor Application: non-reversing
• Product Or Component Type: contactor
• Maximum Horse Power Rating: 25 hp 200 V AC || 30 hp 230 V AC || 50 hp 460 V AC || 50 hp 575 V AC

Environmental

• Product Certifications: UL Listed || CSA
• Nema Degree Of Protection: not rated (open device)

Complementary

• [Uc] Control Circuit Voltage: 120 V AC
• Height: 6.38 in
• Auxiliary Contact Composition: 1 NO
• Poles Description: 3P
• Line Rated Current: 90 A
• Electrical Connection: lugs ordered separately
• Control Circuit: common control circuit
• Width: 6.44 in
• Depth: 6.68 in
• Phase: 3 phase
• Net Weight: 8.90 lb(US)
• [Ue] Rated Operational Voltage: 600 V AC

Offer Sustainability

• China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
• Circularity Profile: ENVEOLI100418
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP080208EN
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Compliant
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
