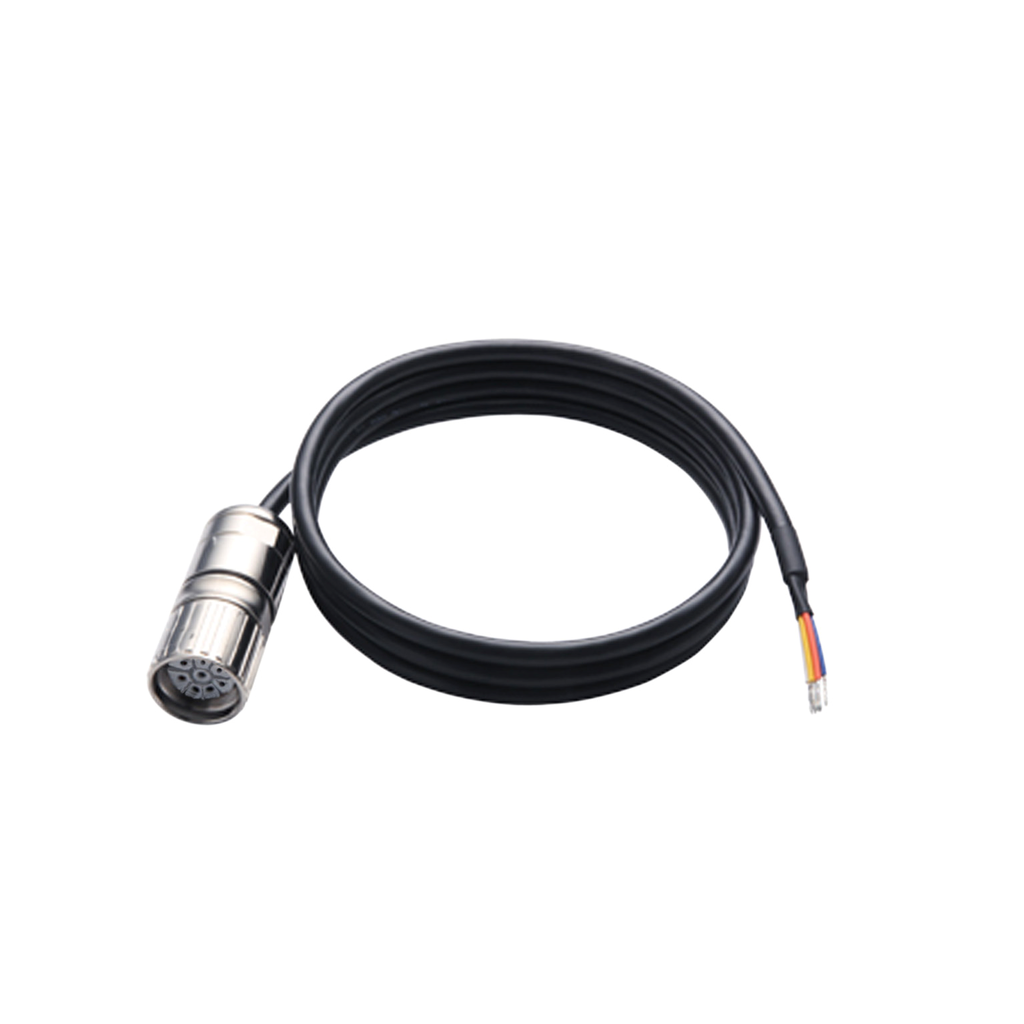

power cordset 4x1,5mm² + 2x1mm² + 2x0,14mm² 10 m one end w M23 industrial con.

• Range Of Product: Altivar
• Cable Length: 10 m
• Accessory / Separate Part Category: connection accessories
• Range Compatibility: Altivar Machine ATV320 || Altivar 32
• Accessory / Separate Part Type: power cable
• Type Of Cable: shielded cable
• Accessory / Separate Part Destination: between synchronous motor and variable speed drive

Contractual warranty

• Warranty: 18 months

Complementary

• Product Compatibility: synchronous motor BMP 140 mm, 1 C || synchronous motor BMP 100 mm, 2 R || synchronous motor BMP 100 mm, 2 F || synchronous motor BMP 140 mm, 1 F || synchronous motor BMP 140 mm, 2 C || synchronous motor BMP 70 mm, 1 R || synchronous motor BMP 70 mm, 1 F || synchronous motor BMP 70 mm, 2 R || synchronous motor BMP 70 mm, 2 F || synchronous motor BMP 100 mm, 1 R || synchronous motor BMP 100 mm, 1 F
• Electrical Connection: 1 connector M23 8 synchronous motor side || 1 free end variable speed drive side
• Cable Composition: 4 x 1.5 mm² + 2 x 1 mm² + 2 x 0.14 mm²
• Net Weight: 2.44 kg

Offer Sustainability

• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1112048EN
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP111248EN
• Sustainable Offer Status: Green Premium product
• Pvc Free: Yes
• Toxic Heavy Metal Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
