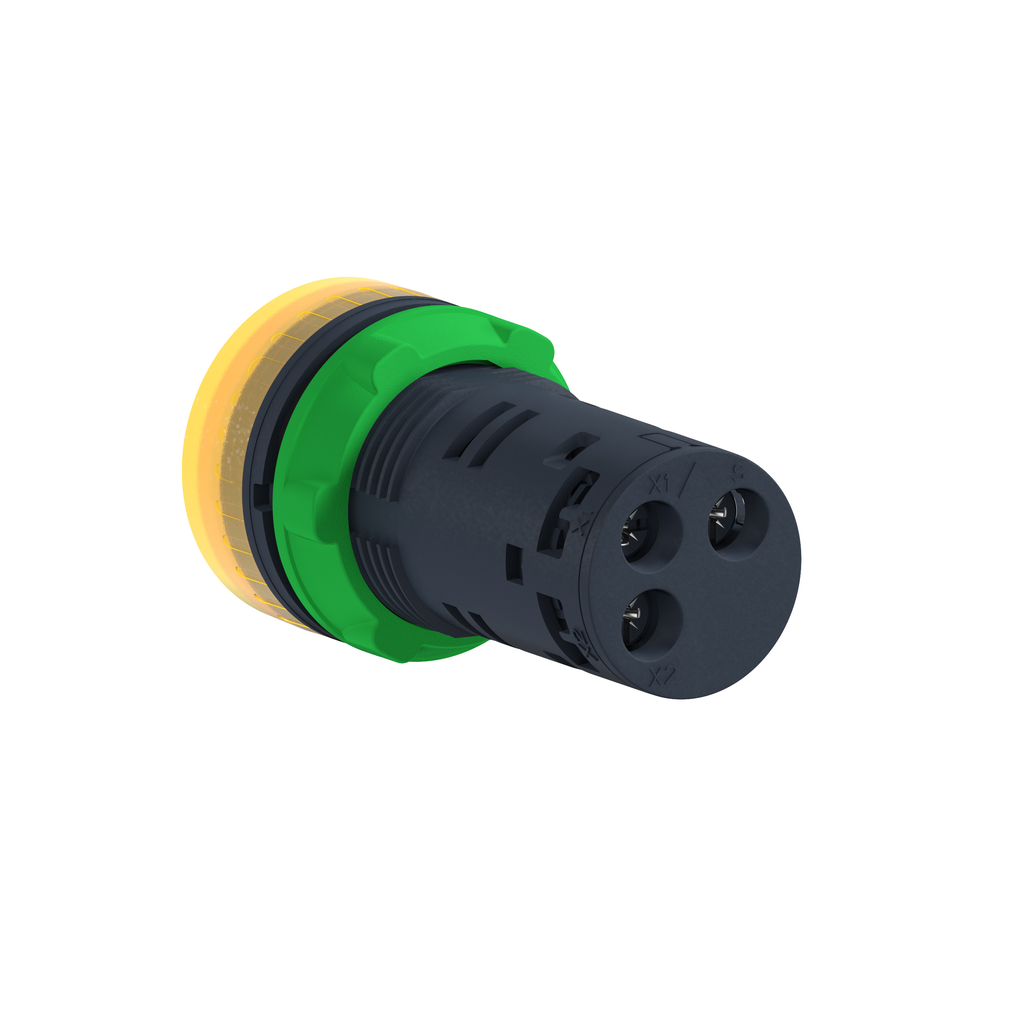

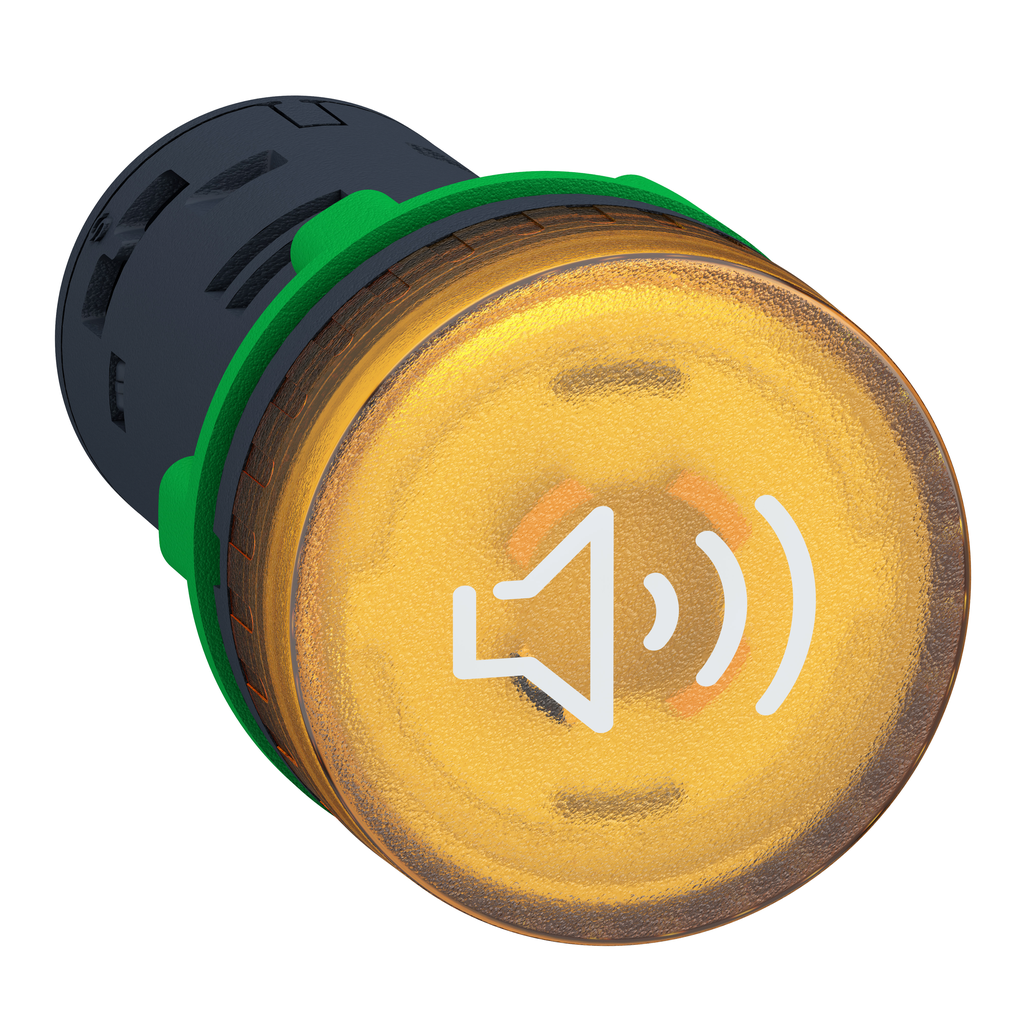

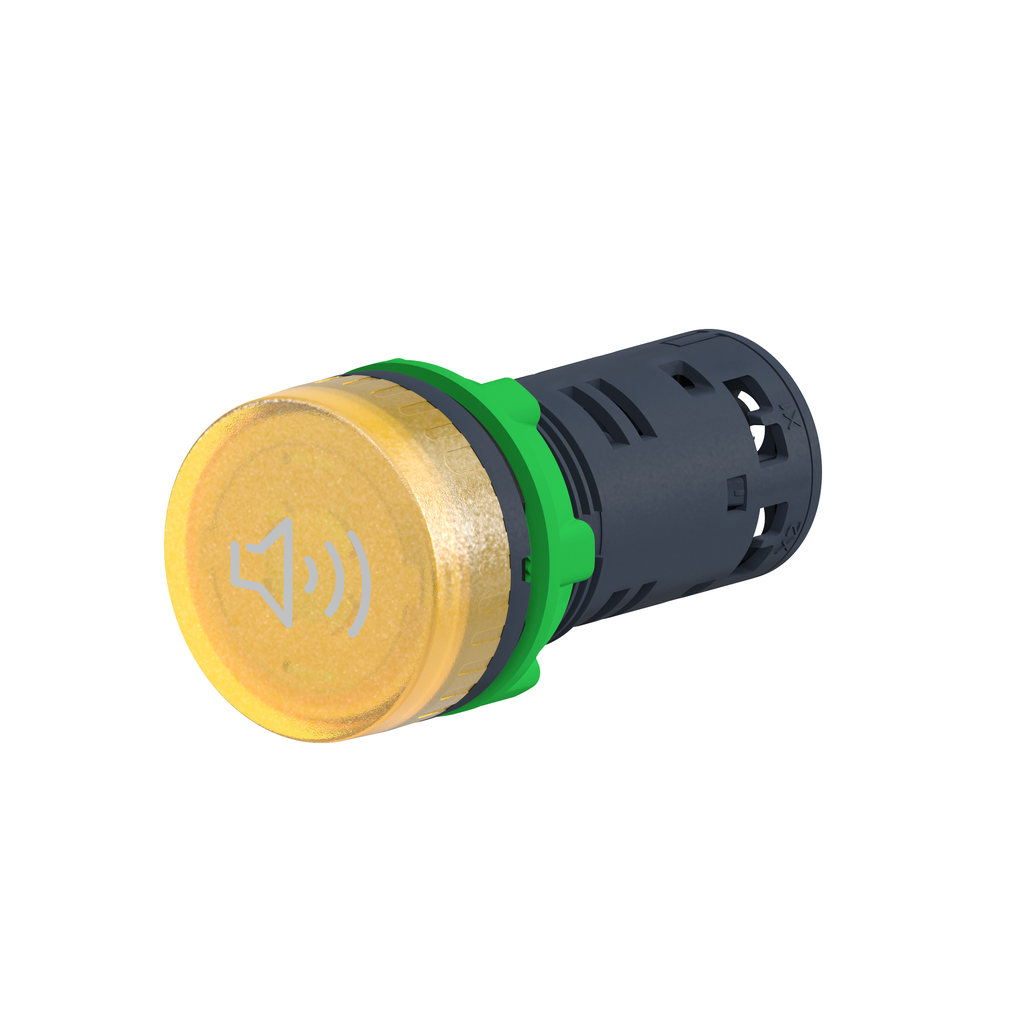

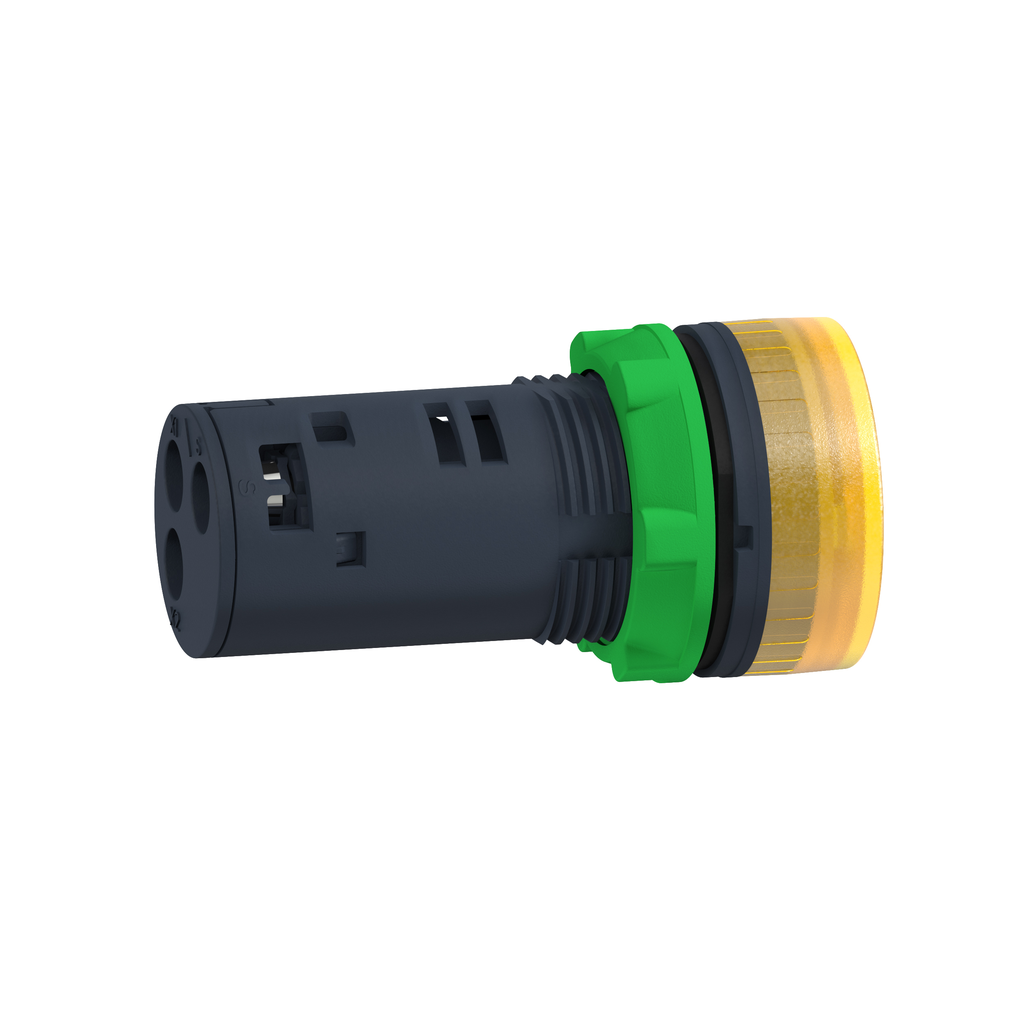

Harmony XB5, Illuminated buzzer, plastic, yellow, Ø22, continuous or intermittent tone, 24 V AC/DC

• Range Of Product: Harmony XB5
• Mounting Diameter: 22 mm
• Product Or Component Type: annunciator
• Cap/Operator Or Lens Colour: yellow
• Bezel Material: plastic

Complementary

• [Us] Rated Supply Voltage: 24 V +/- 10 %
• Height: 29 mm
• Net Weight: 0.024 kg
• Current Consumption: <= 58 mA
• Resistance To High Pressure Washer: 9000000 Pa 80 °C 0.1 m
• Noise Level: 90 dB 6.8 kHz 0.1 m +/- 10 %
• Signalling Type: continuous or intermittent tone
• Supply Circuit Type: AC/DC
• Width: 29 mm
• Depth: 55 mm
• Supply Frequency: 50/60 Hz

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1710008EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: UL Listed || CSA || BV
• Ambient Air Temperature For Operation: -40-70 °C
• Standards: IEC 60947-1 || JIS C8201-5-1 || UL 508 || IEC 60947-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || EN 60947-5-1 || EN 60947-1 || EN 60947-5-4 || JIS C8201-1 || IEC 60529 || EN 50102 || IEC 50102
• Ik Degree Of Protection: IK05 || IK03
• Nema Degree Of Protection: NEMA 4X || NEMA 13
• Ambient Air Temperature For Storage: -40-70 °C
• Overvoltage Category: class II IEC 60536
• Protective Treatment: TH
• Ip Degree Of Protection: IP20 || IP66 || IP67 || IP69 || IP69K
