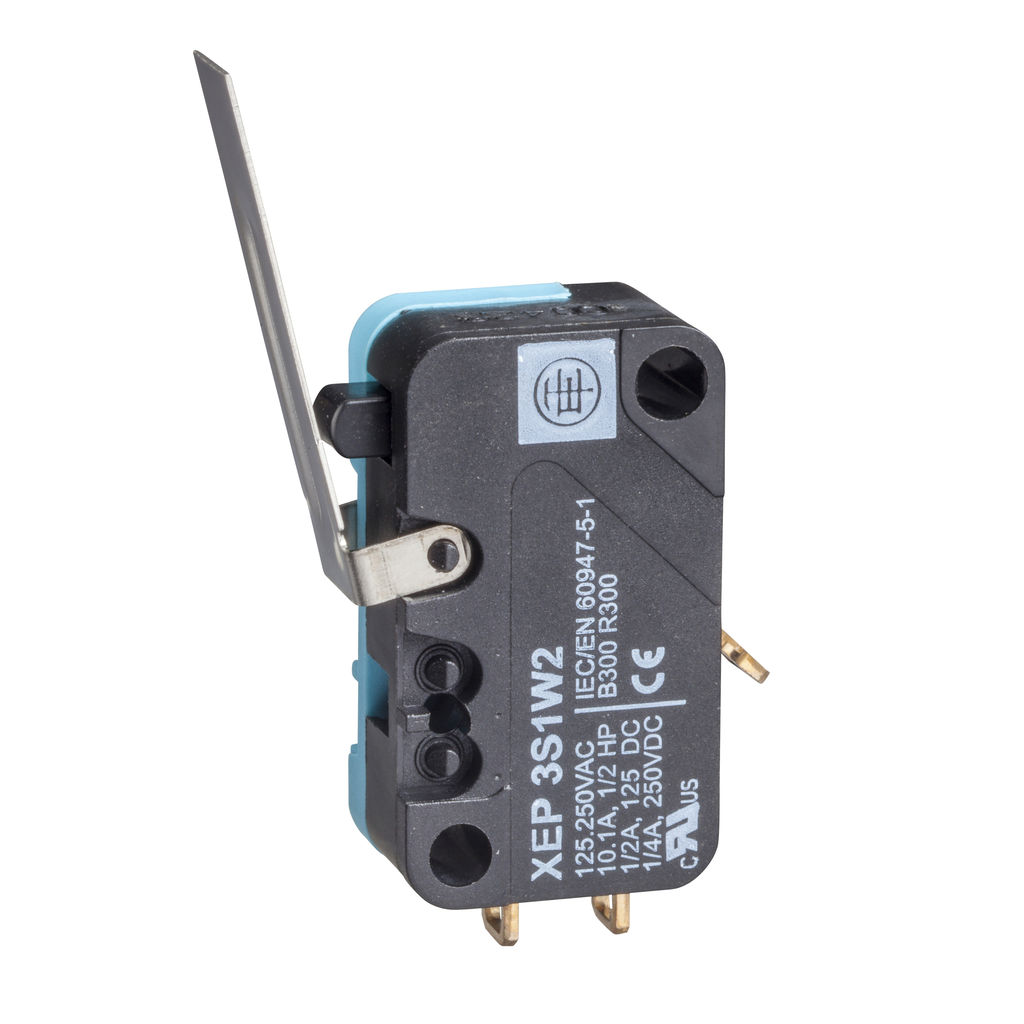

Microswitch, Limit switches XC Standard, miniature limit switch, flat lever, solder tags

• Switch Actuation: horizontal
• Series Name: special format
• Lever Fixing Position: B
• Contacts Type And Composition: 1 C/O standard
• Movement Of Operating Head: linear
• Type Of Approach: lateral approach
• Range Of Product: OsiSense XC
• Electrical Connection: solder tags
• Contact Operation: snap action
• Contacts Material: AgNi
• Detector Design: miniature, DIN 41635 A format
• Type Of Operator: flat lever
• Lever Material: stainless steel
• Product Or Component Type: microswitch
• Device Short Name: XEP3
• Head Type: plunger head

Contractual warranty

• Warranty: 18 months

Complementary

• Maximum Permissible End Of Travel Force: 10 N lever fixing position in B || 13 N lever fixing position in C || 5 N lever fixing position in A
• Height: 16 mm
• Maximum Differential Travel: 0.53 mm lever fixing position in C || 0.7 mm lever fixing position in B || 1.4 mm lever fixing position in A
• Terminals Description Iso N°1: (1-2-4)OC
• Inter Contact Distance: 0.4 mm
• Minimum Over Travel: 1.8 mm lever fixing position in C || 2.4 mm lever fixing position in B || 4.8 mm lever fixing position in A
• Mechanical Durability: 20000000 cycles
• Body Material: polyester
• Tripping Point: 15.2 mm lever fixing position in A || 15.2 mm lever fixing position in B || 15.2 mm lever fixing position in C
• Maximum Force For Tripping: 0.2 N lever fixing position in A || 0.4 N lever fixing position in B || 0.53 N lever fixing position in C
• Minimum Release Force: 0.05 N lever fixing position in A || 0.1 N lever fixing position in B || 0.13 N lever fixing position in C
• Contact Code Designation: B300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN/IEC 60947-5-1 appendix A
• Width: 10 mm
• [Ith] Conventional Free Air Thermal Current: 15 A 250 V 50/60 Hz
• Depth: 28 mm
• Net Weight: 6.3 g

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP110614EN
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes

Environment

• Ambient Air Temperature For Operation: -25-125 °C
• Standards: UL 1054 || IEC 60947-5-1 || EN 61058 || EN 60947-5-1 || cURus
• Marking: CE
• Ip Degree Of Protection: IP40
