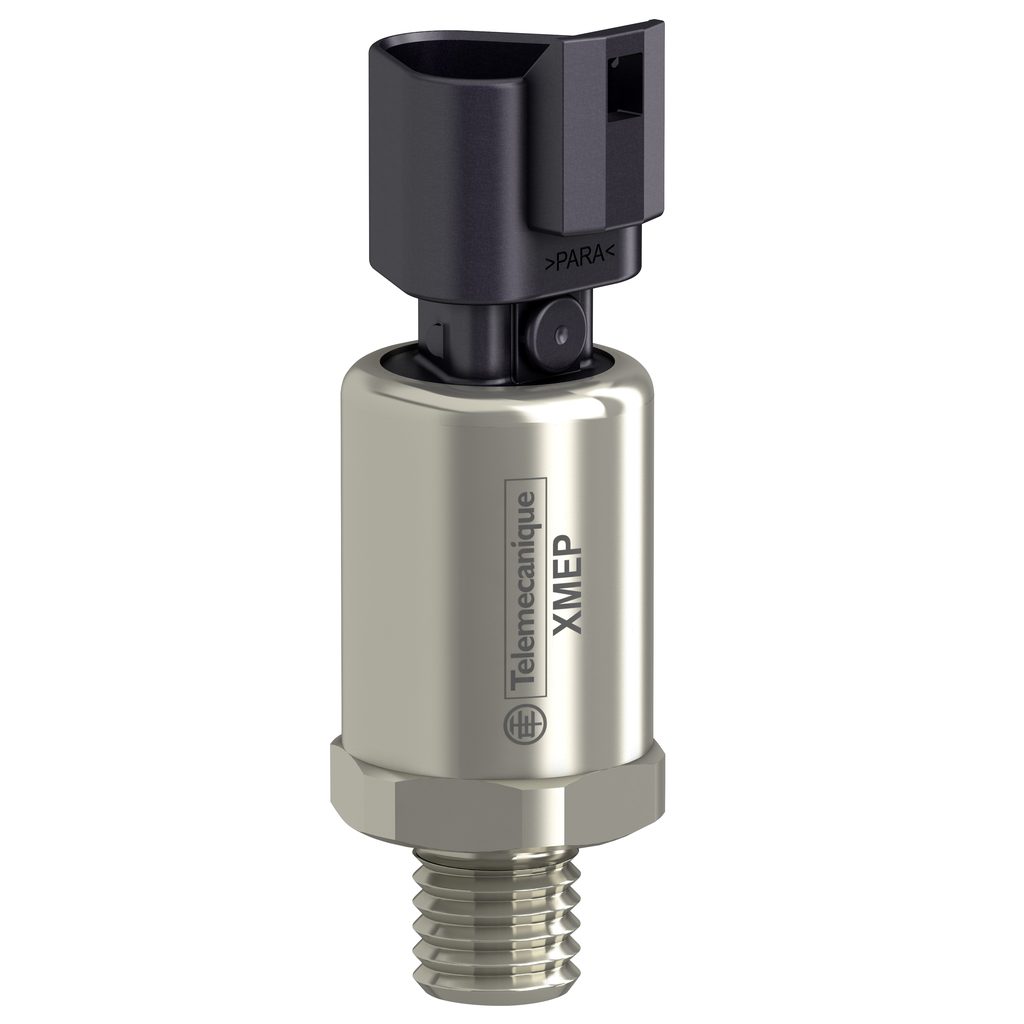

Electronic pressure sensors, Pressure sensors XM, transmitter, XMEP, 3000 PSI, 1/4"18NPT, 0...10 V, Deutsch, set of 1

• Pressure Sensor Type: pressure transmitter
• Pressure Sensor Size: 3000 psi
• Analogue Output Function: 0...10 V, 3-wire
• Type Of Output Signal: analogue
• Controlled Fluid: fresh water 0-125 °C) || air -40-125 °C) || hydraulic oil -40-125 °C)
• Range Of Product: Telemecanique Pressure sensors XM
• Electrical Connection: DEUTSCH connector DT04-3P 3 pins
• Quantity Per Set: set of 1
• Electrical Circuit Type: control circuit
• Product Or Component Type: electronic pressure sensors
• Type Of Packing: individual
• [Us] Rated Supply Voltage: 24 V DC SELV 12-36 V)
• Local Display: without
• Pressure Sensor Name: XMEP
• Current Consumption: < 7 mA
• Fluid Connection Type: 1/4" - 18 NPT (male)

Complementary

• Accuracy: 0.1 % of the measuring range
• Diameter: 26 mm
• [Uimp] Rated Impulse Withstand Voltage: 0.5 kV
• Repeat Accuracy: +/- 0.5 % of the measuring range
• Mechanical Durability: 10000000 cycles
• Drift Of The Zero Point: +/- 0.02 % of measuring range/°K
• Operating Position: any position
• Measurement Accuracy: +/- 0.5 % of the measuring range
• Electromagnetic Compatibility: electrostatic discharge immunity test ISO 10605 criteria A 15 kV air, 15 kV contact || susceptibility to electromagnetic fields ISO 11452-2 criteria A 100 V/m 200…2000 MHz || susceptibility to electromagnetic fields ISO 11452-4 criteria A 100 mA 20…400 MHz || susceptibility to conducted disturbances EN/IEC 61000-4-6 criteria A 30 V 0.15...80 MHz || electrical fast transient/burst immunity test EN/IEC 61000-4-4 criteria A 4 kV || susceptibility to conducted transient disturbances ISO 7637-2 criteria B level 3
• Protection Type: load short-circuit || reverse polarity
• Drift Of The Sensitivity: +/- 0.02 % of measuring range/°K
• Maximum Permissible Accidental Pressure: 9000 psi
• Materials In Contact With Fluid: stainless steel AISI 316L
• Length: 63.4 mm
• Destruction Pressure: 18000 psi
• Net Weight: 0.098 kg
• Response Time On Output: <= 2 ms 10...90 % of full scale
• Pressure Setting Range: 0-3000 psi

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1511013EN
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Product Certifications: cULus || E2 || CE
• Ambient Air Temperature For Operation: -40-100 °C
• Ambient Air Temperature For Storage: -50-100 °C
• Standards: ISO 13766 || UL 61010-1 || ECE 10R-5 || ISO 14982 || EN 13309 || EN/IEC 61326-2-3
• Shock Resistance: 50 gn 11 ms EN/IEC 60068-2-27
• Vibration Resistance: 12 gn sinus 20-520 Hz) test 4 ISO 16750-3 || 18 gn random 10-2000 Hz) test 4 ISO 16750-3
• Ip Degree Of Protection: IP65 conforming to EN/IEC 60529 || IP67 conforming to EN/IEC 60529 || IP69K conforming to EN/IEC 60529
