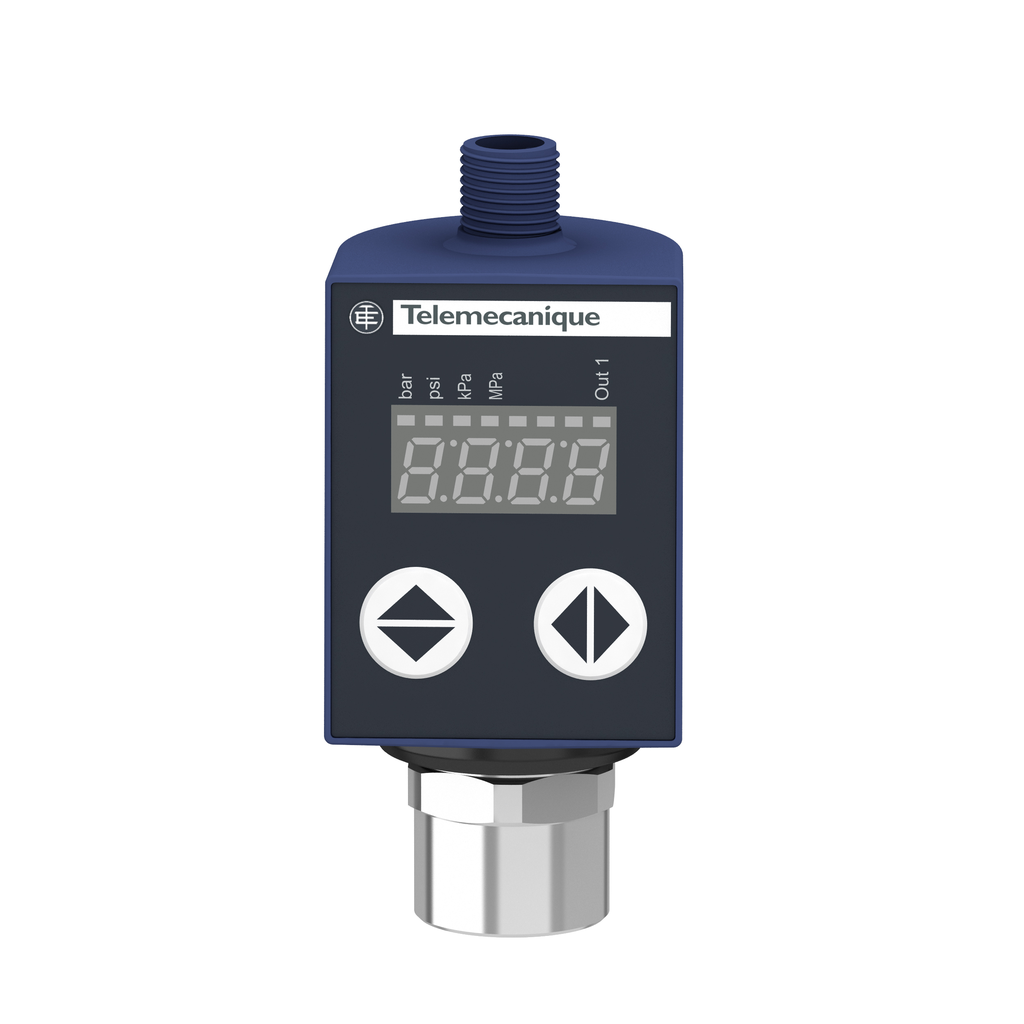

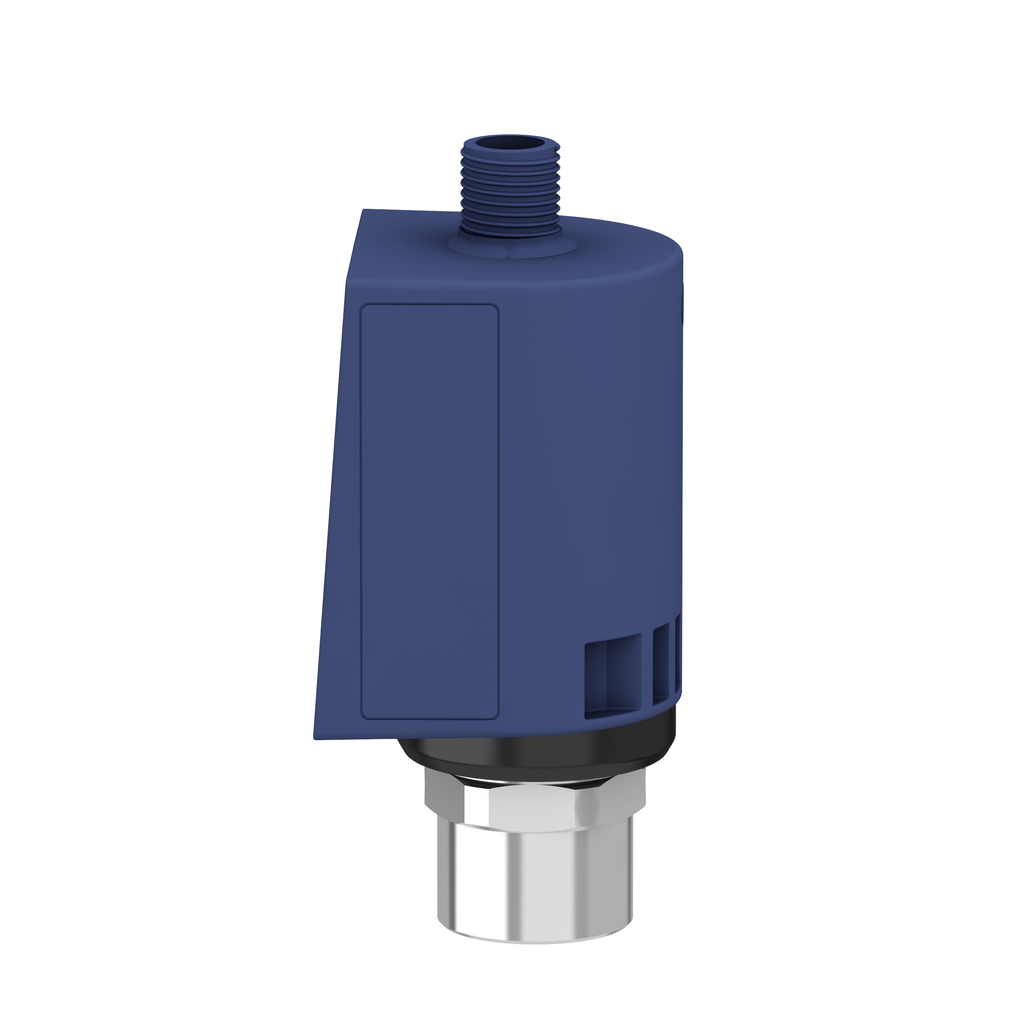

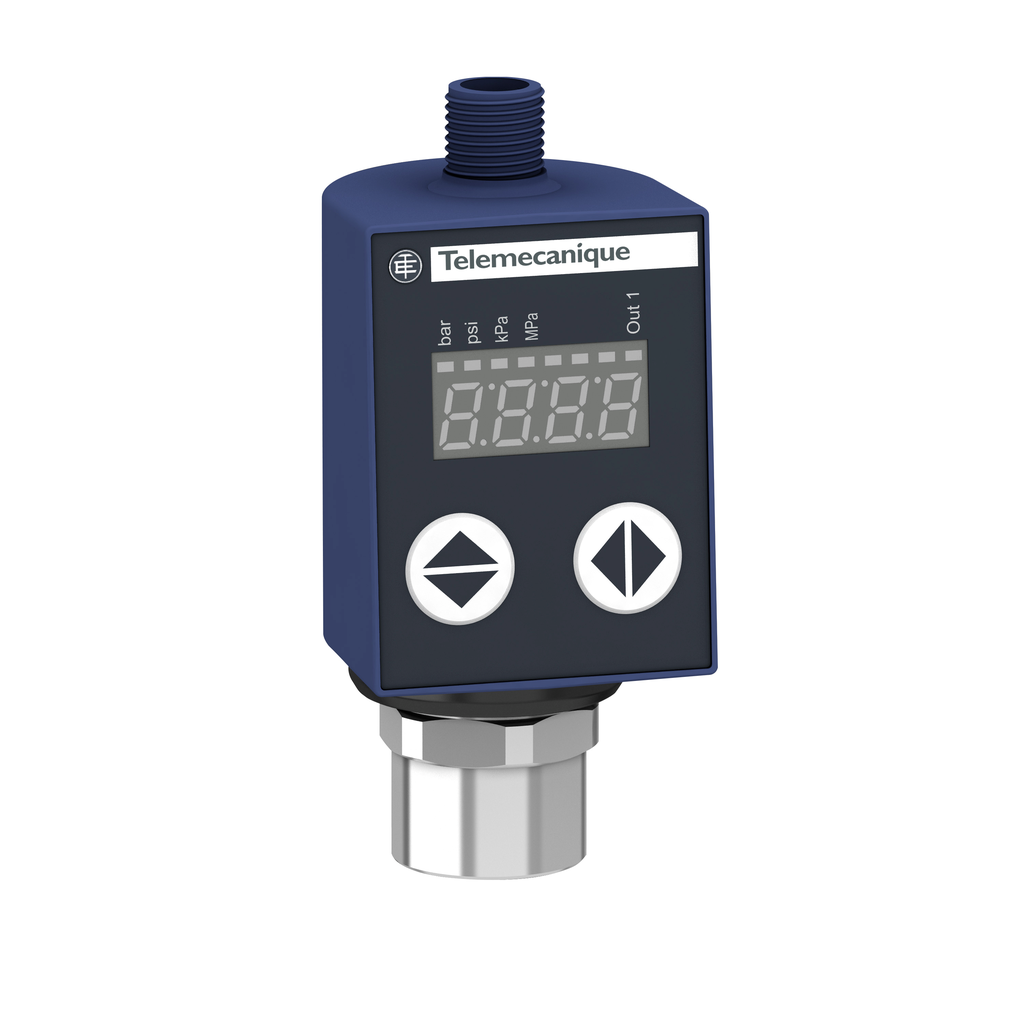

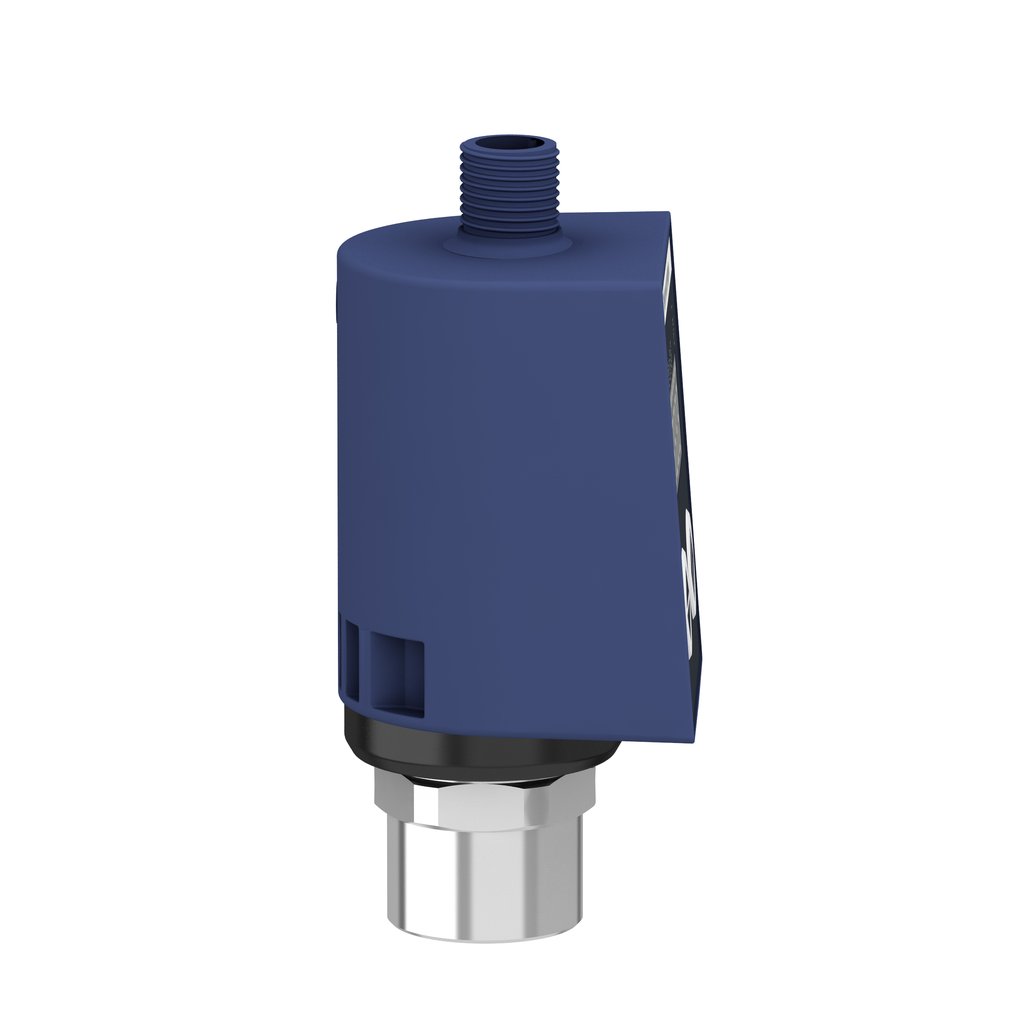

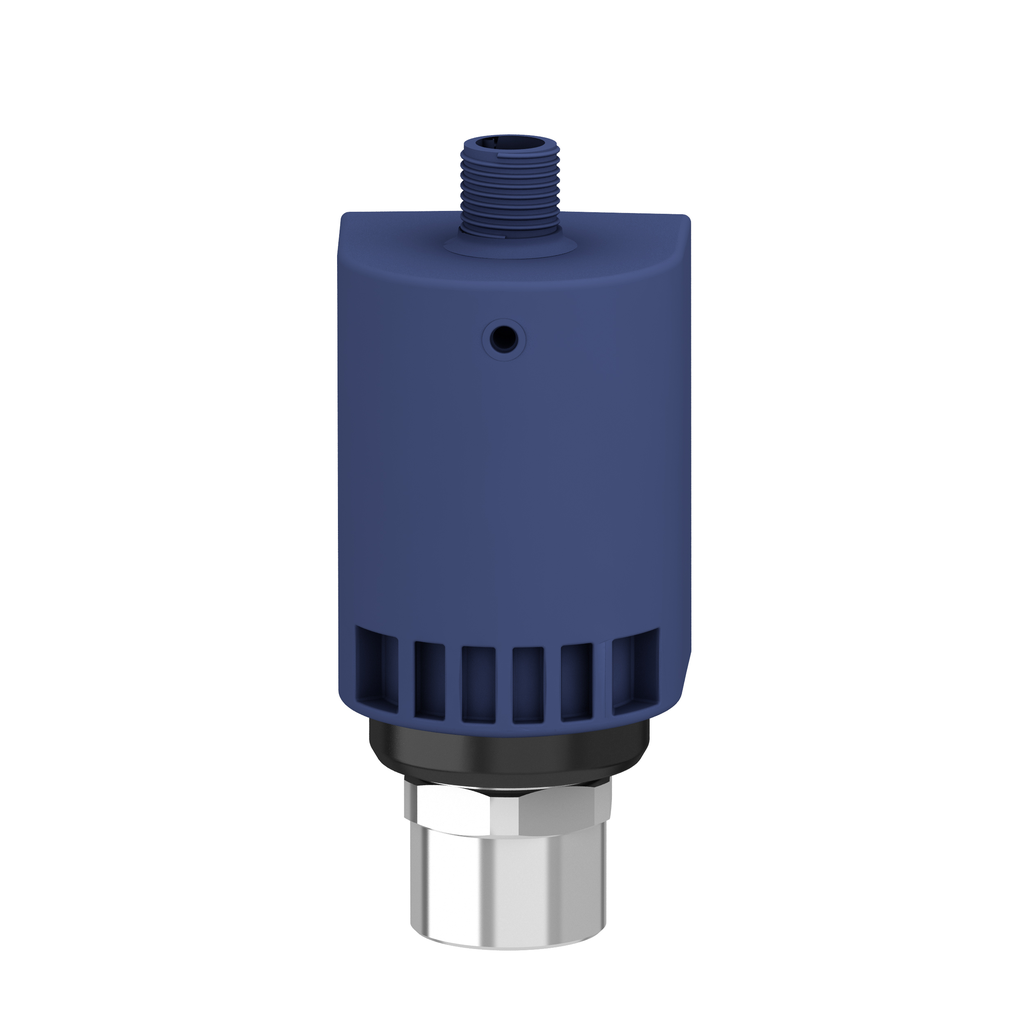

Electronic pressure sensors, Pressure sensors XM, XMLR 40 bar, G 1/4, 24 VDC, 4...20 mA, PNP, M12

• Pressure Sensor Type: pressure transmitter
• Range Of Product: Telemecanique Pressure sensors XM
• Pressure Switch Type Of Operation: pressure transmitter with 1 switching output
• Product Or Component Type: electronic pressure sensors
• Fluid Connection Type: G 1/4 (female) DIN 3852-Y
• Pressure Sensor Size: 580 psi || 40 bar
• Controlled Fluid: fresh water 0-80 °C) || air -20-80 °C) || hydraulic oil -20-80 °C) || refrigeration fluid -20-80 °C)
• Maximum Permissible Accidental Pressure: 2175 psi || 15 MPa || 150 bar
• [Us] Rated Supply Voltage: 24 V DC SELV 17-33 V)
• Destruction Pressure: 150 bar || 2175 psi || 15 MPa
• Device Short Name: XMLR

Complementary

• Display Accuracy: <= 1 % of the measuring range
• Electrical Connection: male connector M12, 4 pins
• Height: 93 mm
• Accuracy: <= 1 % of the measuring range
• Linearity Error: <= 0.5 % of the measuring range
• Type Of Output Signal: analogue + discrete
• Display Response Time Type: fast 50 ms || normal 200 ms || slow 600 ms
• Maximum Voltage Drop: 2 V
• Repeat Accuracy: <= 0.2 % of the measuring range
• Drift Of The Zero Point: +/- 0.1 % of measuring range/°C
• Time Delay Range: 0...50 s in steps of 1 second
• Electromagnetic Compatibility: susceptibility to electromagnetic fields 10 V/m 80...2000 MHz EN/IEC 61000-4-3 || immunity to conducted RF disturbances 10 V 0.15...80 MHz EN/IEC 61000-4-6 || surge immunity test 1 kV EN/IEC 61000-4-5 || electrical fast transient/burst immunity test 2 kV EN/IEC 61000-4-4 || electrostatic discharge immunity test 8 kV air, 4 kV contact EN/IEC 61000-4-2
• Maximum Switching Current: 250 mA
• Adjustable Range Of Switching Point On Falling Pressure: 29-563 psi || 2-38.8 bar || 0.2-3.88 MPa
• Operating Position: any position, but disposals can falsified the measurement in case of upside down mounting
• Materials In Contact With Fluid: 316L stainless steel || fluorocarbon FKM (Viton) || ceramic
• Net Weight: 0.19 kg
• Minimum Differential Travel: 1.2 bar || 17.4 psi || 120 kPa
• Current Consumption: <= 50 mA
• Contacts Type And Composition: NO/NC programmable
• Maximum Delay First Up: 300 ms
• Analogue Output Function: 4...20 mA
• Scale Type: fixed differential
• Local Signalling: for light ON when switch is actuated 1 LED (yellow)
• Mechanical Durability: 10000000 cycles
• Housing Material: 316L stainless steel || polyacrylamide
• Measurement Accuracy: <= 0.6 % of the measuring range
• Protection Type: overvoltage protection || short-circuit protection || reverse polarity || overload protection
• Adjustable Range Of Switching Point On Rising Pressure: 0.32-4 MPa || 46.4-580 psi || 3.2-40 bar
• Drift Of The Sensitivity: +/- 0.03 % of measuring range/°C
• Width: 41 mm
• Display Type: 4 digits 7 segments
• Front Material: polyester
• [Uimp] Rated Impulse Withstand Voltage: 0.5 kV DC
• Hysteresis: <= 0.2 % of the measuring range
• Depth: 42 mm
• Response Time On Output: <= 10 ms analog output || <= 5 ms discrete output
• Discrete Output Type: solid state PNP, NO/NC programmable

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: EAC || cULus
• Ambient Air Temperature For Operation: -20-80 °C
• Standards: UL 61010-1 || EN/IEC 61326-2-3
• Shock Resistance: 50 gn EN/IEC 60068-2-27
• Marking: CE
• Vibration Resistance: 20 gn 10-2000 Hz)EN/IEC 60068-2-6
• Ip Degree Of Protection: IP65 conforming to EN/IEC 60529 || IP67 conforming to EN/IEC 60529
• Ambient Air Temperature For Storage: -40-80 °C
