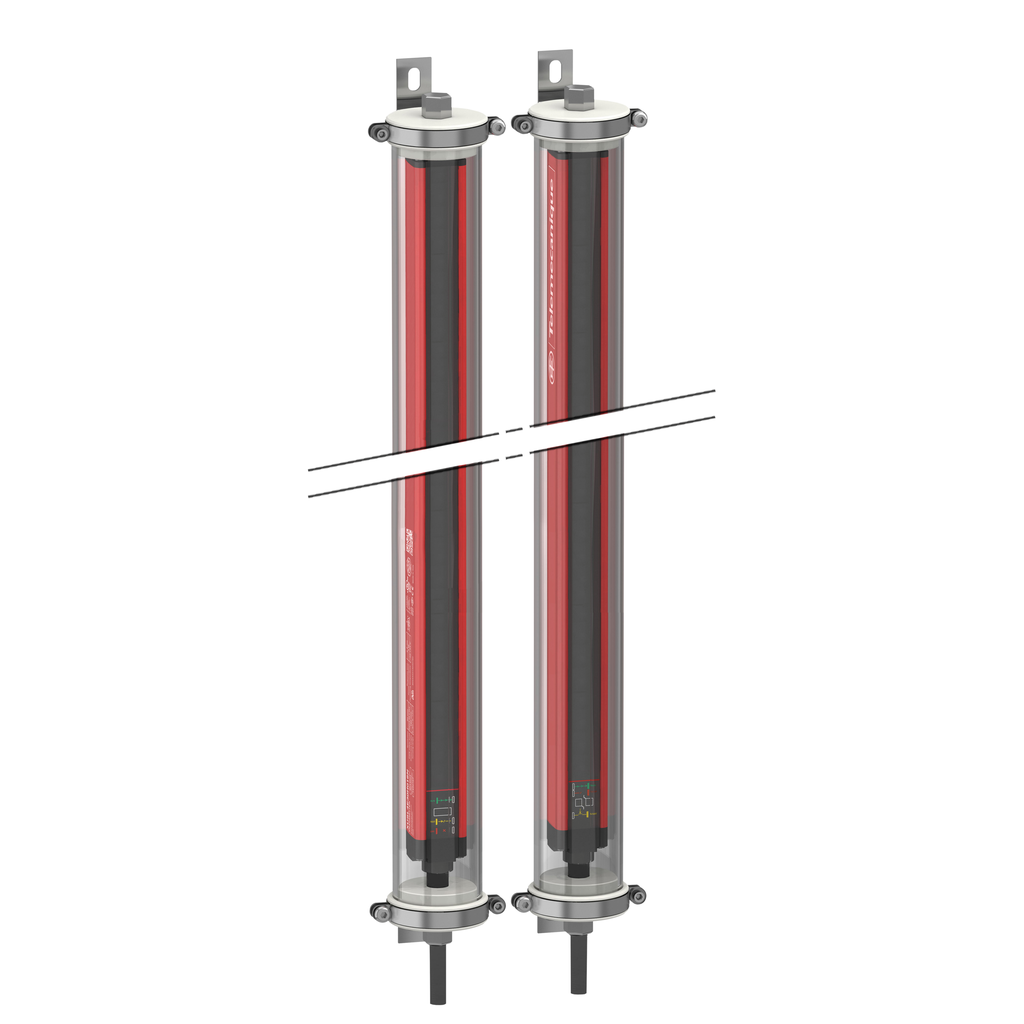

Safety light curtain type 2, Telemecanique Safety light curtains XUSL, XUSL IP69K Hand protection with Heating, Std range, Hp = 760 mm, R=30 mm

• Minimum Object Diameter For Detection: 30 mm
• Range Of Product: Telemecanique Safety light curtains XUSL
• Height Protected: 760 mm
• Control Type: selected by wiring
• Product Specific Application: for hand protection
• Number Of Beams: 38
• Product Or Component Type: safety light curtain type 2
• [Sn] Nominal Sensing Distance: 3-10 m by cabling || 0-3 m by cabling
• Output Type: 2 safety outputs OSSD solid-state PNP arc suppression)
• Device Short Name: XUSL2E
• Type Of Start: manual || automatic

Contractual warranty

• Warranty: 18 months

Complementary

• Electrical Connection: 1 male connector M12 5 pins transmitter || 1 male connector M12 8 pins receiver
• Function Available: test || muting through external safety module XPSLCMUT1160 || LED display of operating modes and faults || anti-condensation system
• Current Consumption: 42 mA no-load transmitter || 83 mA no-load receiver || 42 mA transmitter || 900 mA with maximum load receiver
• Housing Colour: red RAL 3000
• Maximum Power: 10 W
• Offer Type: standard distance
• Fixing Mode: by fixing brackets
• Material: PMMA (polymethyl methacrylate) tube || stainless steel AISI 316L sealing plug || PVC (polyvinyl chloride) Cable
• [Ie] Rated Operational Current: 2 A
• Kit Composition: adjustable mounting bracket(s) || 1 receiver(s) || 1 transmitter(s) || 1 user guide with certificate of conformity on CD-ROM || silicone o-ring(s) || 1 PVC cable(s)
• Type Of Cable: unshielded cable AWG 22 10-10 m
• Emission: IR LED 950 nm
• Output Voltage: 24 V
• Detection System: transmitter-receiver system
• Provided Equipment: with heating system
• Ohmic Cable Resistance: 55.31 mOhm
• Response Time: 11 ms
• Maximum Voltage Drop: <0.5 V
• Marking: CE
• Output Current Limits: 0.4 A safety outputs OSSD
• Supply: power supply IEC 61496-1 || power supply IEC 60204-1
• Output Circuit Type: DC
• [Eaa] Effective Aperture Angle: 5 ° at 3 m
• Net Weight: 5.05 kg
• Local Signalling: 1 multi-colour LED transmitter || 2 dual colour LEDs receiver
• [Us] Rated Supply Voltage: 24 V DC +/- 20 %

Offer Sustainability

• Circularity Profile: ENVEOLI1406015EN
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1406015EN
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes

Environment

• Product Certifications: Ecolab || cULus || CE || TÜV
• Ambient Air Temperature For Operation: -30-55 °C || -13-131 °F
• Directives: 98/37/EEC - machinery || 89/655/EEC - work equipment || 89/336/EEC - electromagnetic compatibility
• Ambient Air Temperature For Storage: -30-70 °C || -13-158 °F
• Service Life: 20 year(s)
• Relative Humidity: 0-95 % without condensation
• Safety Reliability Data: PFHd = 4.57E-8 1/h IEC 61508
• Shock Resistance: 10 gn 16 ms IEC 61496-1
• Environmental Characteristic: resistance to light disturbance EN/IEC 61496-2
• Vibration Resistance: 0.35 +/- 0.05 mm 10-55 Hz)IEC 61496-1
• Ip Degree Of Protection: IP69K
• Safety Level: type 2 IEC 61496-1 || category 2 EN/ISO 13849-1 || SIL 1 IEC 61508 || SILCL 1 IEC 62061 || PL = c EN/ISO 13849-1
