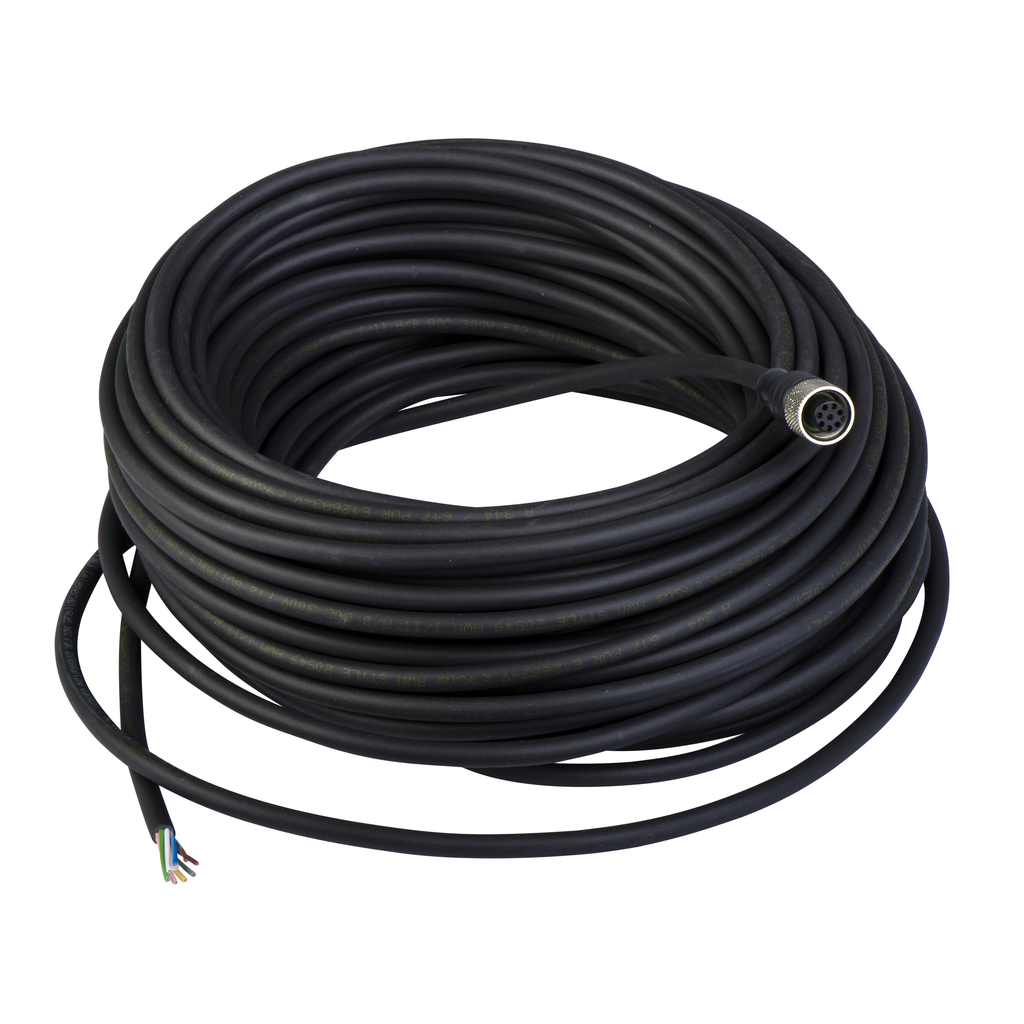

Pre wired connectors XZ, straight female, M12, 8 pins, cable PUR 25 m

• Range Of Product: Telemecanique Cabling components
• Accessory / Separate Part Category: cabling accessory
• Accessory / Separate Part Type: pre-wired connectors

Complementary

• Collar Material: stainless steel 316L
• Electrical Connection: straight female connector M12, 8 pins
• Cable Outer Diameter: 5.2 mm
• Minimum Insulating Resistance: 1 GΩ
• Wire Insulation Material: PUR
• [Ue] Rated Operational Voltage: 250 V AC || 300 V DC
• Cable Connector Fixing: screw-on
• Cable Length: 25 m
• Line Rated Current: 2 A
• Cable Composition: 8 x 0.25 mm²
• Status Led: without
• Contact Resistance: 5000 µOhm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Product Certifications: cULus
• Ambient Air Temperature For Operation: -35-90 °C static || -5-90 °C flexing
• Ambient Air Temperature For Storage: -35-100 °C
• Ip Degree Of Protection: IP67
