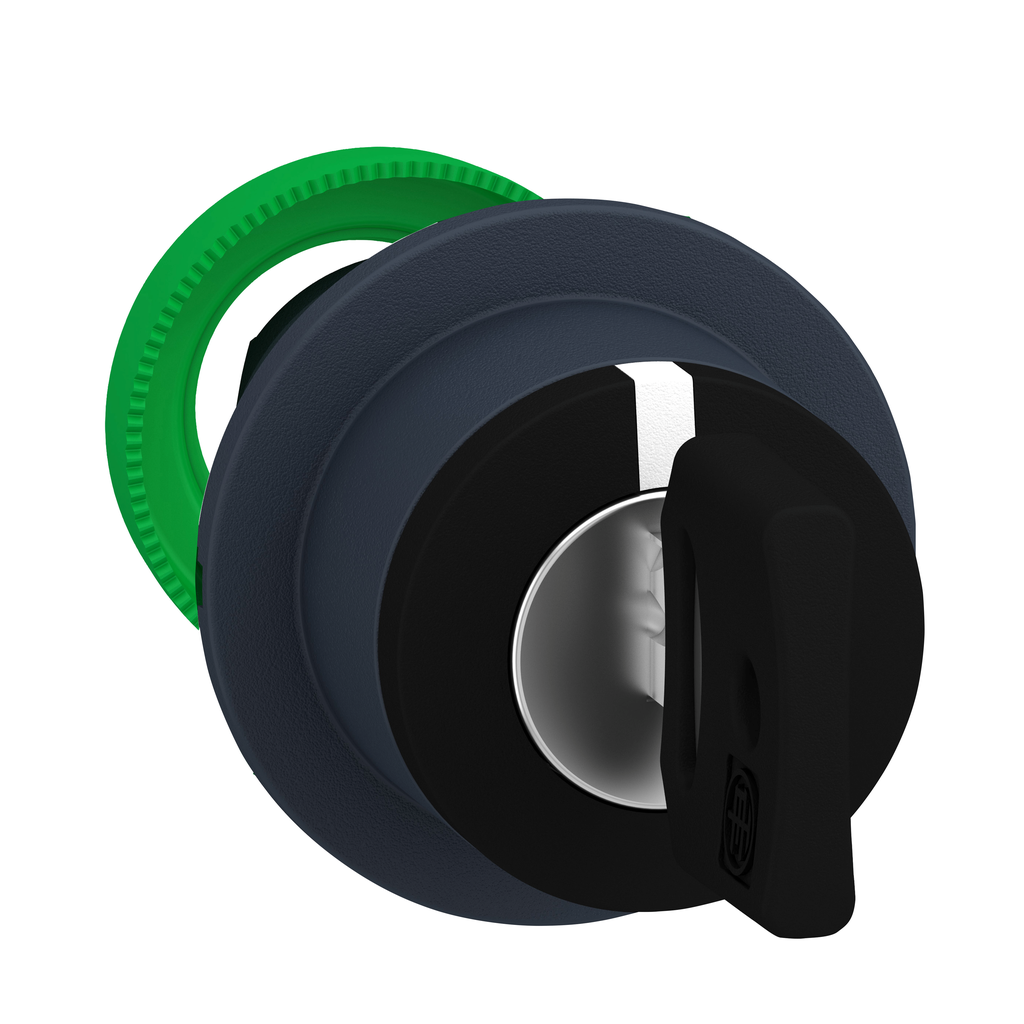

Head for key selector switch, Harmony XB5, flush mounted 455 3 pos return right to center

• Key Withdrawal Position: left and center
• Sale Per Indivisible Quantity: 1
• Range Of Product: Harmony XB5
• Bezel Material: dark grey plastic
• Operator Profile: black key switch
• Operator Position Information: 3 positions +/- 45°
• Mounting Diameter: 30.5 mm
• Type Of Operator: right to centre spring return
• Product Or Component Type: head for key selector switch
• Shape Of Signaling Unit Head: round
• Device Short Name: ZB5
• Type Of Keylock: key 455
• Head Type: built-in-flush

Complementary

• Mechanical Durability: 1000000 cycles
• Electrical Composition Code: C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3 single front mounting
• Cad Overall Width: 37 mm
• Cad Overall Depth: 72 mm
• Net Weight: 0.069 kg
• Cad Overall Height: 37 mm

Offer Sustainability

• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1710010EN
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1710010EN
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Product Certifications: DNV || GL || LROS (Lloyds register of shipping) || UL Listed || CSA || BV
• Ik Degree Of Protection: IK03 IEC 50102
• Ambient Air Temperature For Operation: -40-70 °C
• Ambient Air Temperature For Storage: -40-70 °C
• Overvoltage Category: class II IEC 60536
• Standards: EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || JIS C8201-1
• Nema Degree Of Protection: NEMA 13 || NEMA 4X
• Shock Resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance: 5 gn 2-500 Hz)IEC 60068-2-6
• Protective Treatment: TH
• Ip Degree Of Protection: IP66 IEC 60529 || IP67 || IP69 || IP69K
• Resistance To High Pressure Washer: 7000000 Pa 55 °C 0.1 m
