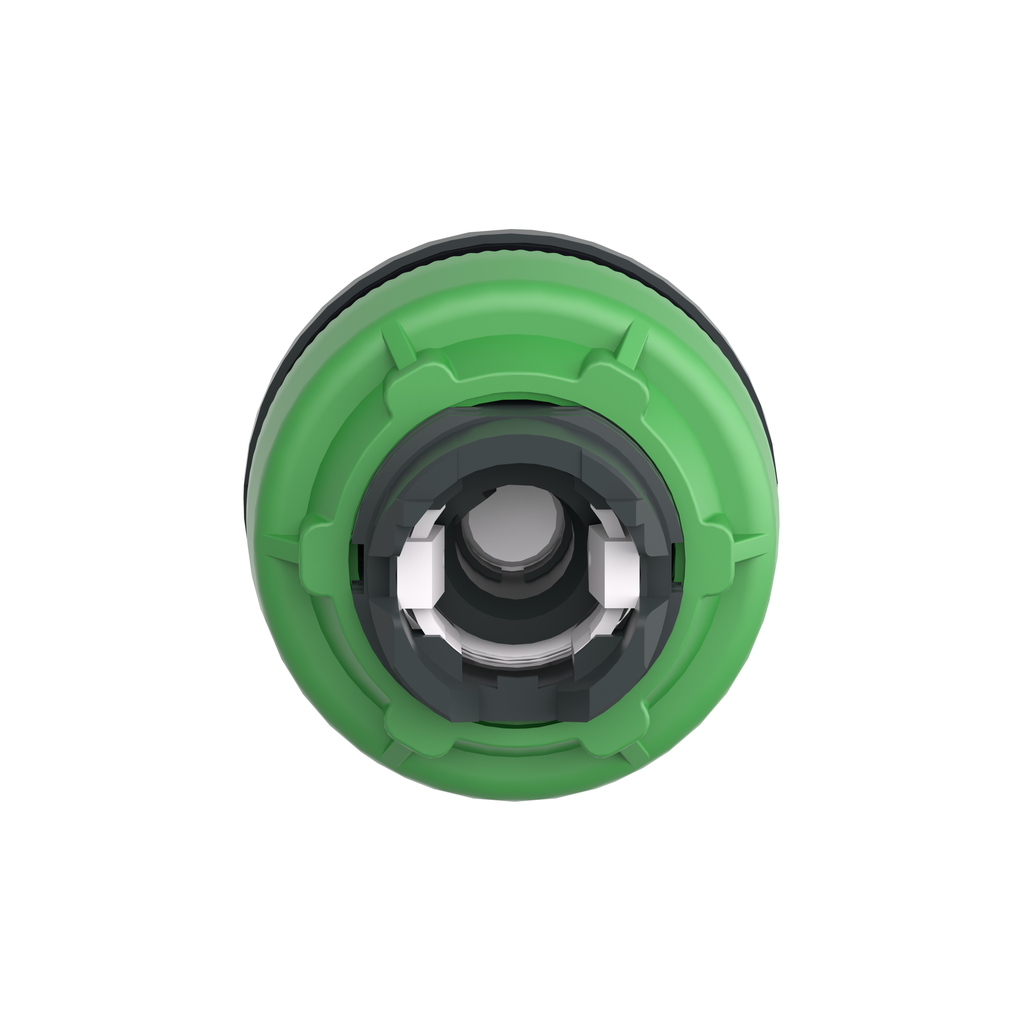

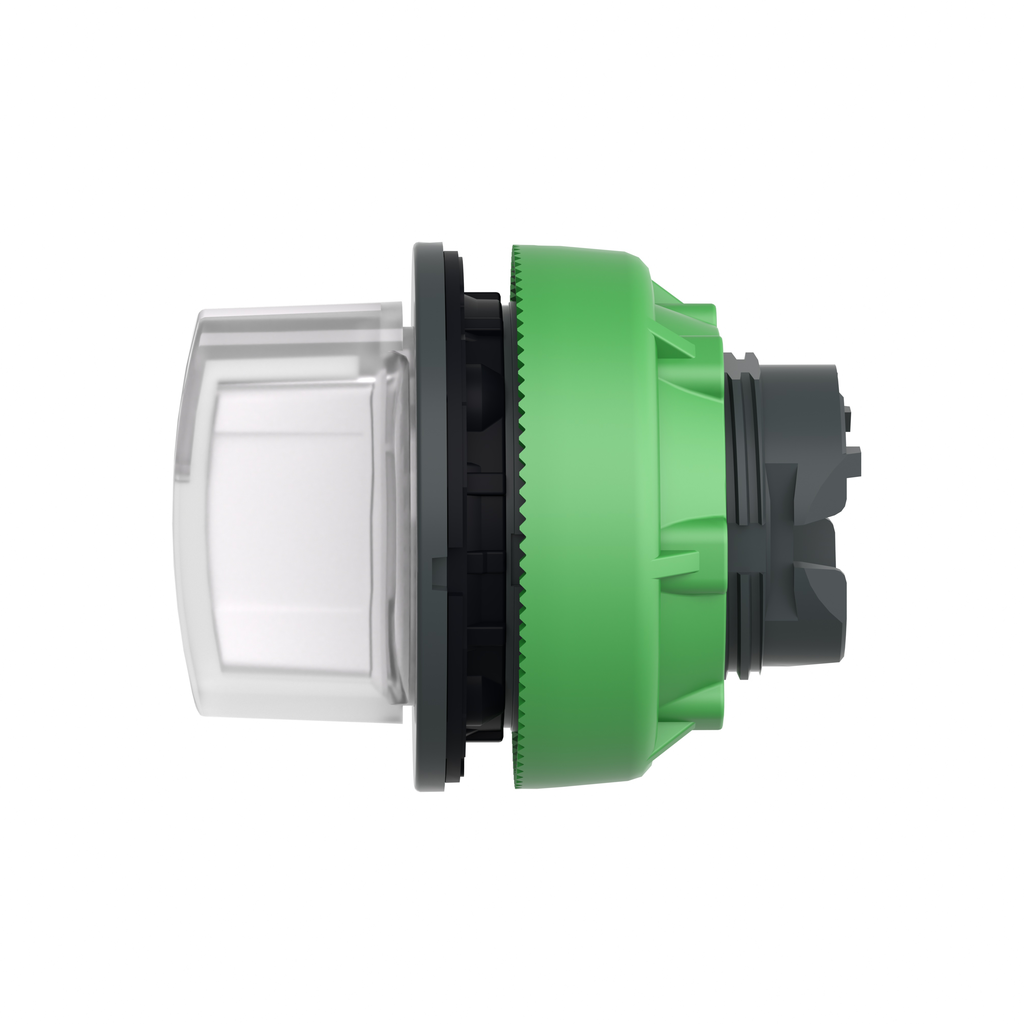

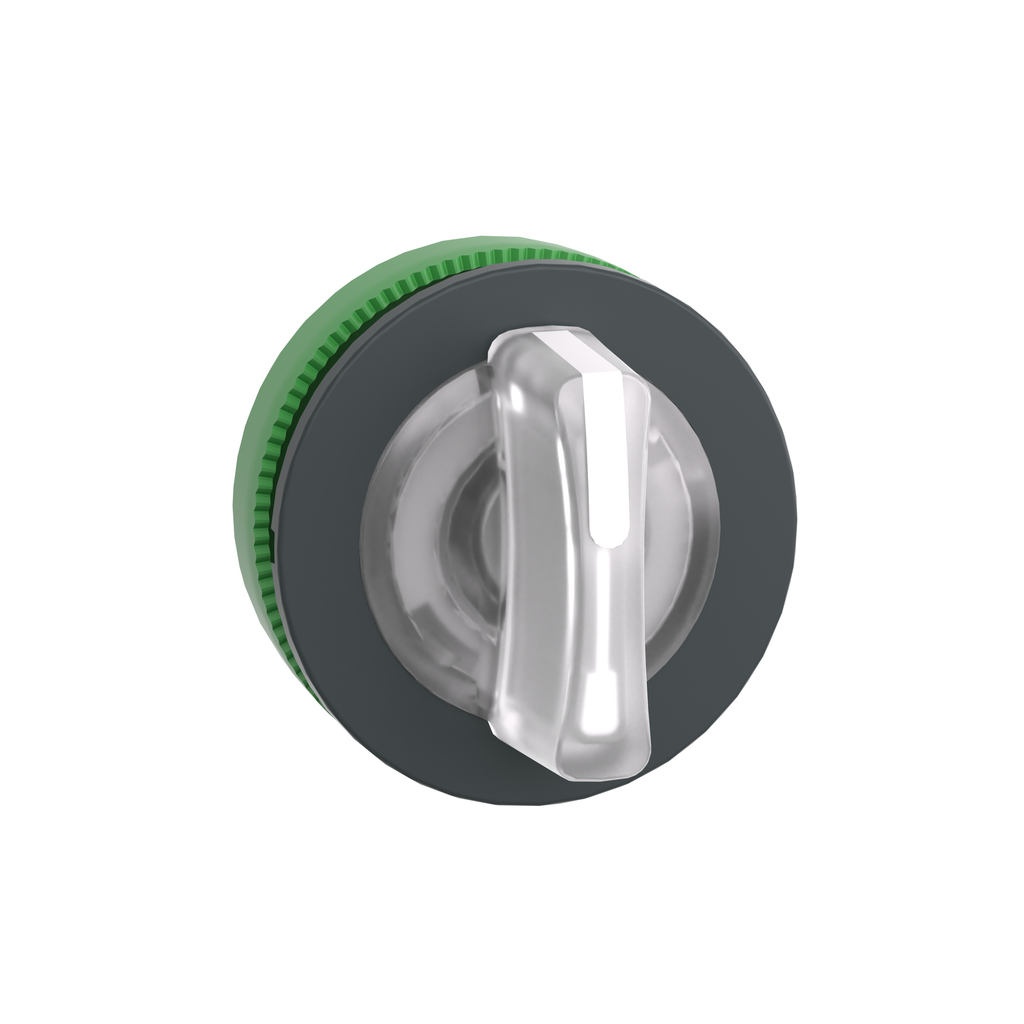

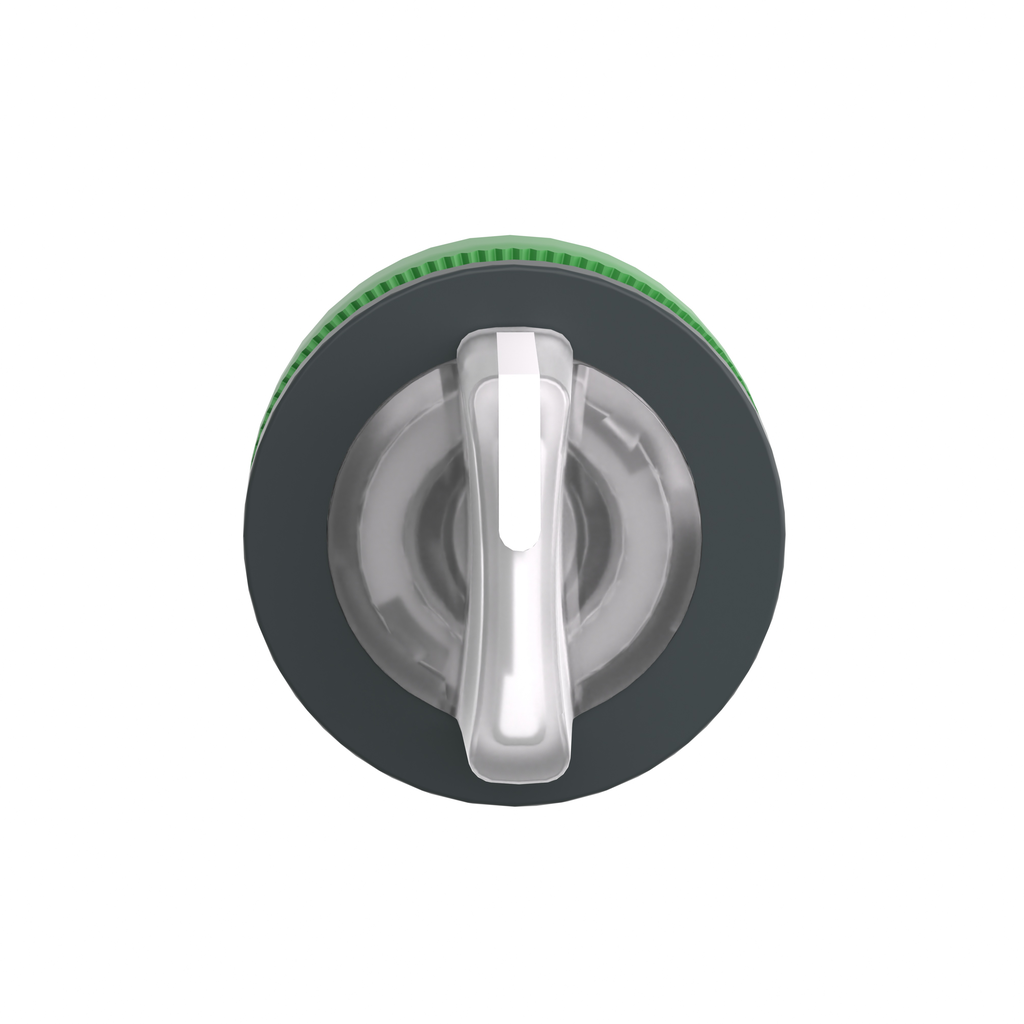

Head for illuminated selector switch, Harmony XB5, plastic, white handle, flush mounted, universal LED, 3 positions

• Range Of Product: Harmony XB5
• Mounting Diameter: 30.5 mm
• Type Of Operator: stay put
• Product Or Component Type: head for illuminated selector switch
• Shape Of Signaling Unit Head: round
• Head Type: built-in-flush
• Sale Per Indivisible Quantity: 1
• Bezel Material: dark grey plastic
• Operator Profile: white standard handle
• Operator Position Information: 3 positions +/- 45°
• Product Compatibility: universal LED
• Device Short Name: ZB5

Complementary

• Electrical Composition Code: M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
• Net Weight: 0.03 kg
• Cad Overall Height: 37 mm
• Mechanical Durability: 500000 cycles
• Cad Overall Width: 37 mm
• Cad Overall Depth: 46 mm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1710010EN
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1710010EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: LROS (Lloyds register of shipping) || BV || UL Listed || CSA || DNV || GL
• Ik Degree Of Protection: IK03 IEC 50102
• Ambient Air Temperature For Operation: -40-70 °C
• Standards: UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C8201-1
• Shock Resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance: 5 gn 2-500 Hz)IEC 60068-2-6
• Ip Degree Of Protection: IP66 IEC 60529 || IP67 || IP69 || IP69K
• Resistance To High Pressure Washer: 7000000 Pa 55 °C 0.1 m
• Ambient Air Temperature For Storage: -40-70 °C
• Overvoltage Category: class II IEC 60536
• Nema Degree Of Protection: NEMA 13 || NEMA 4X
• Protective Treatment: TH
