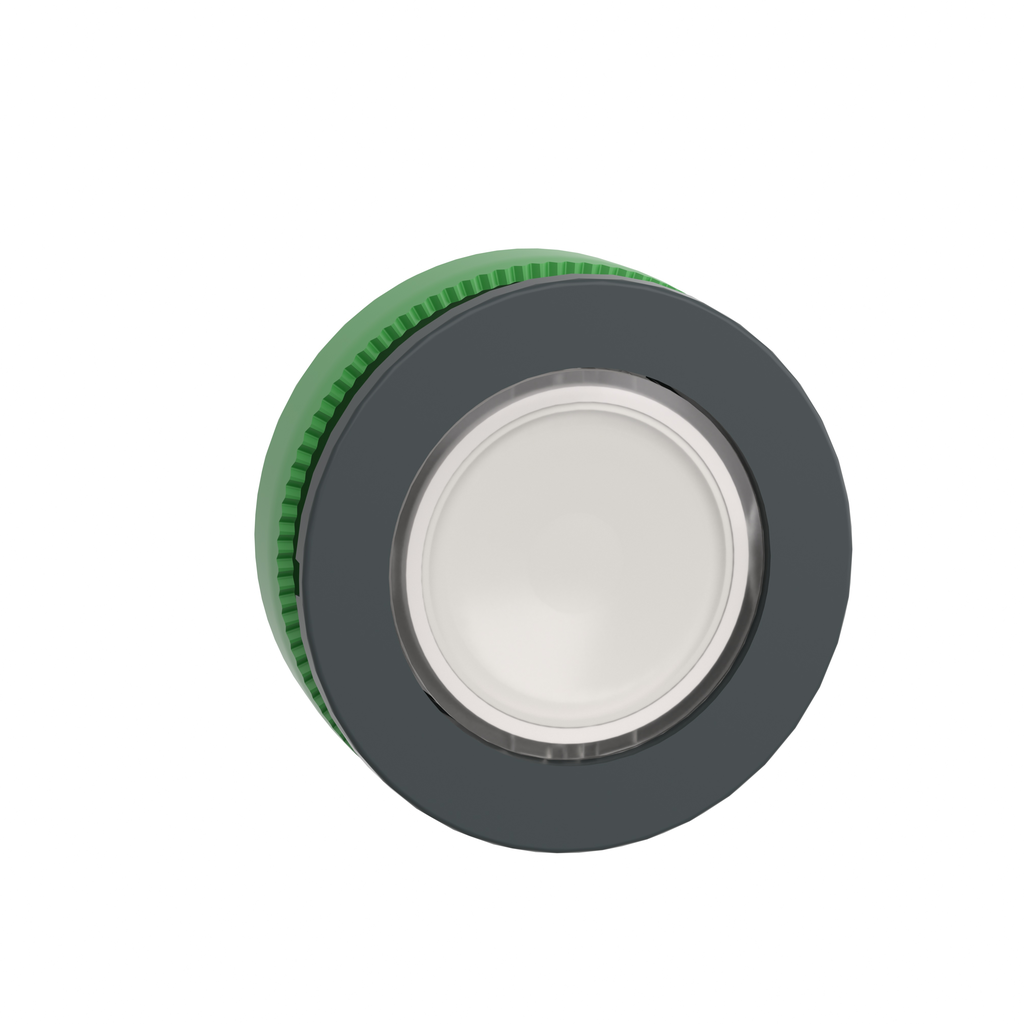

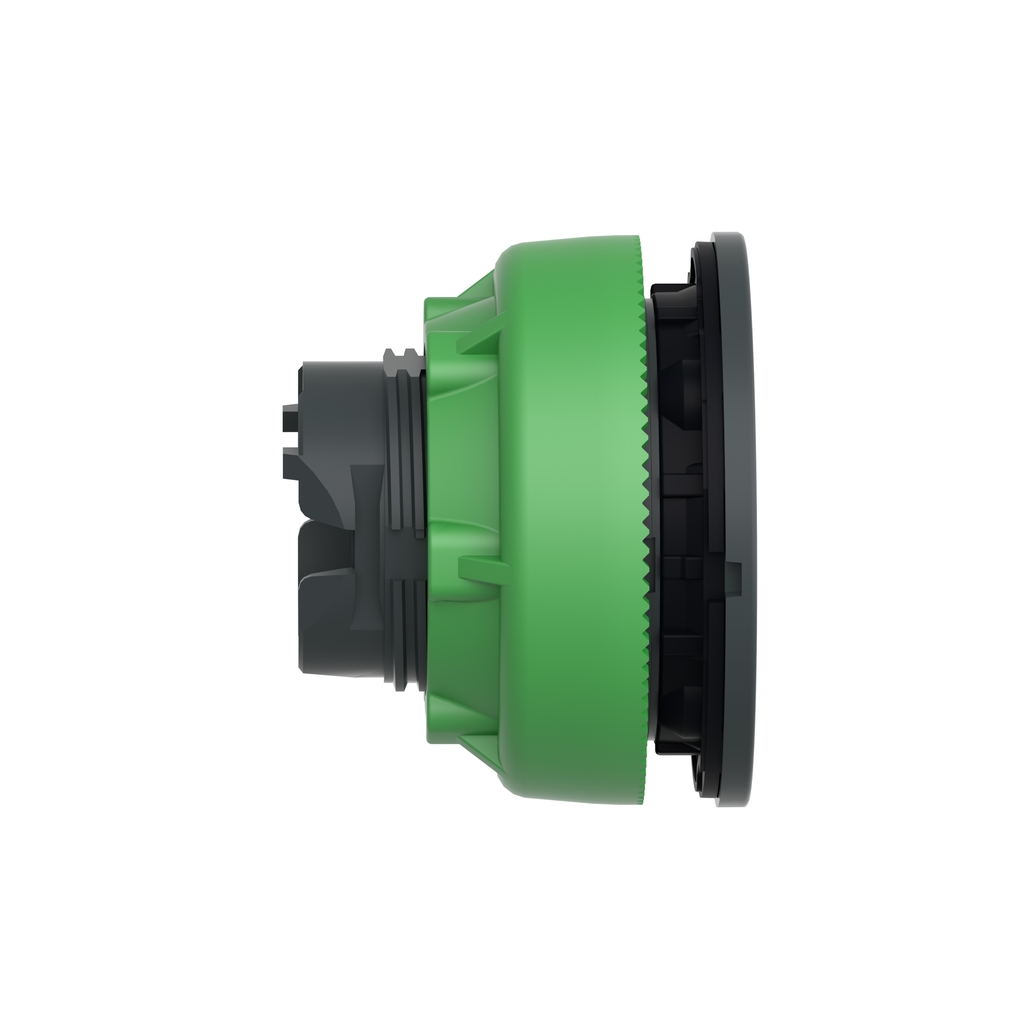

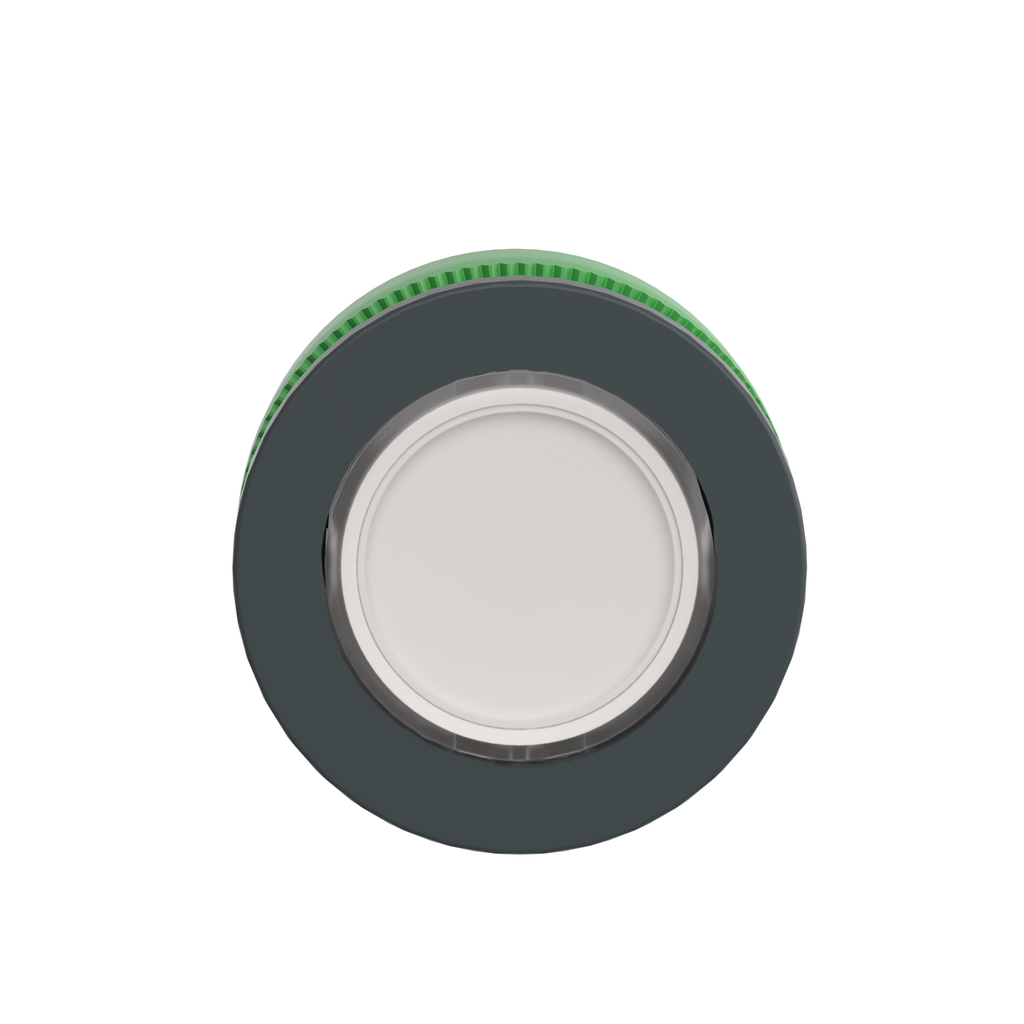

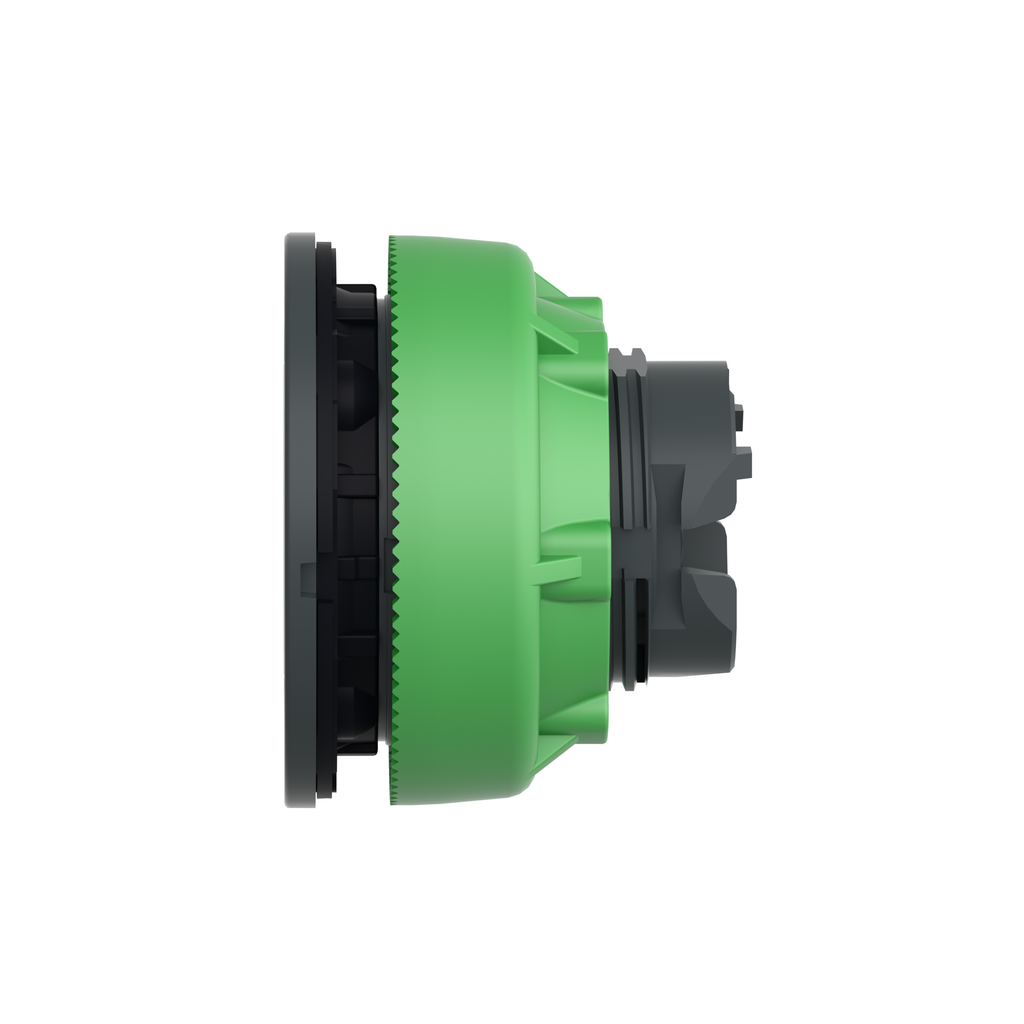

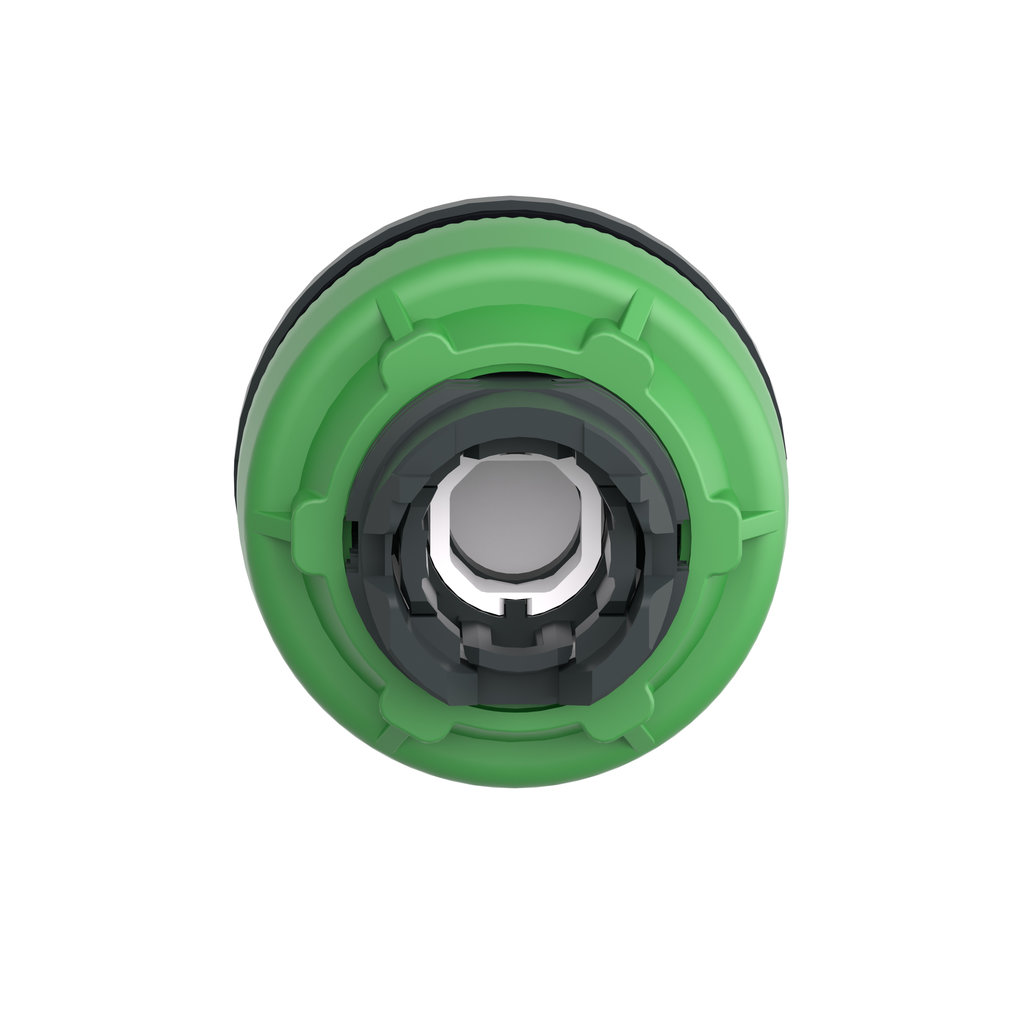

Head for illuminated push button, Harmony XB5, antimicrobial, plastic, white, 30mm, universal LED, plain lens

• Operator Additional Information: with plain lens
• Range Of Product: Harmony XB5
• Mounting Diameter: 30.5 mm
• Type Of Operator: spring return
• Product Or Component Type: head for illuminated push-button
• Shape Of Signaling Unit Head: round
• Head Type: built-in-flush
• Sale Per Indivisible Quantity: 1
• Bezel Material: dark grey plastic
• Operator Profile: white flush, unmarked
• Product Compatibility: universal LED
• Device Short Name: ZB5

Complementary

• Main Group: illum push-button
• Electrical Composition Code: M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED
• Net Weight: 0.017 kg
• Cad Overall Height: 37 mm
• Device Presentation: basic element
• Resistance To High Pressure Washer: 7000000 Pa 55 °C 0.1 m
• Cap/Operator Or Lens Colour: white
• Mechanical Durability: 10000000 cycles
• Marking: unmarked
• Cad Overall Width: 37 mm
• Cad Overall Depth: 30 mm
• Group Of Product: flush push integral LED

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1710010EN
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1710010EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: CSA || BV || DNV || LROS (Lloyds register of shipping) || UL Listed || GL
• Ik Degree Of Protection: IK03 EN 50102
• Ambient Air Temperature For Operation: -40-70 °C
• Standards: UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || GB 14048.5 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-1 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
• Shock Resistance: 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance: 5 gn 2-500 Hz)IEC 60068-2-6
• Ip Degree Of Protection: IP66 IEC 60529 || IP67 || IP69 || IP69K
• Ambient Air Temperature For Storage: -40-70 °C
• Overvoltage Category: class II IEC 60536
• Nema Degree Of Protection: NEMA 13 || NEMA 4X
• Protective Treatment: TC
