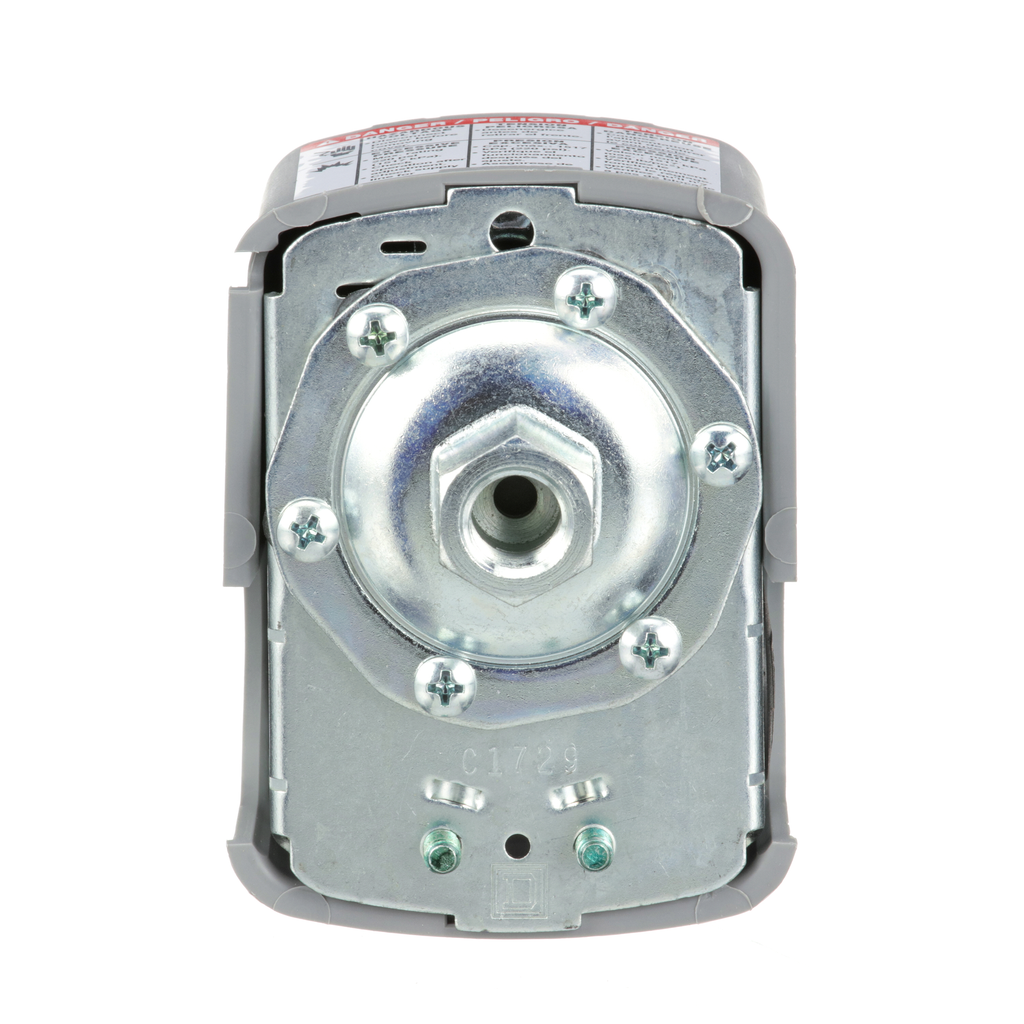

water pump switch, 9013FSG, adjustable differential, 30 to 50 psi, 1 HP

• Range Of Product: Square D Pumptrol
• Type Of Packing: individual
• Pressure Sensor Name: 9013FS
• Value Of Setting: 30...50 psi
• Product Specific Application: control electrically driven water pumps
• Quantity Per Set: 1
• Electrical Circuit Type: power circuit
• Pressure Sensor Size: 65 psi 5-45 psi)

Contractual warranty

• Warranty: 18 months

Complementary

• Pressure Sensor Type: electromechanical pressure switch
• Pressure Actuator: diaphragm
• Materials In Contact With Fluid: zinc plated steel or equivalent flange || nitrile (Buna-N) or equivalent rubber diaphragm
• Height: 2.8 in
• Approximate Adjustable Differential: 15-30 psi
• Terminal Block Type: 4 terminals
• Terminals Description Iso N°1: L1-T1 || L2-T2
• Short-Circuit Protection: 20 A cartridge fuse gG
• Repeat Accuracy: +/- 3 %
• Pressure Switch Type Of Operation: regulation between 2 thresholds
• Maximum Operating Rate: 10 cyc/mn
• Contacts Type And Composition: 2 NC, snap action, DPST-DB, Form YY
• Adjustable Range On Rising Pressure: 20-65 psi
• Local Display: without
• Net Weight: 1 lb(US)
• Electrical Durability: 100000 cycles 10 cyc/mn
• Fluid Connection Type: 0.25 inch NPSF internal UL 508
• Cable Entry Number: 2 0.88 in cable entries with 0.84 in across flats UL 508
• Electrical Connection: screw-clamp terminals 10 AWG || screw-clamp terminals 5.261 mm²
• [Ui] Rated Insulation Voltage: 575 V UL 508
• Controlled Fluid: fresh water -22-257 °F)
• Setting: internal
• Scale Type: adjustable differential
• Mechanical Durability: 300000 cycles
• Material: polypropylene Cover || noryl thermoplastic resin or equivalent Cover
• Operating Position: any position
• Width: 2.78 in
• Depth: 3.76 in
• Motor Power Kw: 1.5 kW 2 hp)230 V AC, 1 phase || 1.1 kW 1.5 hp)115 V AC, 1 phase || 1.5 kW 2 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)575 V AC, 3 phase
• Destruction Pressure: 220 psi

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP111211EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile: ENVEOLI111210EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: UL listed file E12158 || CSA file LR25490
• Ambient Air Temperature For Operation: -33-257 °F
• Standards: NSF ANSI 61 Annex G || CE || UL 508
• Ip Degree Of Protection: IP20 conforming to IEC 60529
• Ambient Air Temperature For Storage: -33-257 °F
• Nema Degree Of Protection: NEMA 1 UL 50
• Protective Treatment: none
