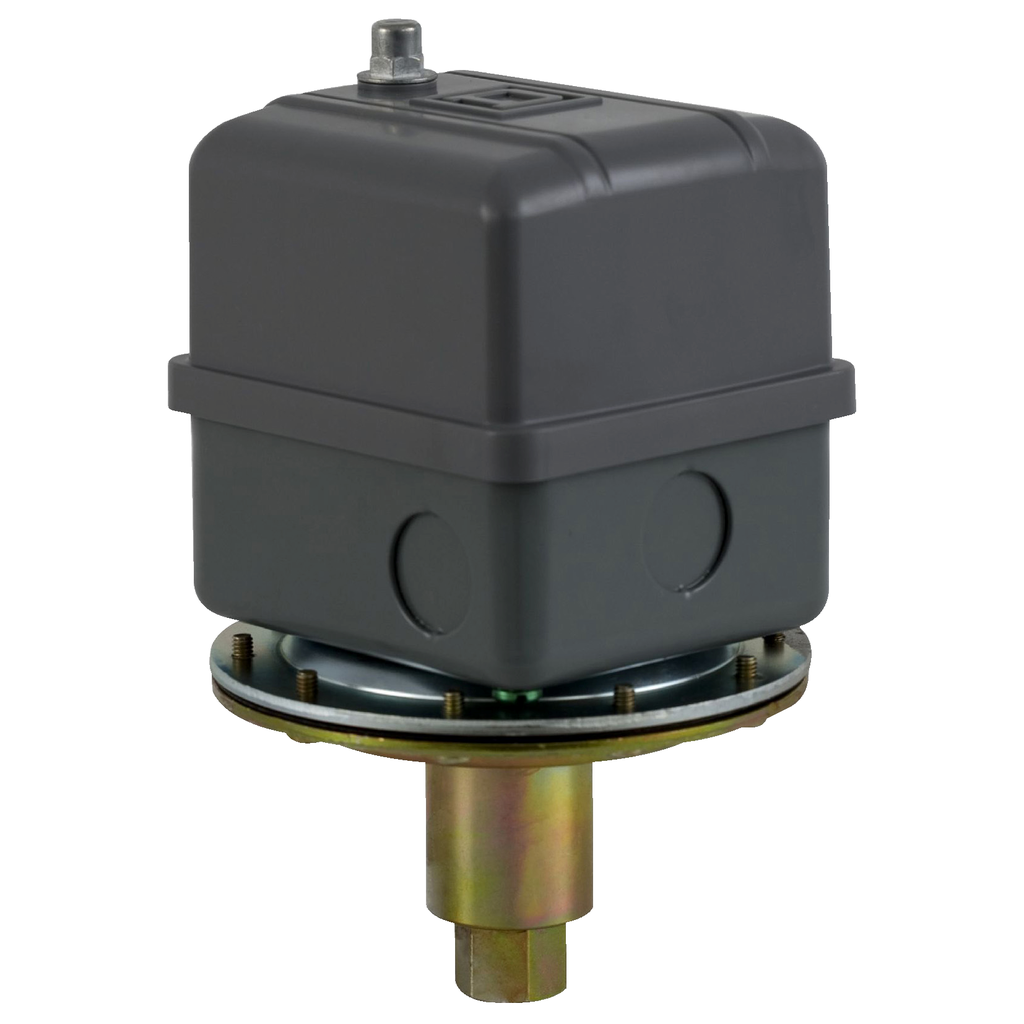

Vacuum switch, 9016GVG, electromechanical, adjustable scale, 2 thresholds, Set 20 to 25InHg

• Range Of Product: 9016GVG
• Product Or Component Type: electromechanical vacuum switch
• Electrical Circuit Type: power circuit
• Device Application: power circuit application
• Device Short Name: 9016GVG

Contractual warranty

• Warranty: 18 months

Complementary

• Vacuum Sensor Size: 25 inHg
• Height: 7.13 in
• Pressure Actuator: diaphragm nitrile (Buna-N)
• Terminal Block Type: 8 screw terminals
• Short-Circuit Protection: 20 A cartridge fuse gG
• Repeat Accuracy: 2.5 %
• Maximum Pressure: 100 psi
• Electrical Connection: screw-clamp terminals AWG 22...AWG 12
• Contacts Type And Composition: 2 NC, DPST-DB, Form YY, snap action, silver cadmium contacts
• Materials In Contact With Fluid: 3M Scotch-Grip 847 rubber and gasket adhesive || nitrile (Buna-N) || zinc plated steel
• Local Display: without
• Net Weight: 3.5 lb(US)
• Maximum Permissible Pressure - Per Cycle: 100 psi
• Fluid Connection Type: 0.25 inch 18 NPSF UL 508
• Cable Entry Number: 3 knock-outs for 1/2" NPT conduit
• Vacuum Switch Type Of Operation: regulation between two thresholds
• Maximum Operating Rate: 100 cyc/mn
• Controlled Fluid: air -40-250 °F) || water -40-250 °F) || hydraulic oil -40-250 °F) || gas -40-250 °F)
• Cut-In Range: 0-20 inHg
• Approx Adjustable Differential At Mid Range: 5-10 inHg
• Setting: internal
• Value Of Setting: 20...25 inHg
• Scale Type: adjustable
• Mechanical Durability: 300 cycles
• Operating Position: any position
• Enclosure Material: stamped metal
• Cut Out Range: 5-25 inHg
• Width: 4.58 in
• Depth: 4.37 in
• Cover Material: polypropylene, noryl thermoplastic resin or equivalent
• Motor Power Kw: 1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.75 kW 5 hp)230 V AC, 3 phase || 3.7 kW 5 hp)460 V AC, 1 phase || 3.7 kW 5 hp)460 V AC, 3 phase || 3.7 kW 5 hp)575 V AC, 1 phase || 3.7 kW 5 hp)575 V AC, 3 phase || 0.75 kW 1 hp)115 V DC, 3 phase || 0.75 kW 1 hp)230 V DC

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP111211EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile: ENVEOLI111210EN
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: UL listed file E12158 CCN NKPZ || CSA file LR25490
• Ambient Air Temperature For Operation: 10-185 °F
• Standards: UL 508
• Ambient Air Temperature For Storage: 10-185 °F
• Nema Degree Of Protection: NEMA 1 UL 698
• Protective Treatment: none
