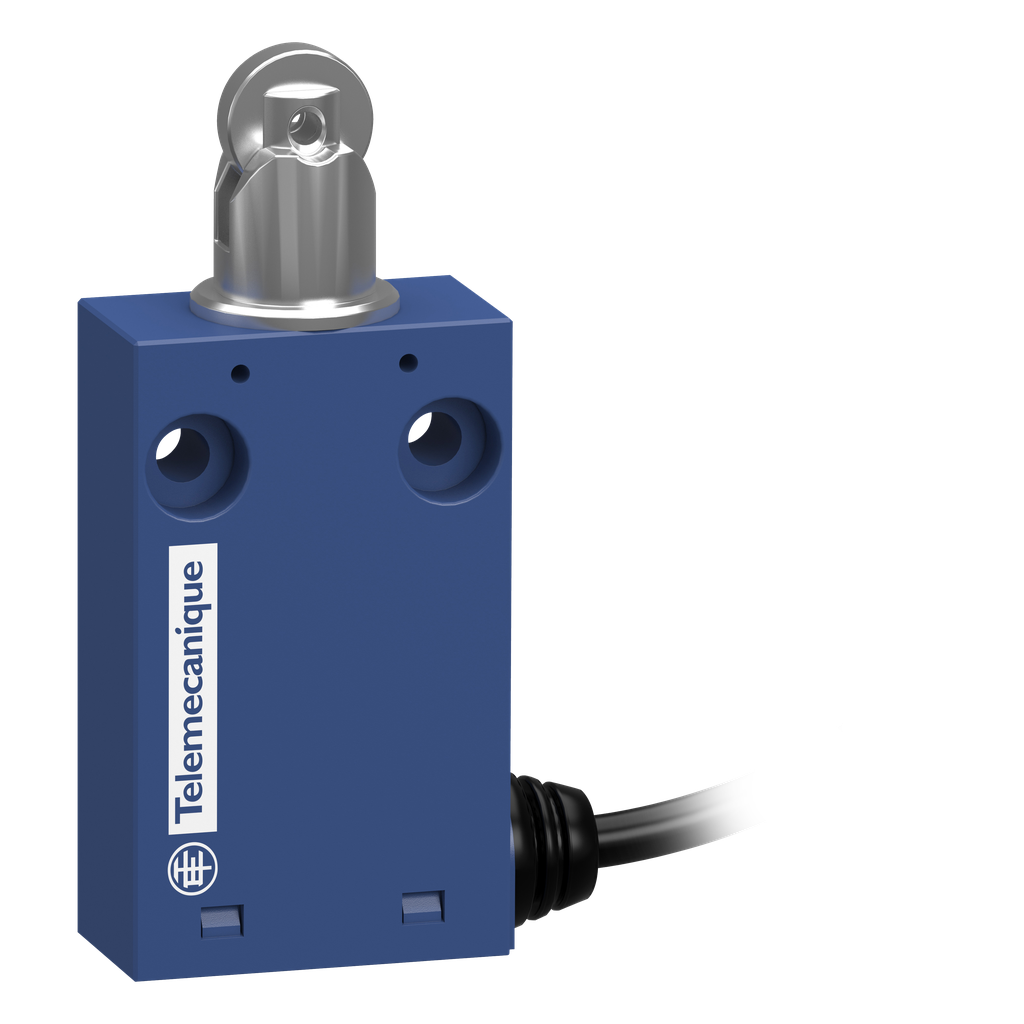

XCMH Limit Switches Miniature Plastic Metal Roller Plunger NC + NO Snap L9

• Movement Of Operating Head: linear
• Range Of Product: Telemecanique Limit switches XC Standard
• Fixing Mode: by the body
• Type Of Operator: spring return roller plunger metal
• Sensor Design: miniature
• Product Or Component Type: limit switch
• Head Material: zamak
• Material: plastic
• Head Type: plunger head
• Type Of Approach: lateral approach, 2 directions
• Series Name: standard format
• Contacts Type And Composition: 1 NC + 1 NO
• Body Type: fixed
• Contact Operation: snap action
• Body Material: plastic
• Device Short Name: XCMH
• Number Of Poles: 2

Contractual warranty

• Warranty: 18 months

Complementary

• Height: 70.4-70.4 mm
• Short-Circuit Protection: 6 A cartridge fuse gG
• Electrical Connection: fixed cable
• Cable Length: 9 m
• [Uimp] Rated Impulse Withstand Voltage: 4 kV IEC 60664 || 4 kV IEC 60947-1
• Switch Actuation: by 30° cam
• [Ui] Rated Insulation Voltage: 300 V 3)UL 508 || 300 V 3)IEC 60947-5-1 || 300 V 3)CSA C22.2 No 14
• Electrical Durability: 5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
• Positive Opening Minimum Force: 35 N
• Positive Opening: with
• Contacts Insulation Form: Zb
• Mechanical Durability: 5000000 cycles
• Maximum Actuation Speed: 0.5 m/s
• Wire Insulation Material: PvR
• Minimum Force For Tripping: 7 N
• Cable Composition: 4 x 0.34 mm²
• Contact Code Designation: C300, AC-15 (Ue = 240 V), Ie = 0.75 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
• Width: 30 mm
• Depth: 16 mm
• Maximum Resistance Across Terminals: 25 MOhm IEC 60255-7 category 3

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: UL || CCC || CSA
• Ik Degree Of Protection: IK04 EN 50102
• Ambient Air Temperature For Operation: -25-70 °C
• Standards: CSA C22.2 No 14 || UL 508 || EN/IEC 60204-1 || EN/IEC 60947-5-1
• Shock Resistance: 25 gn 18 ms IEC 60068-2-27
• Vibration Resistance: 5 gn 10-500 Hz)IEC 60068-2-6
• Ip Degree Of Protection: IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529
• Ambient Air Temperature For Storage: -40-70 °C
• Electrical Shock Protection Class: class II IEC 61140 || class II NF C 20-030
• Protective Treatment: TC
