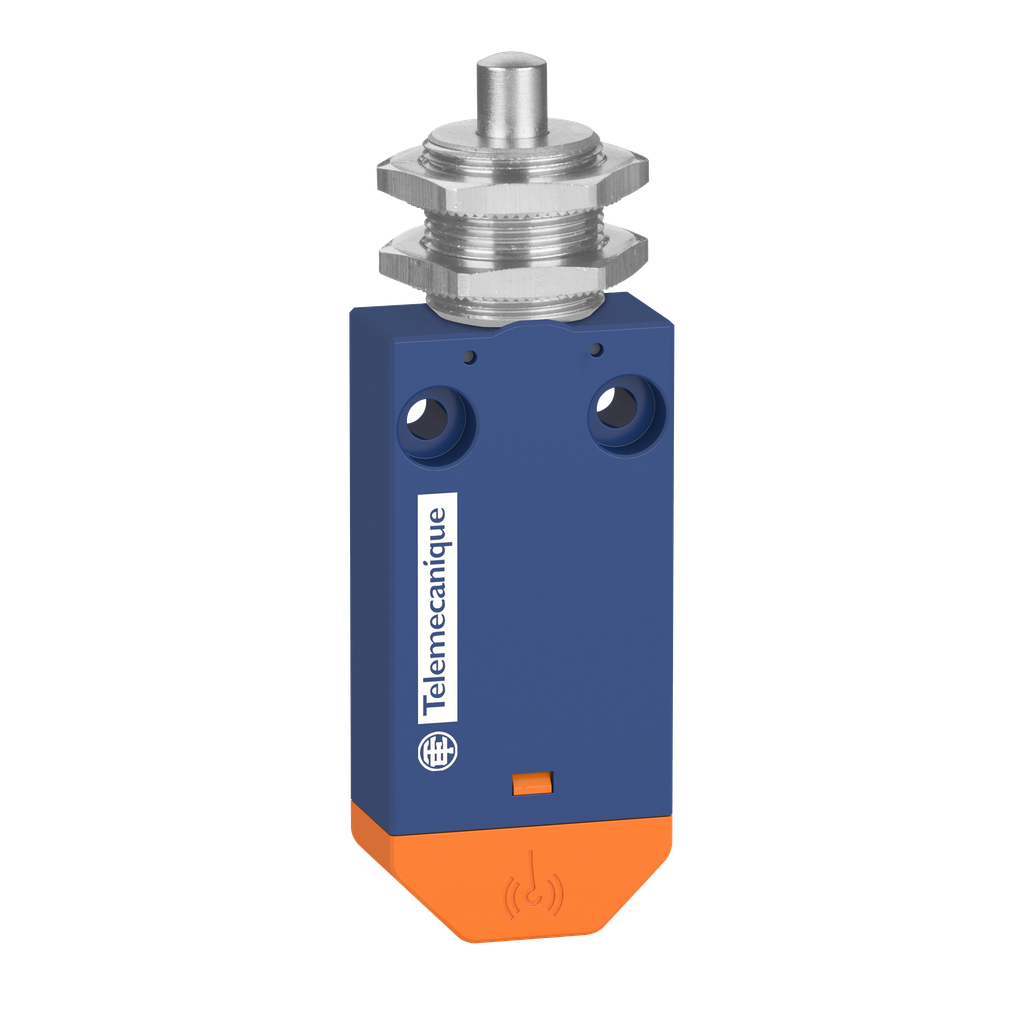

Wireless limit switch XCMW - M18 metal end plunger

• Series Name: standard format
• Body Type: fixed
• Range Of Product: Telemecanique Limit switches XC Standard
• Product Or Component Type: wireless limit switch
• Device Short Name: XCMW
• Head Type: M18 plunger head

Complementary

• Switch Actuation: on end
• Type Of Approach: on end approach, 1 direction
• Height: 108-108 mm
• Maximum Sensing Distance: 100 m in free field || 300 m with external antenna || 25 m in industrial environment
• Number Of Steps: 1
• Contact Operation: snap action
• Response Time: <= 2 ms
• Fixing Mode: by 2 screws
• Mechanical Durability: 400000 cycles
• Maximum Actuation Speed: 0.1 m/s
• Maximum Force For Tripping: 50 N
• Type Of Operator: spring return plunger
• Maximum Switching Operation Per Year: 3600
• Body Material: plastic
• Maximum Operating Rate: 60 cyc/mn
• Lever Material: metal
• Width: 30.0 mm
• Communication Network Type: ZigBee green power 2.4 GHz IEEE 802.15.4
• Depth: 16.0 mm
• Head Material: plastic
• Minimum Torque For Tripping: 0.5 N.m
• Electrical Composition Code: PW1
• Emission Power: 3 mW
• Net Weight: 0.082 kg

Offer Sustainability

• Circularity Profile: ENVEOLI1905010EN
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1905010EN
• Sustainable Offer Status: Green Premium product
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environment

• Ik Degree Of Protection: IK04 EN 50102
• Ambient Air Temperature For Operation: -25-55 °C
• Directives: 1999/5/EC - R&TTE directive || 2004/108/EC - electromagnetic compatibility
• Ambient Air Temperature For Storage: -40-70 °C
• Standards: EN/IEC 60947-5-1 || EN/IEC 60947-1
• Electromagnetic Compatibility: radiated emission || immunity for industrial environments || susceptibility to electromagnetic fields 3 V/m 80...2700 MHz, distance = 20 m) || susceptibility to electromagnetic fields 10 V/m 80...2000 MHz) || electrostatic discharge immunity test 6 kV on contact (on metal parts)) || electrostatic discharge immunity test 8 kV in free air (in insulating parts))
• Shock Resistance: 50 gn 11 ms IEC 60068-2-27
• Radio Agreement: IC RSS || FCC RCM
• Vibration Resistance: 25 gn 10-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
• Ip Degree Of Protection: IP65 conforming to IEC 60529
