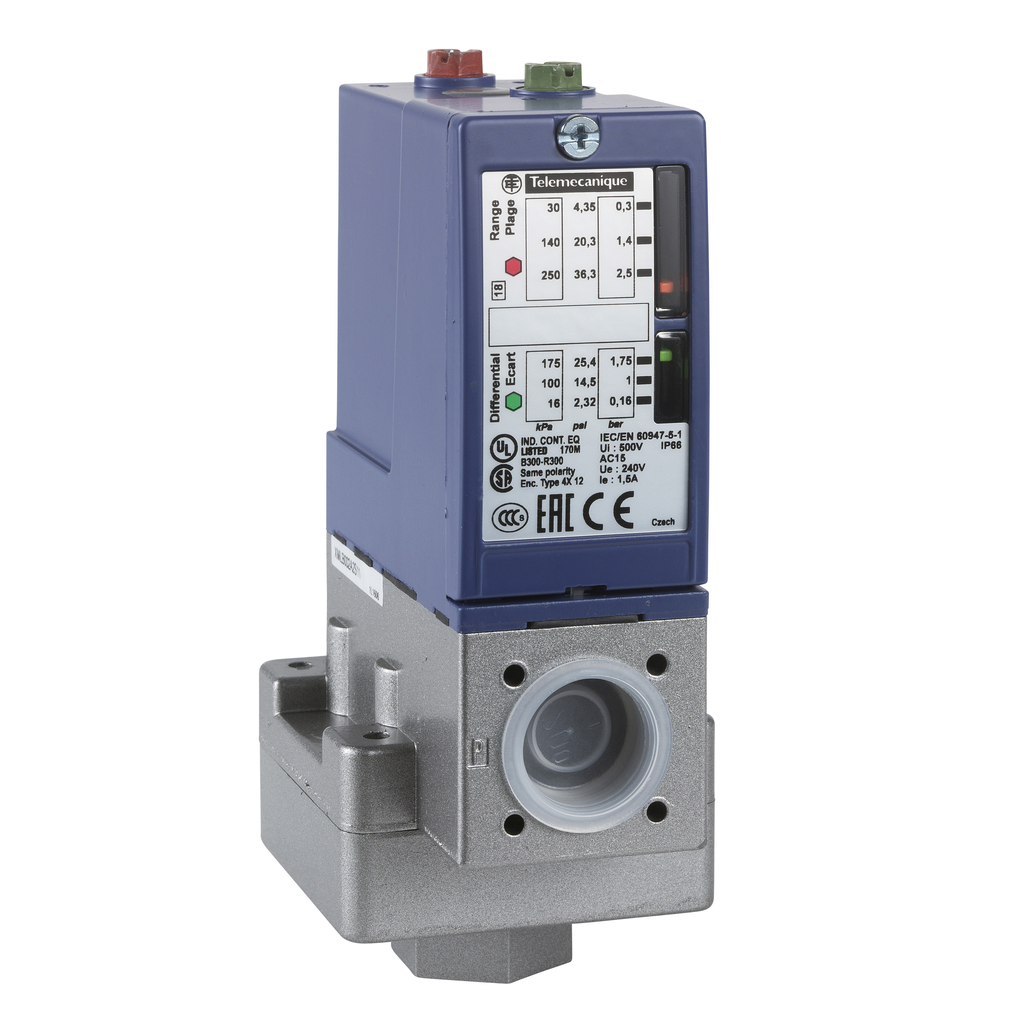

vacuum switch XMLB -1 bar - adjustable scale 2 thresholds - 1 C/O

• Contacts Type And Composition: 1 C/O
• Pressure Sensor Type: electromechanical vacuum sensor
• Pressure Actuator: diaphragm
• Electrical Connection: screw-clamps terminals, 1 x 0.5...2 x 2.5 mm² || 1 connector Pg 13
• Range Of Product: Telemecanique Pressure sensors XM
• Line Rated Current: 3 A, B300, AC-15 (Ue = 120 V)EN/IEC 60947-5-1 || 1.5 A, B300, AC-15 (Ue = 240 V)EN/IEC 60947-5-1 || 0.1 A, R300, DC-13 (Ue = 250 V)EN/IEC 60947-5-1
• Pressure Switch Type Of Operation: regulation between 2 thresholds
• Cable Entry: cable gland 9-13 mm
• Product Or Component Type: electromechanical pressure sensor
• Adjustable Range Of Switching Point On Falling Pressure: -1--0.14 bar
• Materials In Contact With Fluid: zinc alloy || nitrile || 304L stainless steel
• Local Display: with
• Fluid Connection Type: G 1/4 (female) ISO 228
• Pressure Sensor Size: -1 bar
• Controlled Fluid: air 0-70 °C) || fresh water 0-70 °C) || hydraulic oil 0-70 °C)
• Awg Gauge: AWG 20...AWG 14
• Scale Type: adjustable differential
• Electrical Circuit Type: control circuit
• Enclosure Material: zinc alloy
• Adjustable Range Of Switching Point On Rising Pressure: -0.87--0.01 bar
• Maximum Permissible Accidental Pressure: 9 bar
• Possible Differential Maximum At High Setting: 0.8 bar
• Destruction Pressure: 18 bar
• Device Short Name: XMLB

Contractual warranty

• Warranty: 18 months

Complementary

• Repeat Accuracy: 2 %
• Height: 158 mm
• Terminal Block Type: 4 terminals
• Short-Circuit Protection: 10 A cartridge fuse gG (gl)
• Contacts Material: silver contacts
• Possible Differential Minimum At High Setting: 0.13 bar +/- 0.02 bar)
• Auxiliary Contacts Operation: snap action
• Net Weight: 1.015 kg
• [Uimp] Rated Impulse Withstand Voltage: 6 kV EN/IEC 60947-1
• Maximum Permissible Pressure - Per Cycle: 5 bar
• Maximum Operating Rate: 120 cyc/mn
• [Ui] Rated Insulation Voltage: 300 V UL 508 || 500 V EN/IEC 60947-1 || 300 V CSA C22.2 No 14
• Setting: external
• Mechanical Durability: 3000000 cycles
• Width: 55 mm
• Depth: 77.5 mm
• Maximum Resistance Across Terminals: 25 mOhm IEC 255-7 category 3 || 25 mOhm NF C 93-050 method A
• Possible Differential Minimum At Low Setting: 0.13 bar +/- 0.02 bar)

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP110914EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: CCC || UL || CSA || EAC || LROS (Lloyds register of shipping) || BV
• Ambient Air Temperature For Operation: -25-70 °C
• Standards: CE || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508
• Vibration Resistance: 4 gn 30-500 Hz)IEC 60068-2-6
• Shock Resistance: 50 gn IEC 60068-2-27
• Ip Degree Of Protection: IP66 conforming to EN/IEC 60529
• Ambient Air Temperature For Storage: -40-70 °C
• Protective Treatment: TC standard version
• Operating Position: any position
• Electrical Shock Protection Class: class I IEC 1140 || class I IEC 536 || class I NF C 20-030
