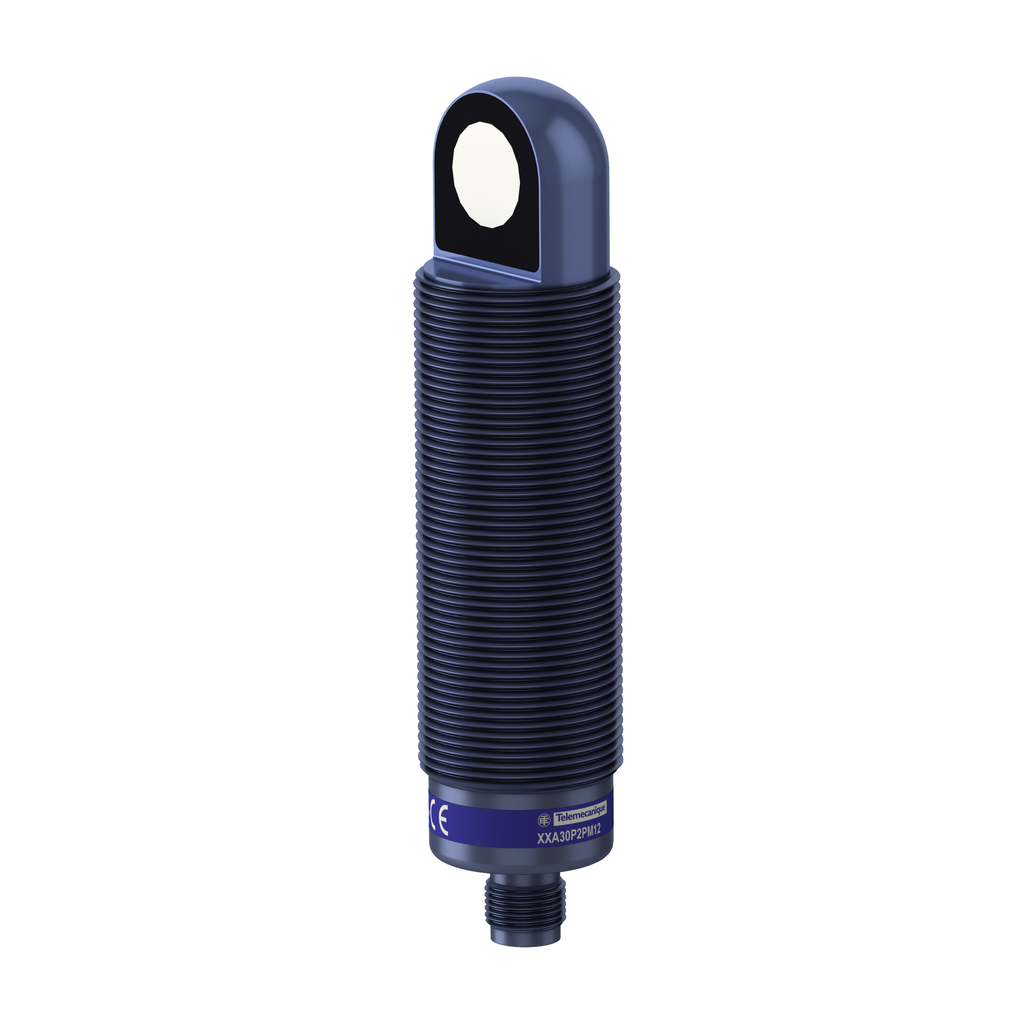

Ultrasonic sensors XX, ultrasonic sensor, plastic, cylindrical M30, angled, 2 m, PNP

• [Us] Rated Supply Voltage: 12...24 V DC reverse polarity protection
• Discrete Output Type: PNP
• Discrete Output Function: 1 NO or 1 NC programmable
• Type Of Output Signal: discrete
• Range Of Product: Telemecanique Ultrasonic sensors XX
• Sensor Name: XXA
• [Sd] Sensing Range: 0.155-2 m
• Material: plastic
• Wiring Technique: 5-wire
• Ip Degree Of Protection: IP65 conforming to IEC 60529 || IP67
• Series Name: general purpose
• Detection System: diffuse with 90° head)
• Sensor Type: ultrasonic sensor
• Electrical Connection: male connector M12 5 pins
• Sensor Design: cylindrical M30
• [Sn] Nominal Sensing Distance: 2-2 m adjustable with remote teach push-button || 2-2 m software with kit

Contractual warranty

• Warranty: 18 months

Complementary

• Repeat Accuracy: 0.1 %
• Height: 30 mm
• Maximum Switching Current: 100 mA overload and short-circuit protection
• Minimum Size Of Detected Object: cylinder diameter 1 mm 1.4 m
• Switching Frequency: 5.5 Hz
• Maximum Delay Response: 90 ms
• Maximum Voltage Drop: 2 V
• Status Led: output state 1 LED yellow) || echo state 1 LED green)
• Setting-Up: teach mode || configurator software
• Transmission Frequency: 120 kHz
• [Sa] Assured Operating Distance: 0.155-2 m teach mode)
• Threaded Length: 74.7 mm
• Marking: CE
• Blind Zone: 155-155 mm
• Net Weight: 0.1 kg
• Current Consumption: 65 mA
• Deviation Angle From 90° Of Object To Be Detected: -12-12 °
• Function Available: with synchronisation mode || software configurable
• Maximum Delay Recovery: 90 ms
• Maximum Delay First Up: 150 ms
• Supply Voltage Limits: 10-30 V DC
• Enclosure Material: PBT
• Width: 30 mm
• Front Material: epoxy || rubber || resin
• Depth: 129.6 mm

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1803029EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Environment

• Product Certifications: cULus || E2 || EAC || RCM || Ecolab
• Ambient Air Temperature For Operation: -25-70 °C
• Resistance To Electromagnetic Fields: 10 V/m level 3 IEC 61000-4-3
• Standards: EN/IEC 60947-5-2 || CSA C22.2 No 14 || UL 508
• Vibration Resistance: +/-1 mm 10-55 Hz)IEC 60068-2-6
• Shock Resistance: 30 gn in all 3 axes 11 ms IEC 60068-2-27
• Ambient Air Temperature For Storage: -40-80 °C
• Resistance To Electrostatic Discharge: 8 kV IEC 61000-4-2
• Resistance To Fast Transients: 2 kV IEC 61000-4-4
