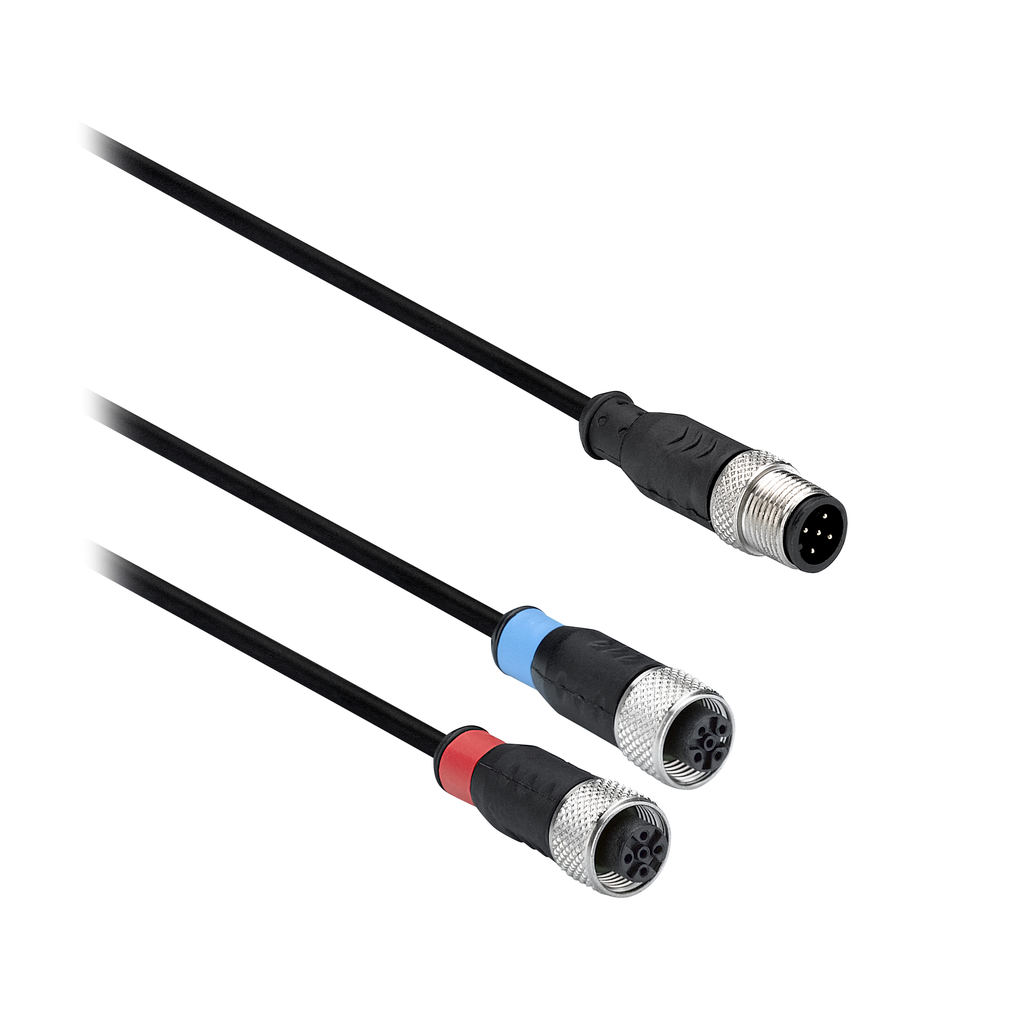

Y M12 5 poles splitters receiver for safety light curtain integrated muting

• Accessory / Separate Part Category: cabling accessory
• Accessory / Separate Part Type: jumper cable

Complementary

• Collar Material: metal
• Jumper Cable End 2: M12 female 5 pins straight screw-on
• Cable Outer Diameter: 5 mm
• Wire Insulation Material: PVC
• [Ue] Rated Operational Voltage: 30 V DC
• Maximum Resistance Across Terminals: 10 mOhm
• Insulation Resistance: >= 100 MOhm
• Cable Length: 0.5 m
• Line Rated Current: 1.5 A
• Cable Composition: 5 x 0.25 mm²
• Jumper Cable End 1: M12 male 5 pins straight screw-on
• Net Weight: 0.07 kg

Offer Sustainability

• Circularity Profile: ENVEOLI1406015EN
• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1406015EN
• Sustainable Offer Status: Green Premium product
• Toxic Heavy Metal Free: Yes
• Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation: Free of Substances of Very High Concern above the threshold
• California Proposition 65: WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc: Yes

Environment

• Ambient Air Temperature For Operation: -30-80 °C static
• Ambient Air Temperature For Storage: -30-80 °C
• Ip Degree Of Protection: IP65 || IP67
