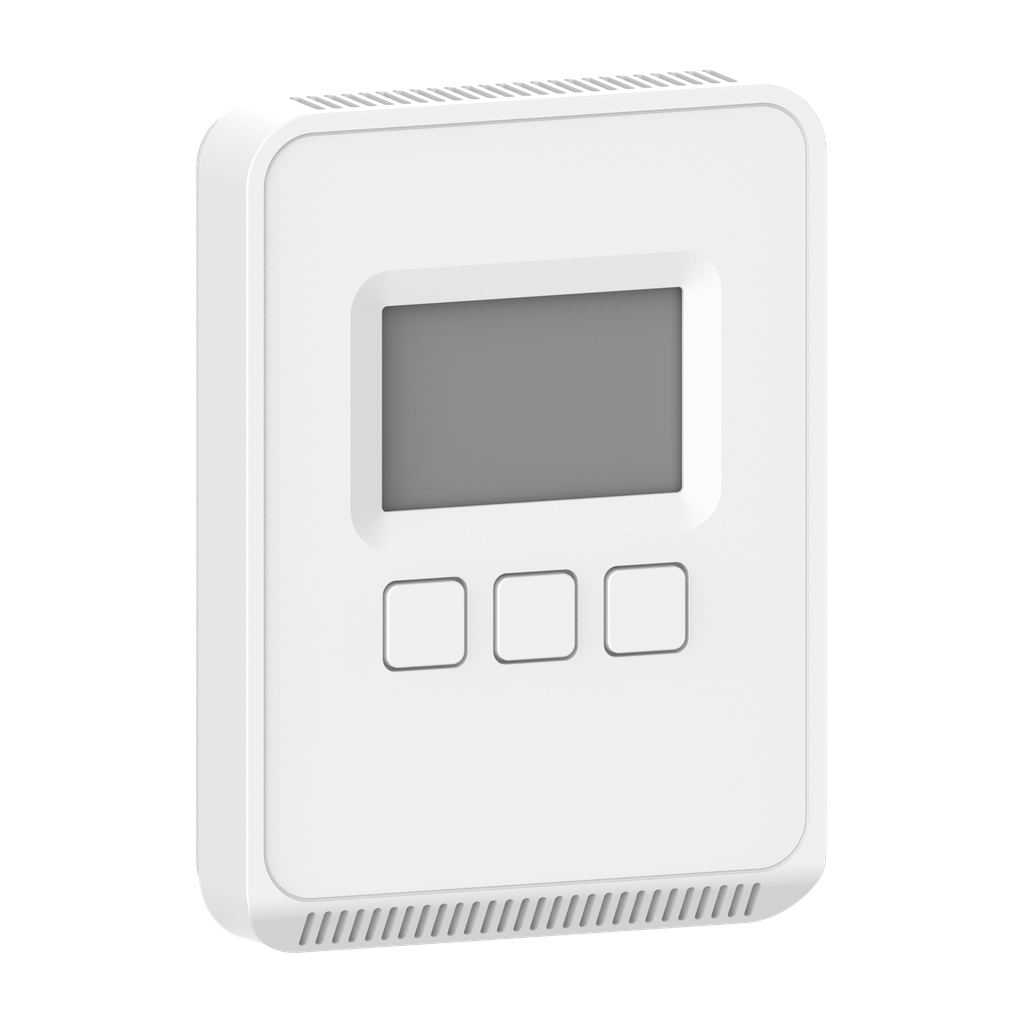

Veris CW2 Series Air Quality Sensor, Wall, CO2, VOC, Segmented LCD, Replaceable Humidity 2%, Temperature Transmitter with BACnet MSTP/Modbus Outputs

• Network Frequency: 50 Hz || 60 Hz
• Information Displayed: temperature || temperature set point || menu-driven user interface || relative humidity || CO2 || air quality index
• [Us] Rated Supply Voltage: 24 V AC || 20...30 V DC
• Ambient Air Temperature For Operation: 0-50 °C
• Height: 85 mm
• Mounting Support: Wall Mount
• Standards: UL 916 || FCC Part 15 class B
• Product Certifications: CE EN 61000-6-2 || CE EN 61000-6-3 || CE EN 61326-1 || RCM || EAC || ICES-003 || cULus
• Surface Finish: Matte
• Type Of Measurement: Carbon Dioxide (CO2) || Volatile Organic Compounds (VOC) || Humidity || Temperature
• Product Or Component Type: sensor
• Product Name: SpaceLogic Room Unit
• Location: Living Space
• Range: SpaceLogic
• Device Presentation: complete product
• Communication Port Protocol: BACnet || Modbus
• Display Size: 2 inch
• Product Specific Application: indoor air quality control
• Sensor Type: transmitter || NDIR (non-dispersive infrared) || VOC transmitter || thin-film capacitive
• Width: 115 mm
• Color: White
• Display Type: LCD display
• Depth: 24 mm
• Device Application: HVAC || temperature control || fan speed controller

Complementary

• Repeat Accuracy: +/- 20 ppm
• Range Compatibility: EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
• Hysteresis: 1.5 %
• Connections - Terminals: screw terminal - 2 AWG 24...AWG 18)
• Function Available: with temperature sensor || with CO2 sensor || with VOC (volatile organic compounds) sensor || with humidity sensor
• Control Type: + button || - button || arrow button
• Material: ABS (acrylonitrile butadiene-styrene)

Offer Sustainability

• Rohs Exemption Information: Yes
• Mercury Free: Yes
• Environmental Disclosure: ENVPEP1912001EN
• Sustainable Offer Status: Green Premium product
• Reach Regulation: Reference contains Substances of Very High Concern above the threshold
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation: X
• Circularity Profile: ENVEOLI1912001EN
• Eu Rohs Directive: Compliant

Environment

• Humidity Setting Range: 0-100 %
• Temperature Setting Range: 10-35 °C || 0-50 °C
