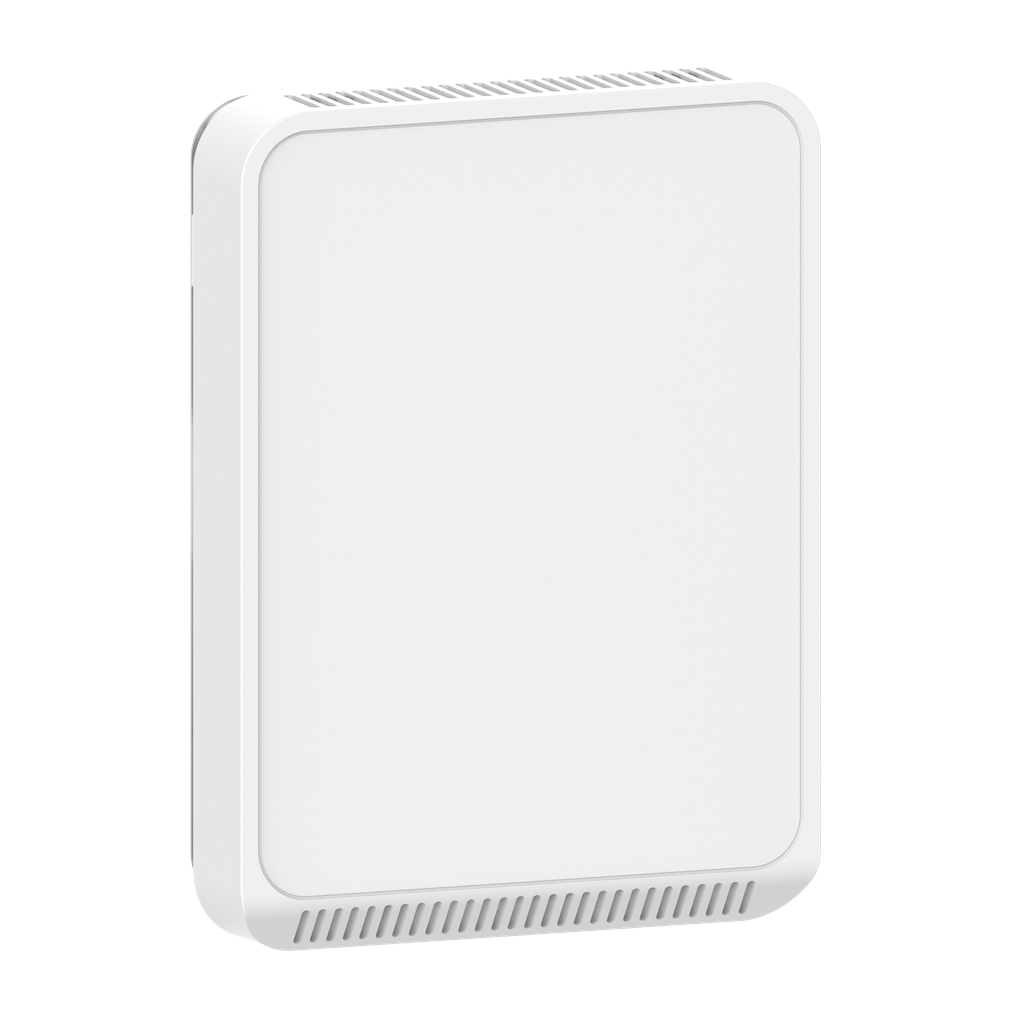

Veris CWE2 Series Economy Air Quality Sensor, Wall, CO2, Temperature, 100K Thermistor

• Network Frequency: 50 Hz || 60 Hz
• [Us] Rated Supply Voltage: 24 V AC || 20...30 V DC
• Ambient Air Temperature For Operation: 0-50 °C
• Height: 85 mm
• Mounting Support: Wall Mount
• Sensor Type: 20 kOhm NTC thermistor || NDIR (non-dispersive infrared)
• Standards: UL 916 || FCC Part 15 class B
• Product Certifications: CE EN 61000-6-2 || CE EN 61000-6-3 || CE EN 61326-1 || RCM || EAC || ICES-003 || cULus
• Surface Finish: Matte
• Product Or Component Type: sensor
• Width: 115 mm
• Color: White
• Display Type: Without Display
• Depth: 24 mm
• Product Name: SpaceLogic Room Unit
• Device Application: HVAC || temperature control || fan speed controller
• Range: SpaceLogic
• Device Presentation: complete product

Complementary

• Communication Network Type: wired
• Function Available: with temperature sensor || with CO2 sensor
• Repeat Accuracy: +/- 20 ppm
• Range Compatibility: EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
• Material: ABS (acrylonitrile butadiene-styrene)
• Connections - Terminals: screw terminal - 2 AWG 24...AWG 18)

Offer Sustainability

• Circularity Profile: ENVEOLI1912001EN
• Environmental Disclosure: ENVPEP1912001EN
• Eu Rohs Directive: Compliant
• Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
