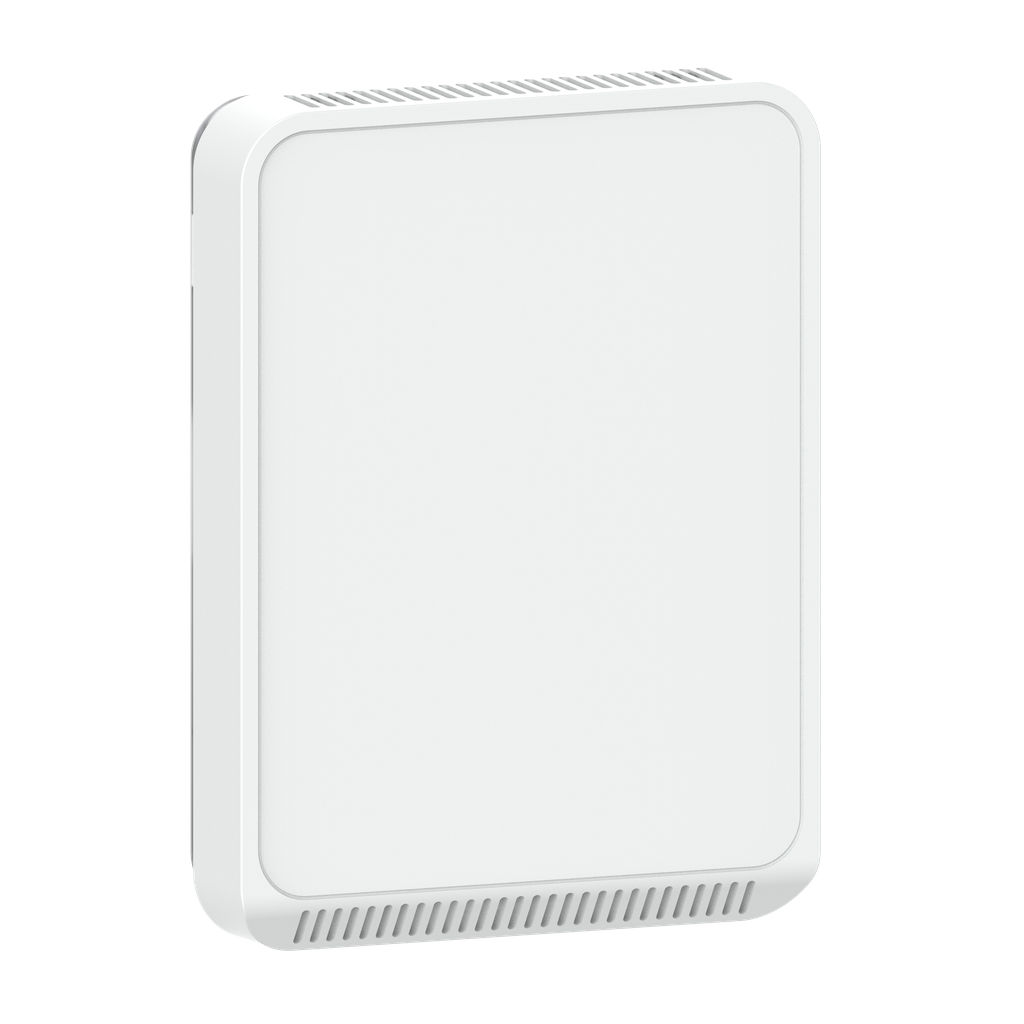

Veris HW2 Series Humidity Sensor, Wall, Replaceable 2%, Temperature Transmitter
Veris HW2 Series Humidity Sensor, Wall, Replaceable 2%, Temperature Transmitter
HW2XA2A
Product Description
- Network Frequency: 50 Hz || 60 Hz
- [Us] Rated Supply Voltage: 24 V AC || 20...30 V DC
- Ambient Air Temperature For Operation: 0-50 °C
- Height: 85 mm
- Mounting Support: Wall Mount
- Standards: UL 916 || FCC Part 15 class B
- Product Certifications: CE EN 61000-6-2 || CE EN 61000-6-3 || CE EN 61326-1 || RCM || EAC || ICES-003 || cULus
- Surface Finish: Matte
- Type Of Measurement: Humidity || Temperature
- Product Or Component Type: sensor
- Product Name: SpaceLogic Room Unit
- Location: Living Space
- Range: SpaceLogic
- Device Presentation: complete product
- Product Specific Application: humidity control
- Sensor Type: transmitter || thin-film capacitive
- Width: 115 mm
- Color: White
- Display Type: Without Display
- Depth: 24 mm
- Device Application: HVAC || temperature control || fan speed controller
Complementary
- Communication Network Type: wired
- Output Voltage: 0...10 V fan speed || 0...5 V configurable analog output || 0...10 V configurable analog output
- Number Of Outputs: 1 fan || 1 configurable
- Range Compatibility: EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- Output Type: analog
- Hysteresis: 1.5 %
- Connections - Terminals: screw terminal - 2 AWG 24...AWG 18)
- Function Available: with temperature sensor || with humidity sensor
- Material: ABS (acrylonitrile butadiene-styrene)
Offer Sustainability
- Rohs Exemption Information: Yes
- Mercury Free: Yes
- Environmental Disclosure: ENVPEP1912001EN
- Sustainable Offer Status: Green Premium product
- Reach Regulation: Reference contains Substances of Very High Concern above the threshold
- Weee: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation: X
- Circularity Profile: ENVEOLI1912001EN
- Eu Rohs Directive: Compliant
Environment
- Humidity Setting Range: 0-100 %
- Temperature Setting Range: 10-35 °C || 0-50 °C
Spec Sheet
