Product Description

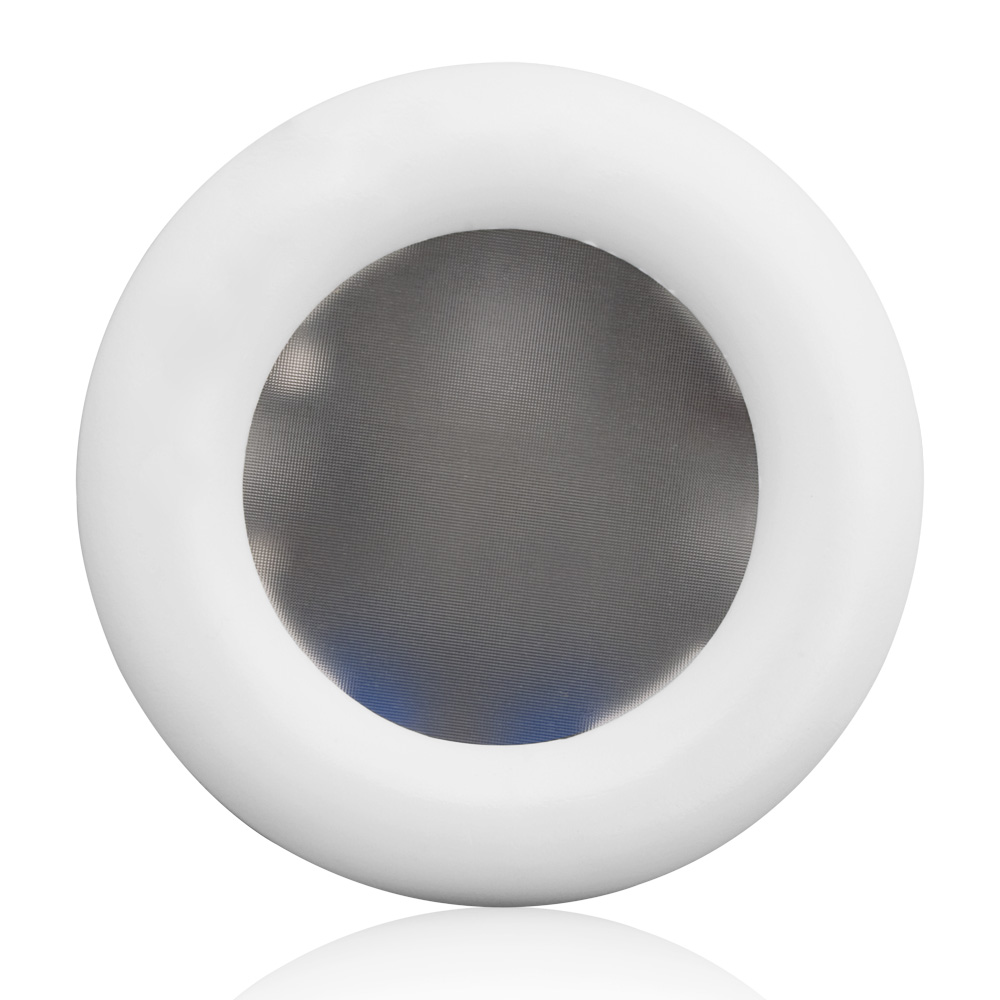

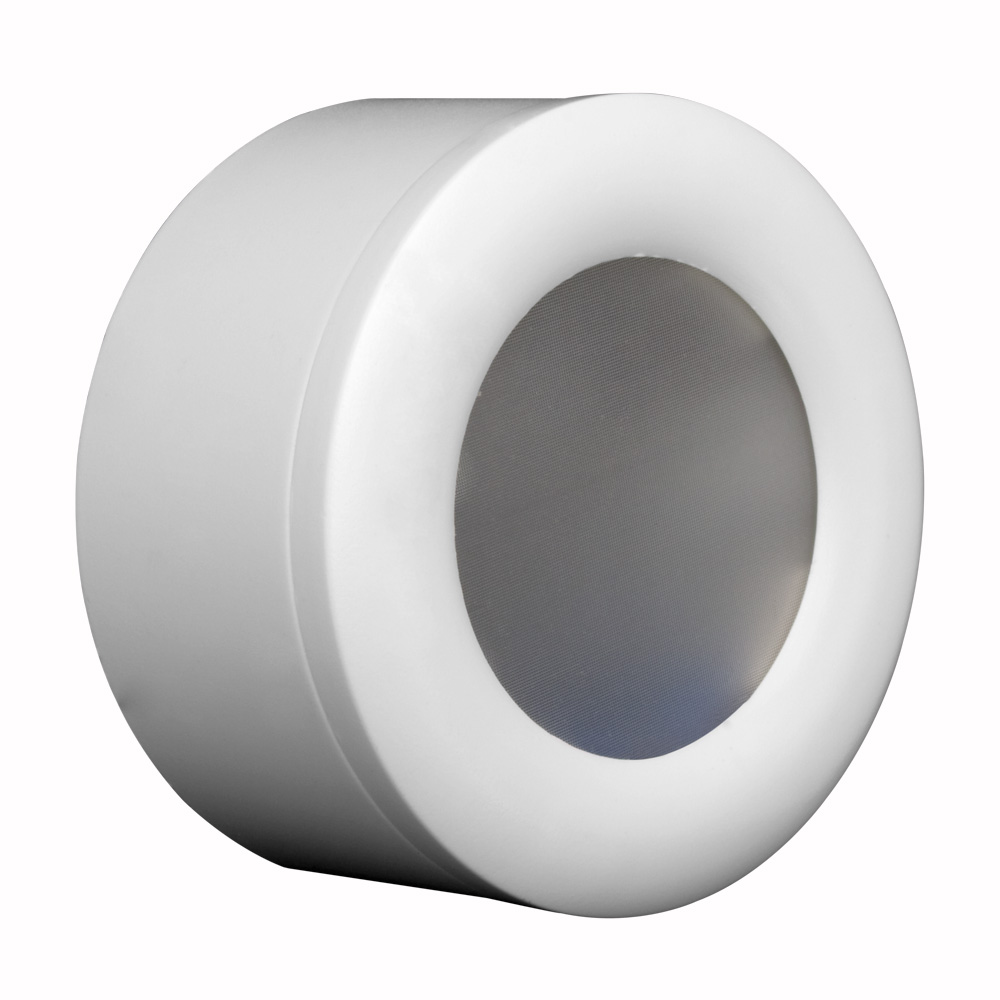

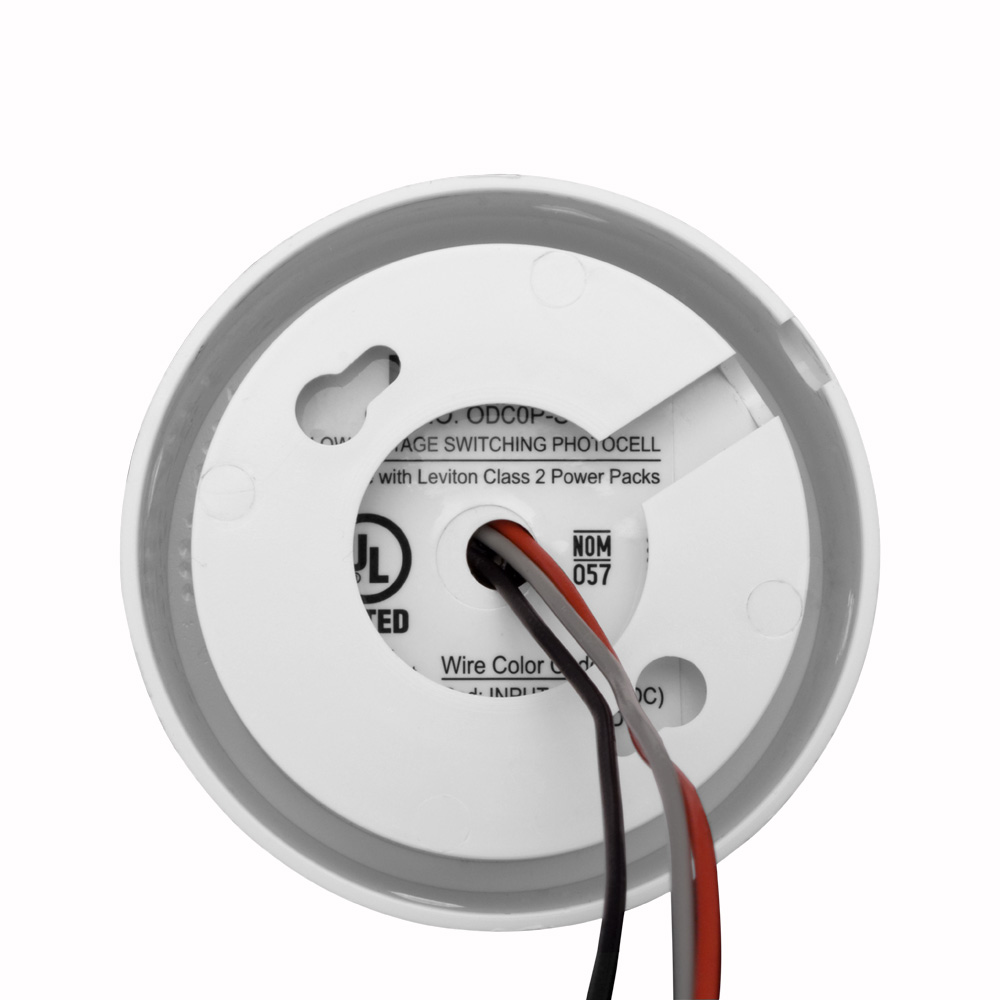

- Leviton’s ODC0P-S0W Switching Photocell is a sensor for precisely monitoring either task or ambient light levels. As a part of Leviton’s lighting system, the ODC0P-S0W works with other components to automatically set and adjust target light levels. Do you have any questions about photocells? Contact us to learn more.
- Switched lighting at a desired Daylight Design Level offers greater energy savings and comfort while contributing to improved efficiency
- Provides for ultra-convenient, hands-free lighting control
- Lowers electric bills by reducing usage of lighting where ambient and/or artificial lights are also present
- Measures light from any source in the visible spectrum within a 60º cone at 8-12 feet mounting height
- Provides continual measurements and reports back to Switching Power Pack or Controller

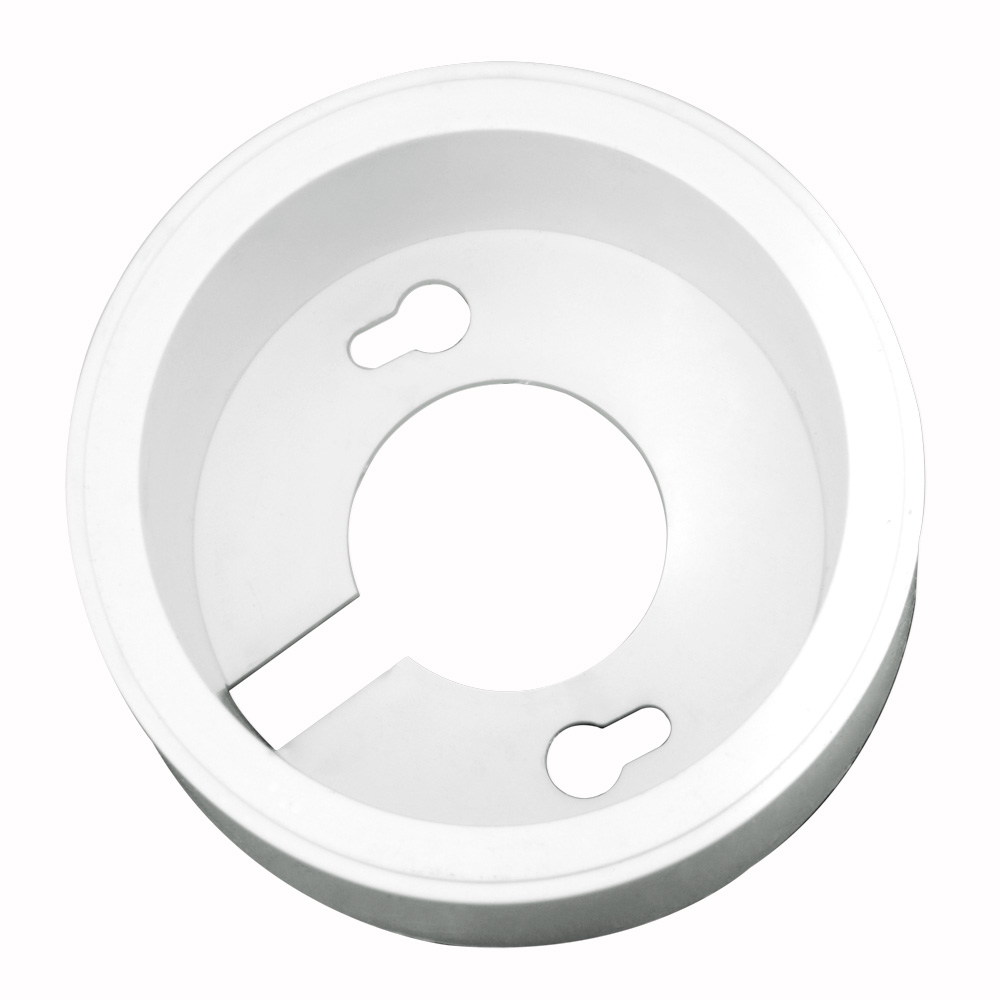

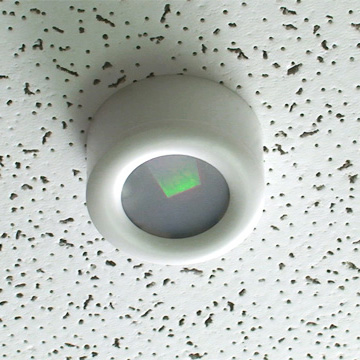

- Mounts on ceiling - surface mount or low profile flush mount

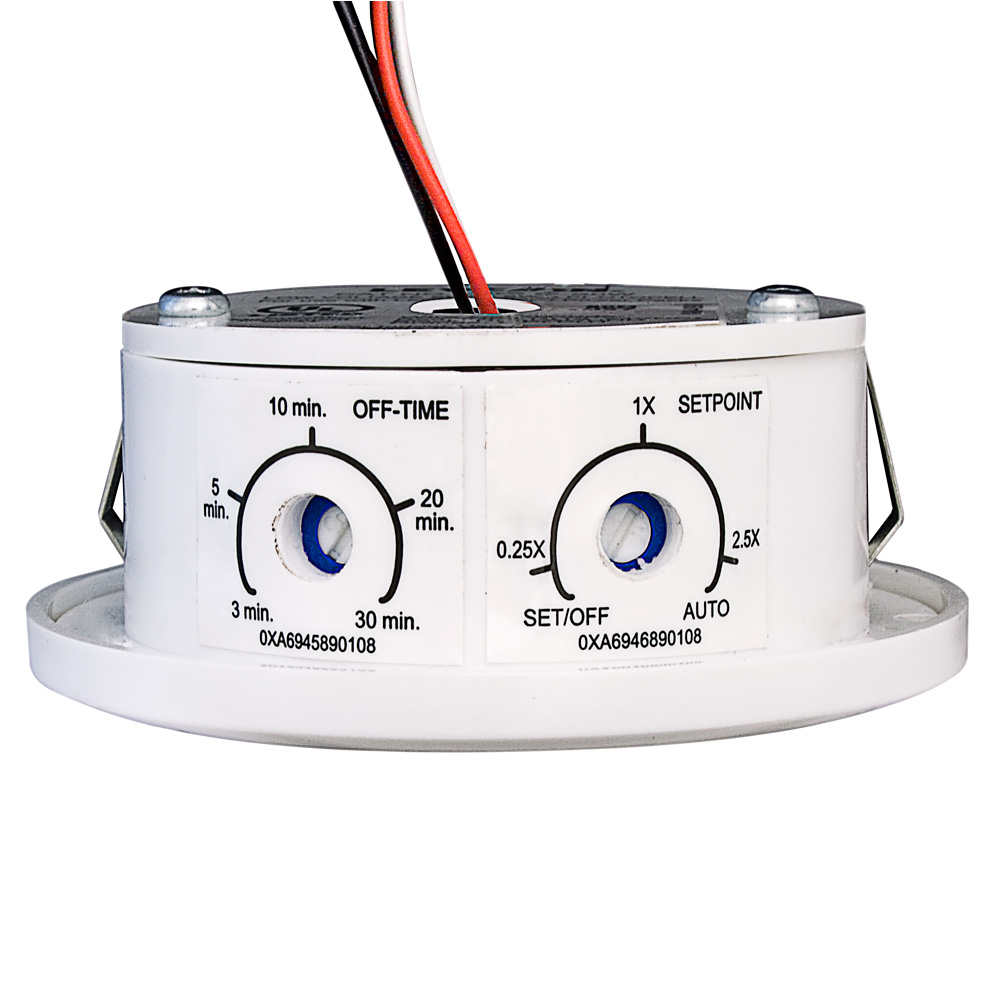

- Auto-calibration for ease of configuration
- LED status indicators for ease of installation
- Country of Origin: China
- RoHS Compliant: Yes
Environmental Specifications
- Color: White
- Foot Candle Level: 1-1,600 FC (10-16,000 LUX)
- Operating Temperature: 0°C to 55°C
- Relative Humidity: 20% to 90% non-condensing
Electrical Specifications
- Input Voltage: 12 - 24VDC
- Voltage Type: Low Voltage
Product Features
- Product Line: Photocell
- Product Type: Indoor Photocell
Standards and Certifications
- Listing: NOM
Warranty
- Warranty: 5-Year Limited
Switching_Photocell_ODC0P-S0W_Data_Sheet_Photocells.pdf
