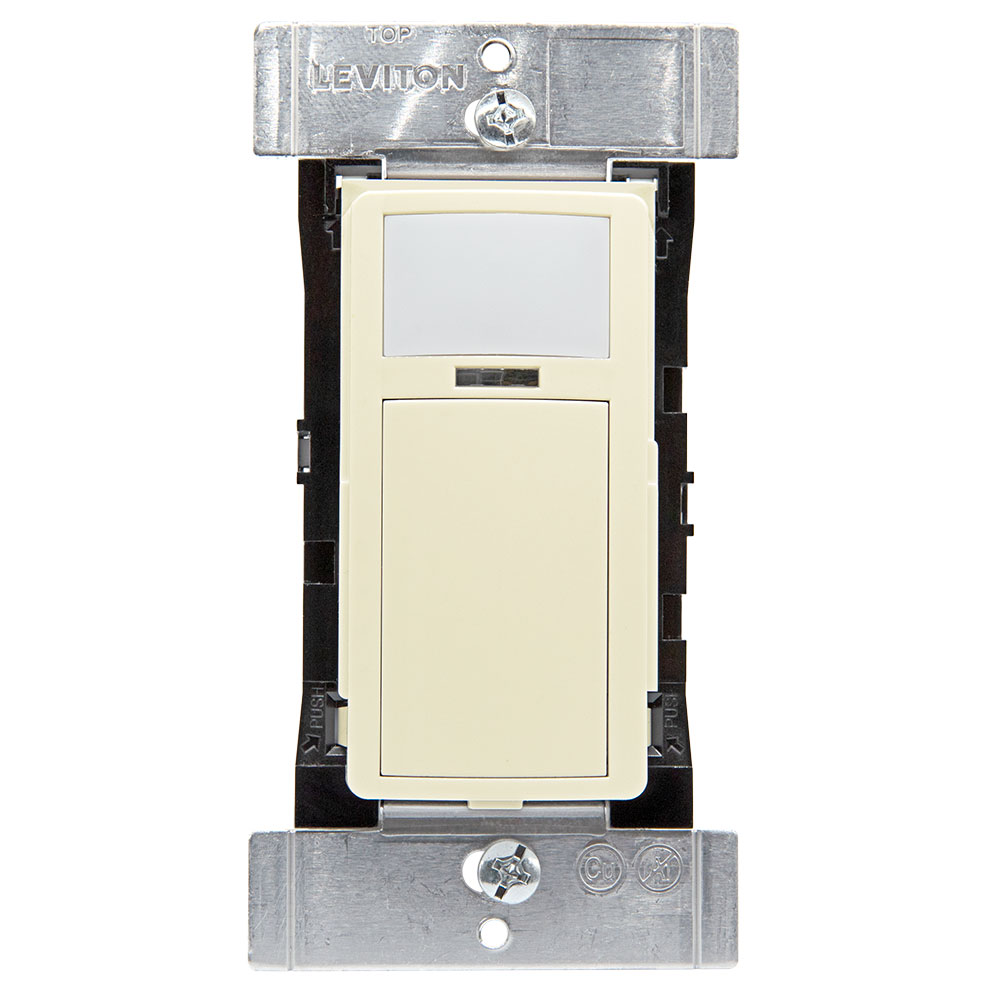

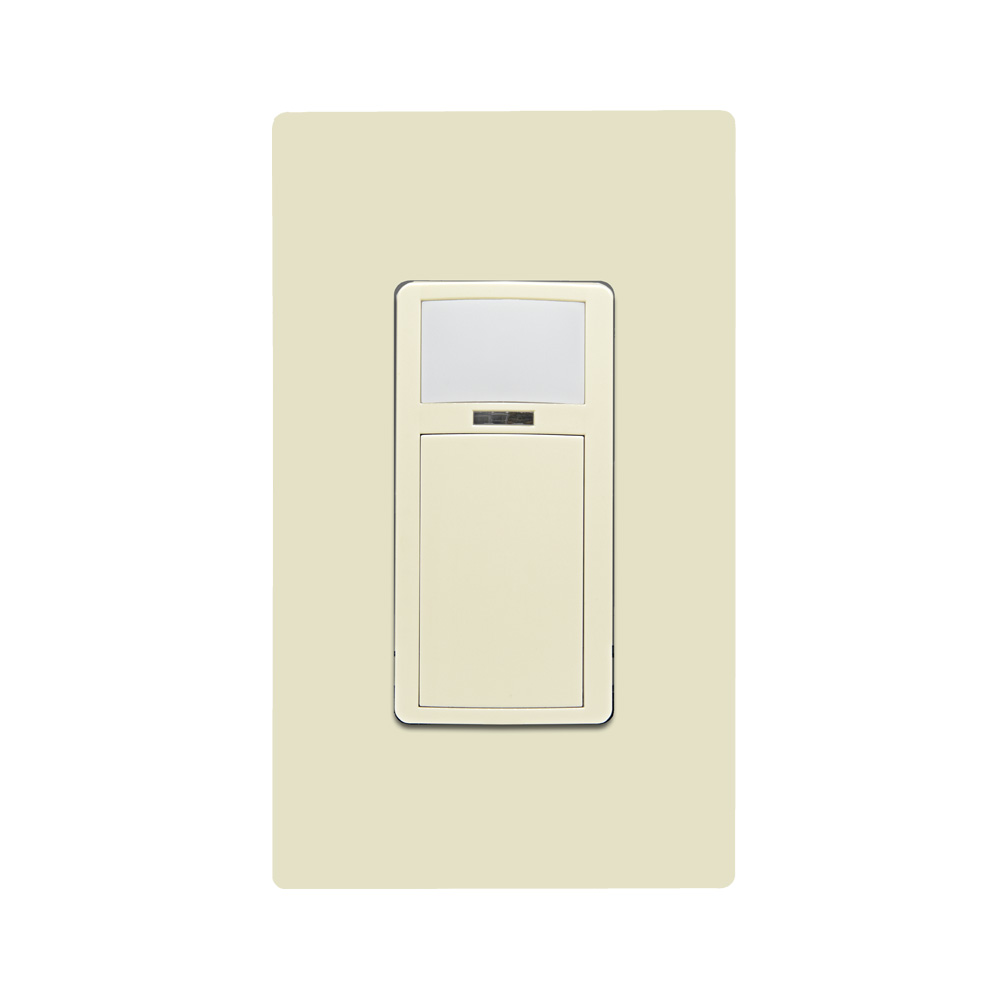

Smart Sensor, PIR, Wallbox Occupancy Sensor/Vacancy Sensor, App configurable, 120-277VAC, Commercial Grade, Ivory

• The Leviton Smart Sensor uses Passive Infrared (PIR) detection technology to monitor a room for occupancy using a segmented, tamper resistent lens. When a person passes in or out of a sensor zone, the sensor detects motion and switches the lights ON. The lights will remain ON as long as an occupant is moving through the sensor zones. The ODS15-Ixx ’s vacancy mode features a Manual-ON/Auto-OFF for installations where manual-ON switching is required for energy code applications. Configuration of ODS15-Ixx is made using the Leviton Smart Sensor App from a smartphone or other Bluetooth® enabled Android or iOS device. Simple configuration can also be applied using pushbutton setup for several popular preconfigured options. Ideal for non-residential and commercial spaces up to 1,100 SF including offices, meeting rooms, and lobbies. Do you have a question about an occupancy sensor or vacancy sensor? Contact us to learn more.
• Can be used to comply with IECC, ASHRAE 90.1, and 2019 Title 24, Part 6 occupancy/vacancy sensing and manual control requirements
• Fits in a standard wallbox and gangable with other units
• Controls General Purpose plug loads up to 20A and LED lighting loads up to 10A
• One relay module for single-level switching
• 180° field-of-view provides approximately 1,100 square feet of coverage
• Maximum sensing distance in front of the sensor is 30-40 feet and 15-20 feet on either side
• Advanced configuration can be performed using the Leviton Smart Sensor App on any Bluetooth enabled Android or iOS device: Set operating mode to Auto-ON/Auto-OFF or Manual-ON/Auto-OFF
• Adjust the sensitivity of the sensor to increase or decrease coverage area
• Adjust timeouts
• Activate the nightlight and select nightlight colors
• Add daylighting hold-off and select target daylighting levels
• Set a security code to lock configuration settings
• Out-of-the-box configuration default mode: Auto-ON/Auto-OFF with 10-minute time out
• Sensitivity set to 75%
• Nightlight and daylighting disabled

Color Variations

• Ivory
• White

• Country of Origin: China

Product Features

• Application: Small Offices, Lobbies, Small Meeting Rooms
• Color: Ivory
• Feature: App configurable
• Grade: Commercial
• Mounting: Wall Switch
• Product Line: ODS15
• Sensor Technology: Passive Infrared (PIR)
• Sensor Type: Occupancy / Vacancy

Standards and Certifications

• California Title 24: Yes
• Listings: IECC, UL and cUL listed, FCC, ICC
• Testing and Code Compliance: Can be used to comply with ASHRAE 90.1, IECC and Title 24, Part 6 occupancy/vacancy sensing and dimming requirements

Performance Specifications

• Coverage (Sq.Ft.): 1000
• Pattern: 180°

Electrical Specifications

• Frequency: 50/60Hz
• Input Current: 120V: Standby: 0.2W Max: 0.5W+Load Current - 277V: Standby: 0.3W Max: 0.6W+Load Current
• Load Rating: General Purpose @ 120V: 20A - General Purpose @ 277V: 20A - LED/Electronic Ballast @ 120V: 10A, - LED/Electronic Ballast @ 277V: 10A - Standard Ballast @ 120V: 10A - Standard Ballast @ 277V: 10A - Tungsten @ 120V: 6.67A - Tungsten @ 277V: 6.67A - Motor @ 120V: 1/4HP (FLA 5.8A) - Motor @ 277V: 1/3HP (FLA 3.0A)
• Neutral Wire Connection: Required
• Voltage: 120-277 VAC

Mechanical Specifications

• IP Rating: IP10
• Mounting Type: Wall Switch
• Size: Height 4.13" (104.9mm), Width 2.12" (53.95mm), Depth 1.86" (47.25mm), Install Depth 1.42" (36.22mm)
• Switch Type: Single-Pole

Environmental Specifications

• Storage Temperature Range: -40° to 185°F (-40° to 85°C)

Type

• Product Type: Smart Sensor

Warranty

• Warranty: 5-Year Limited
