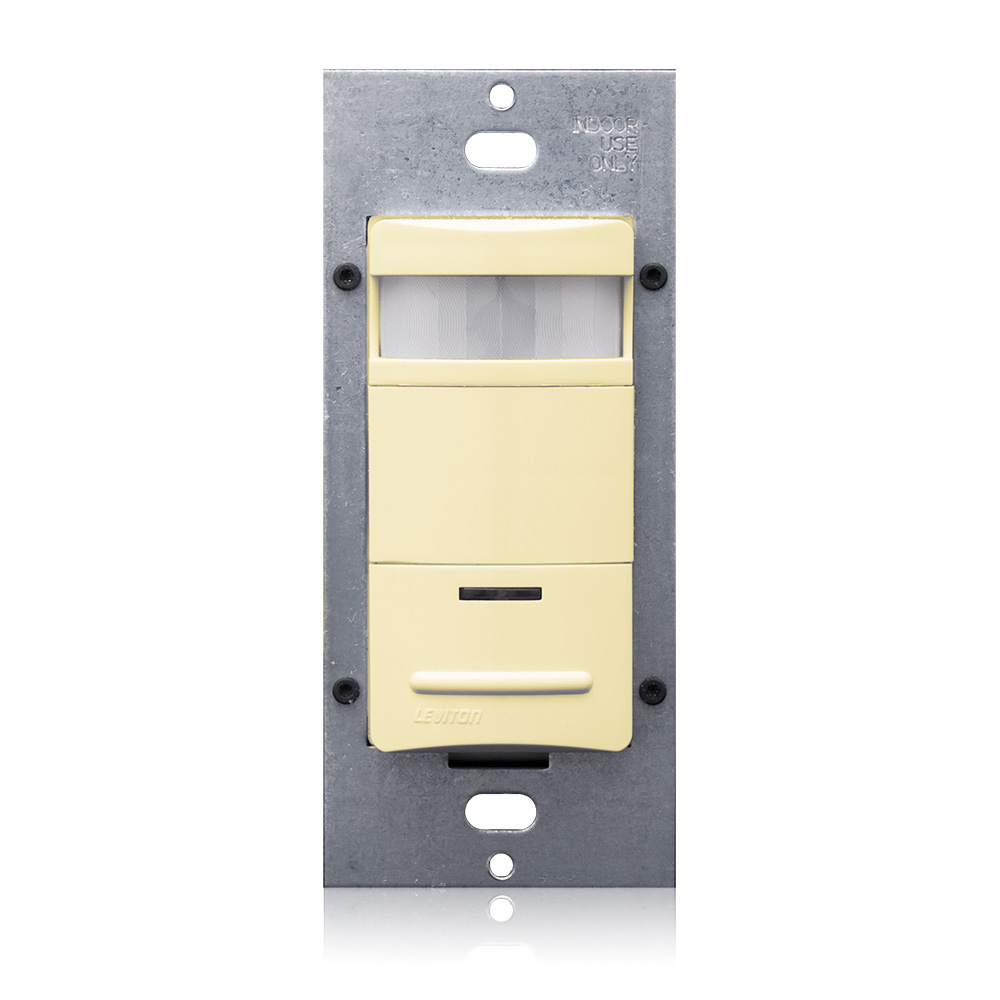

Vacancy Sensor, PIR, Wall Switch, 2100SF, 120-277V, Ivory, Self-Adaptive, Decora

• Do you have a question about an occupancy sensor or vacancy sensor? Contact us to learn more.

Patents

• US6031750

Color Variations

• Ivory
• Light Almond

• Country of Origin: Mexico

Product Features

• Adjustment: Self-Adjusting
• Application: Small offices, Private Restrooms, Storage areas, Conference rooms, Heavier loads, Lounges, Classrooms
• Code Compliance: California Title 24
• Color: Ivory
• Device Type: Vacancy Sensor
• Grade: Commercial
• LED Color: Red
• Mounting: Wall Switch
• Mounting Height (Ft.): 4 FT
• ON/OFF Configurations: Manual ON/Auto OFF
• Photocell: Internal
• Power Pack: External Power Pack Not Required
• Product Line: ODS15
• Sensor Technology: Passive Infrared (PIR)
• Sensor Type: Vacancy
• Time Delay: 30s-30m
• Wallplate: Order Separately

Standards and Certifications

• California Title 24: Yes
• Listings: UL/cUL Listed, can be used to comply with Title 24, Part 6 occupancy sensing requirements, complies with FCC Regulations, NYC L48, NOM
• Standards and Certifications: UL/cUL

Performance Specifications

• Coverage (Sq.Ft.): 2100.0
• Pattern: 180°

Electrical Specifications

• Frequency: 50/60Hz
• Load Rating: Fluorescent: 1800VA @ 120V 4000VA @ 277V - Incandescent: 1800W @ 120V Motor: 1/4 HP @ 120V
• Motor: 1/4 HP @ 120V
• Neutral Wire Connection: Not Required
• Power Consumption: 120V - 120mW; 277V - 280mW
• Voltage: 120/230/277 VAC
• Wiring: Line-Black, Load-Blue, Ground-Green, No Neutral Required

Mechanical Specifications

• Mounting Type: Wall Switch
• Size: Height 4.06" (103.2mm), Width 1.75" (44.4mm), Depth 1.85" (47.2mm)
• Switch Type: Single-Pole

Environmental Specifications

• Operating Temperature: 32° to 122°F (0° to 50°C)
• Relative Humidity: 20% to 90% non-condensing
• Storage Temperature Range: 14° to 185°F (-10° to 85°C)

Type

• Product Type: Vacancy Sensor

Warranty

• Warranty: 5-Year Limited
