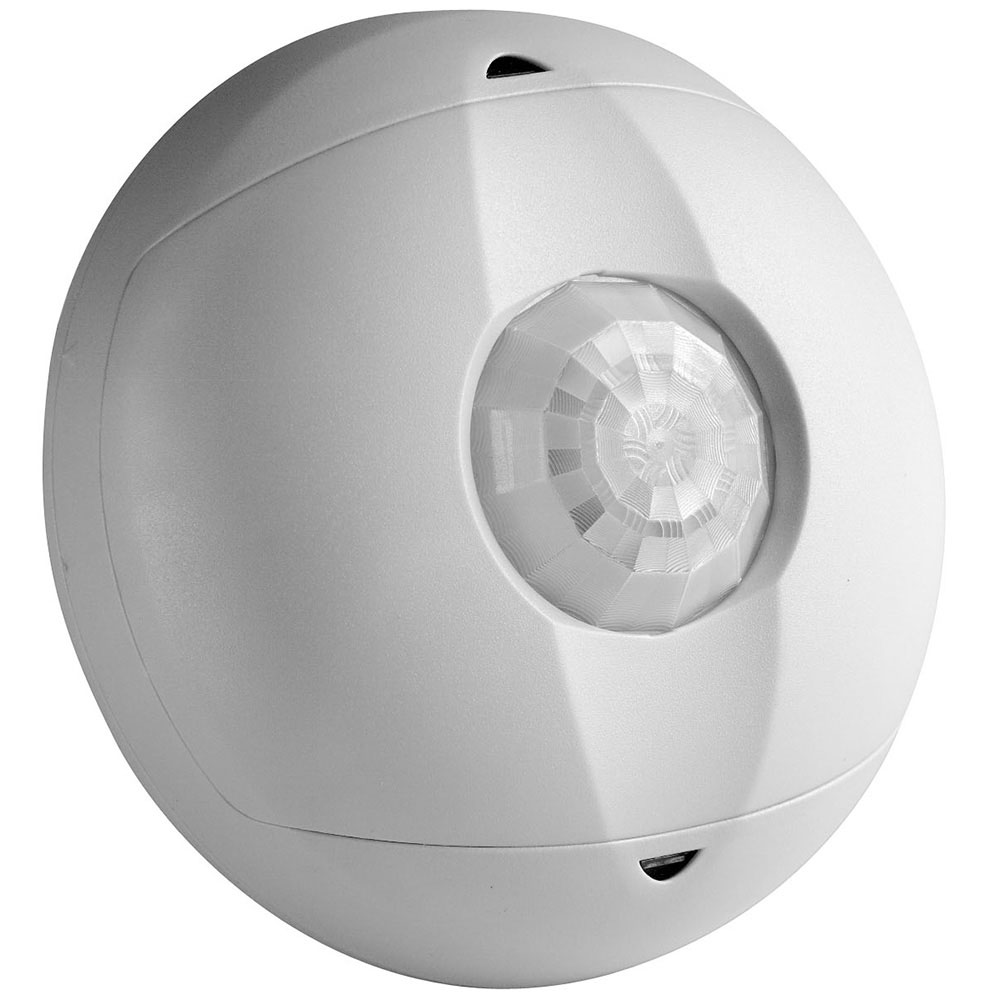

Occupancy Sensor, PIR, Ceiling Mount, 450SF, White

• The all-digital & microprocessor based OSCXX-I is the most advanced infrared ceiling sensor available. Self-calibrating sensitivity and timer allow the installer to “install & forget.” Do you have a question about an occupancy sensor or vacancy sensor? Contact us to learn more.
• Small Size: Installed sensor appears almost invisible.
• Fast Simple Installation: Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment.
• Accurate, Consistant Switching: Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated.
• Self-Adapting: An internal microprocessor continually analyzes, evaluates and adjusts settings. Performance is kept at a maximum and user complaints are eliminated.
• Maximum Reliability, Low Cost: All digital circuitry uses a minimum of components.
• Non-Volatile Memory: Learned and adjusted settings saved in protected memory. Power outages will not cause status loss.
• Ambient Light Recognition: The photocell prevents lights from turning on when room is adequately lit by natural light.
• Excellent Warranty: 5-Year Limited warranty.
• Typical Applications: Closet, Copy Room, Small Office, Storage Room, Lounge, Non-Partitioned Restroom or Vending Room

Patents

• CA122496
• US7800049
• US8312347
• USD588484

Color Variations

• White

Electrical Specifications

• Voltage: 24 VDC

Material Specifications

• Color: White

Mechanical Specifications

• Coverage (Sq.Ft.): 450

Product Features

• Product Line: OSC04
• Sensor Type: Ceiling Mount
• Technology: Passive Infrared

Standards and Certifications

• Title 24 Compliant: Yes
