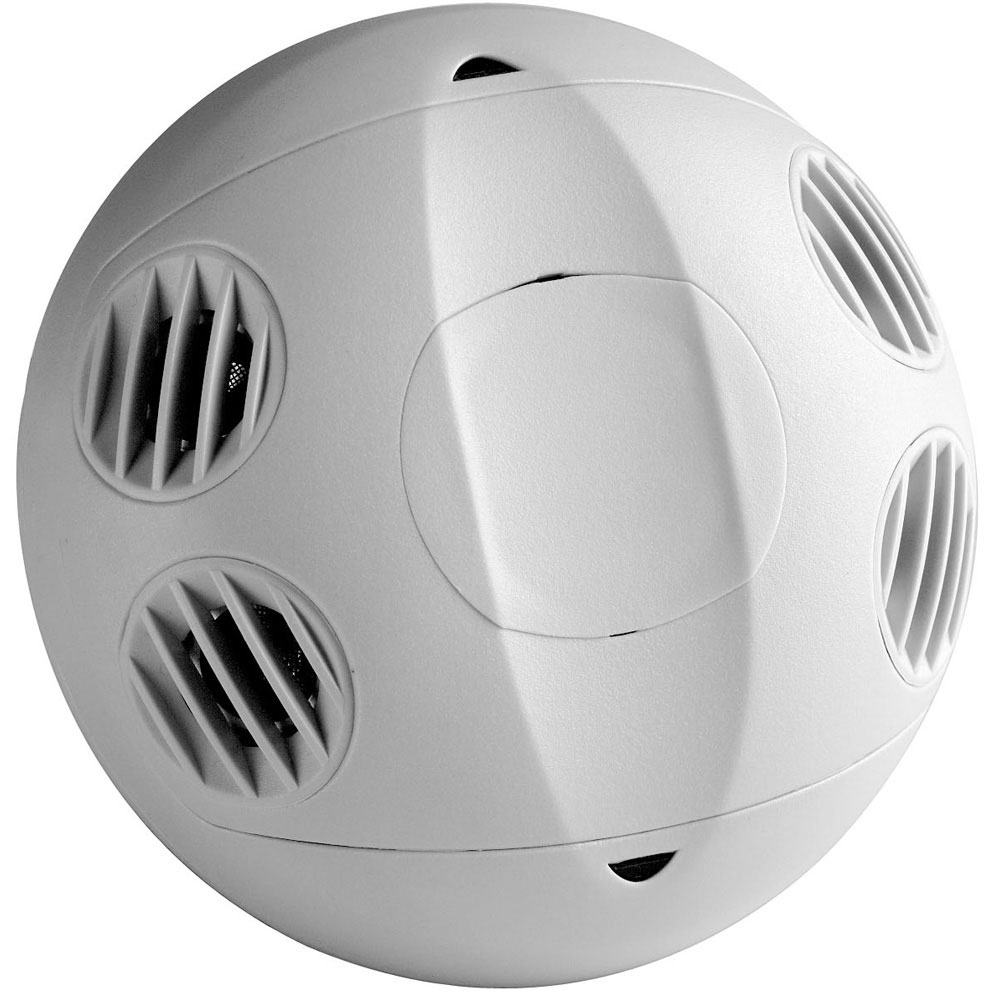

Occupancy Sensor, Ultrasonic, Ceiling Mount, 1000SF, White

• Microprocessor based, the OSCXX-U has a self adapting feature that compensates for air flow, giving it excellent immunity to air currents and other interference. Do you have a question about an occupancy sensor or vacancy sensor? Contact us to learn more.
• Small Size: Installed sensor appears almost invisible.
• Fast Simple Installation: Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment.
• Accurate, Consistant Switching: Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated.
• Self-Adapting: An internal microprocessor continually analyzes, evaluates and adjusts settings. Performance is kept at a maximum and user complaints are eliminated.
• Maximum Reliability, Low Cost: All digital circuitry uses a minimum of components.
• Non-Volatile Memory: Learned and adjusted settings saved in protected memory. Power outages will not cause status loss.
• Ambient Light Recognition: The photocell prevents lights from turning on when room is adequately lit by natural light.
• Excellent Warranty: 5-Year Limited warranty.
• Typical Applications: Cafeteria, Computer Room, Office w/Cubicles, File Room, Partitioned Restroom, Warehouse Open Area, Work Space General, Workout Facility, Gymnasium, or Hallway

Patents

• CA115944
• CA122495
• MX24023
• US7800049
• USD561630
• USD573053

Color Variations

• White

Material Specifications

• Color: White

Mechanical Specifications

• Coverage (Sq.Ft.): 1000

Product Features

• Product Line: OSC10
• Sensor Type: Ceiling Mount
• Technology: Ultrasonic

Standards and Certifications

• Title 24 Compliant: Yes

Electrical Specifications

• Voltage: 24 VDC
