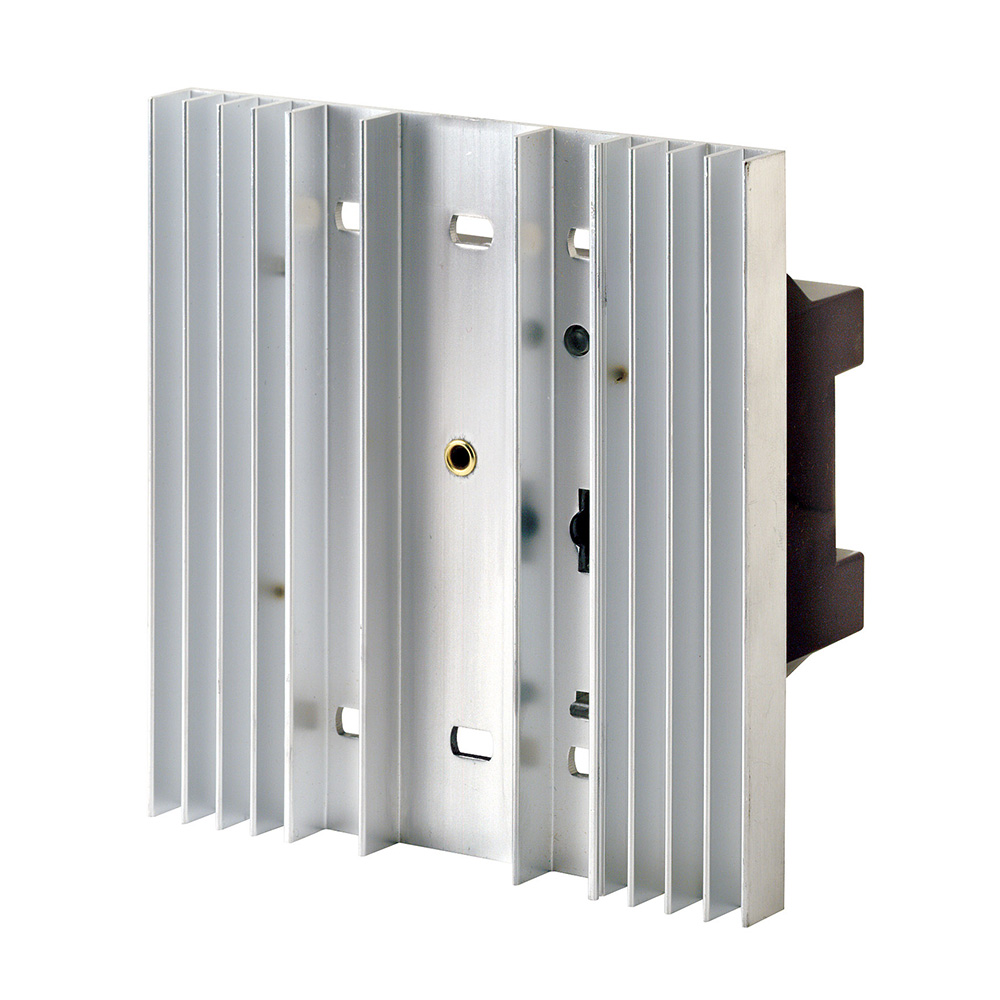

Power Extender, Mark 10 Powerline and Hi-lume, 3000VA at 277VAC

• Leviton’s PE200-7 Power Extender allows a dimming zone’s power handling capacity to be extended to a full 3000VA on 277V input power. The PE200-7 will drive 277V Advance Mark X or equivalent dimmable fluorescent ballasts.

• Country of Origin: Mexico

Product Features

• Color: White
• Control Input: 120 Volt 50/60Hz
• Device Type: Power Extender
• Load Output: Phase Independent of Control Device
• Load Rating: 3000VA
• Load Type: Advance Mark X or equivalent fluorescent
• Notes: If dimmer has a Neutral wire it must be connected.
• Product Category: System or Network
• Product Line: Power Extenders
• Product Type: Power Extender
• Standards and Certifications: UL/CSA
• Warranty: 2-Year Limited

Electrical Specifications

• Voltage: 277 VAC
• Wattage Per Channel: 3000

Application Note

Instruction Sheet
