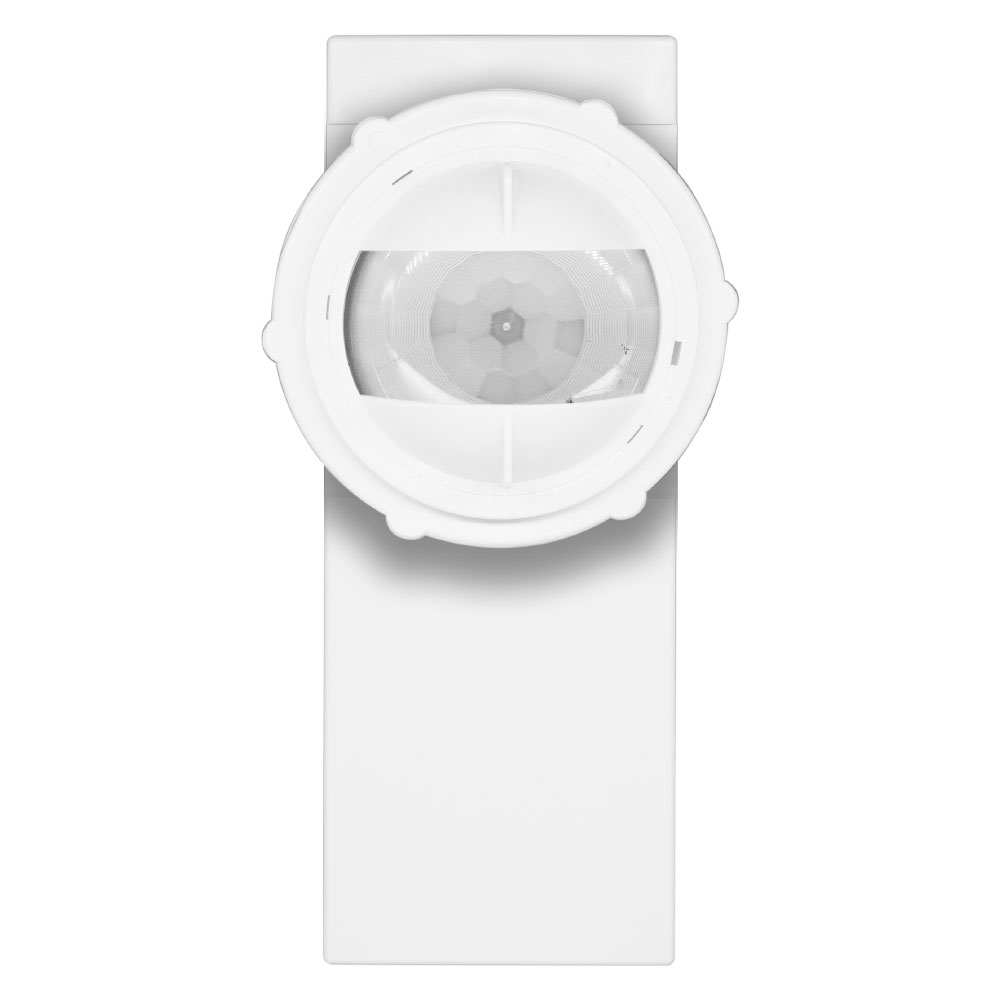

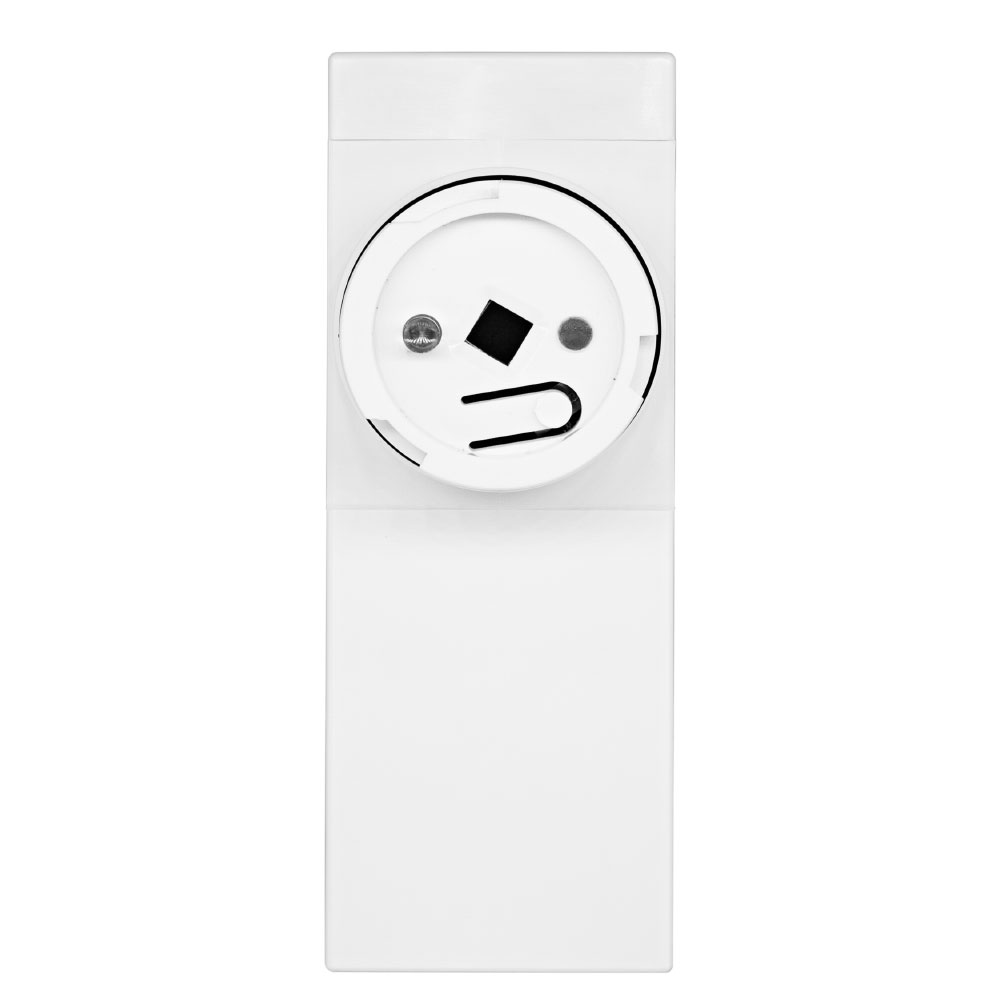

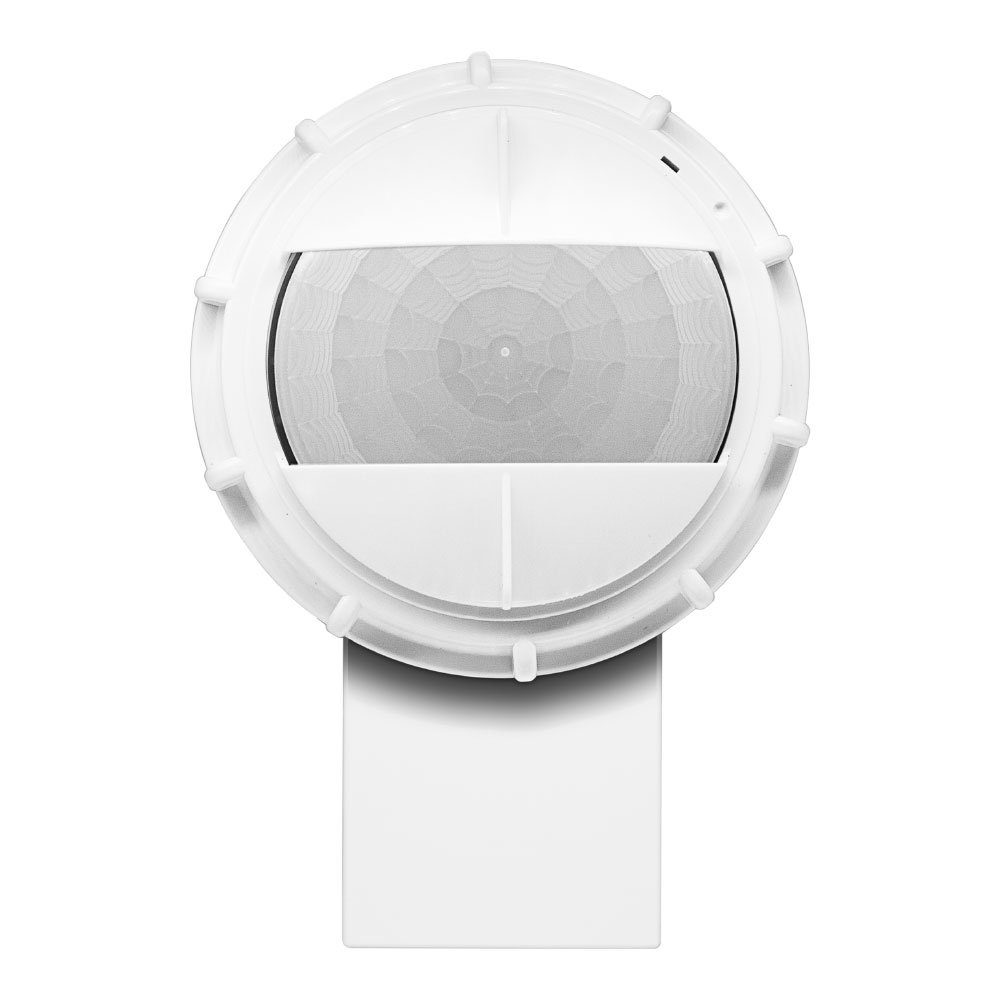

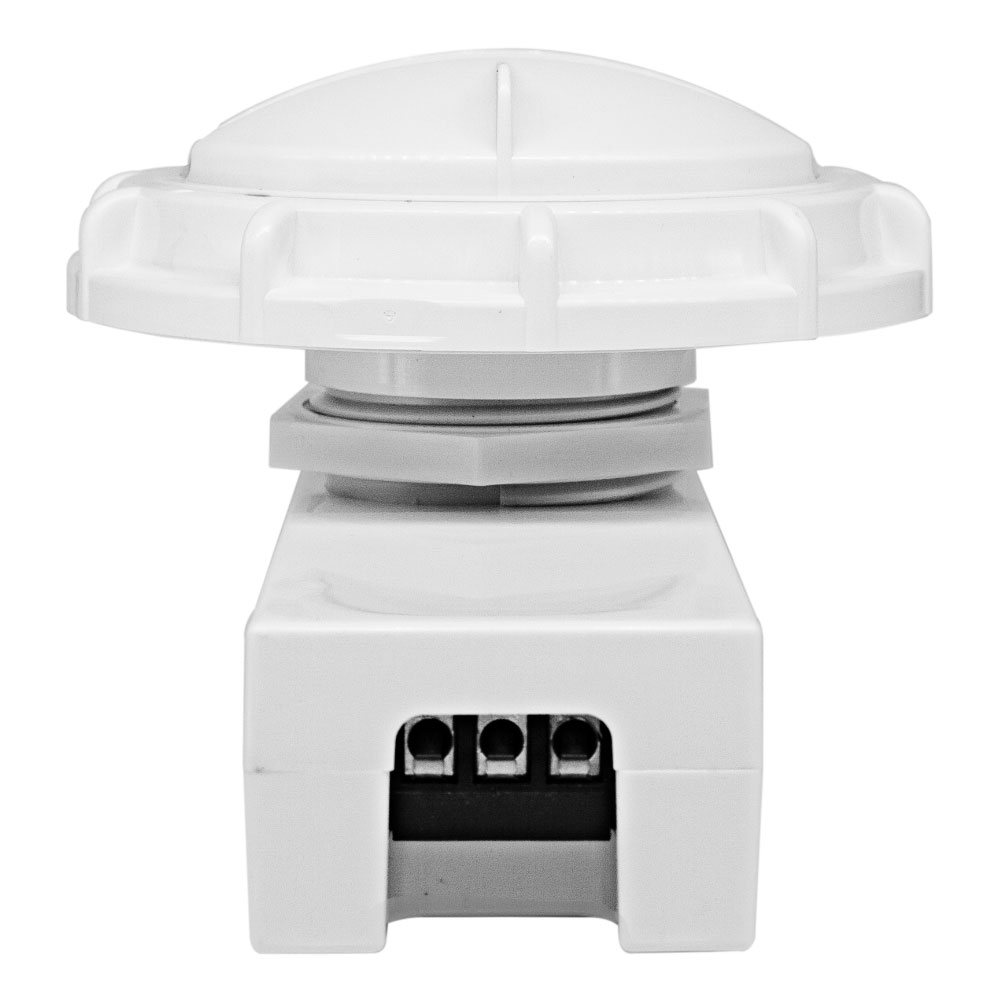

Smart Sensor with Photocell, Light Fixture Integrated, PIR, Occupancy Sensor, 120-277VAC, 50/60 Hz, 8-20 FT and 20-40 FT Lens Included, Bluetooth Connectivity, Bulk Pack 25 per Case

• Leviton Smart IP66 Passive Infrared (PIR) Integrated Fixture Mount Sensors are designed for use with switching or 0-10V LED dimming drivers, and fluorescent ballasts. The sensors use PIR detection technology and advanced optics to provide an exceptional Field-of-View (FOV) for mounting heights from 8-40 ft. The sensors detect motion and turn lights ON when an occupant passes in or out of a sensor zone. The lights remain ON as long as the occupant moves through the sensor zones and after throughout the timeout period. The sensor uses a minor motion feature to detects small body movements which allows the lights to stay ON when individuals in the space are nearly stationary. The major motion feature exhibits a lesser degree of sensitivity requiring larger movements. Configuration is made using the Leviton Smart Sensor App from a smartphone or other Bluetooth ® -enabled Android or iOS device.
• Can be used to comply with IECC, ASHRAE 90.1, and 2019 Title 24, Part 6 occupancy/vacancy sensing and dimming requirements
• IP66 rated (when installed in an appropriate IP66 rated enclosure/fixture)
• 120-277V Models
• 120-277VAC 1-pole
• Universal voltage models120-347VAC 1-pole
• 208-480VAC 2-pole
• Mesh grouping16 devices per group
• Occupancy
• Daylighting
• Scheduling - Universal voltage models only
• Weekly scheduling
• Time clock or astronomical clock
• Change level, operating mode, daylight mode
• Models without the integral scheduling feature can be part of a group with scheduling
• Controls LED lighting loads up to 6.7A
• Single-level switching
• Occupancy mode:
• Disabled (Photocell only)
• Auto-ON/Auto-OFF
• 360° field-of-view provides up to 8,250 square feet of coverage 8-20 ft. and 20-40 ft. lenses plus aisle way masks included

• Country of Origin: China
• RoHS Compliant: Yes

Product Features

• Application: Warehouses|Loading bays|Outdoor Lighting|Parking garages|Gymnasiums|Libraries|High-bay|Wet Location
• Commissioning: App Enabled
• Mounting: Integrated into Light Fixture
• Product Line: Smart Sensors
• Sensor Technology: Passive Infrared (PIR)
• Sensor Type: Occupancy / Vacancy

Electrical Specifications

• Dimming Technology: 0-10VDC
• Frequency: 50/60Hz
• Load Rating: See Product Specification/Data Sheet
• Voltage: 120-277 VAC

Mechanical Specifications

• Color: White
• Grade: Commercial
• IP Rating: IP66 (Type 3R)
• Mounting Type: Light Fixture Integrated
• Sensor Mounting Configuration: Internal
• Size: Width: 1.39” (35.3 mm) Length: 3.75” (95.3 mm) Depth: 0.91” (23 mm)

Standards and Certifications

• Listings: Can be used to comply with IECC, ASHRAE 90.1, and 2019 Title 24, Part 6 occupancy/vacancy sensing and dimming requirements

Environmental Specifications

• Environment: Indoor/Outdoor
• Operating Temperature: -40°C to 75°C
• Relative Humidity: 0% to 90% non-condensing
• Storage Temperature Range: -40° to 185°F (-40° to 85°C)

Performance Specifications

• Pattern: 360°

Type

• Product Type: Smart Sensor with Photocell

Warranty

• Warranty: 5-Year Limited
